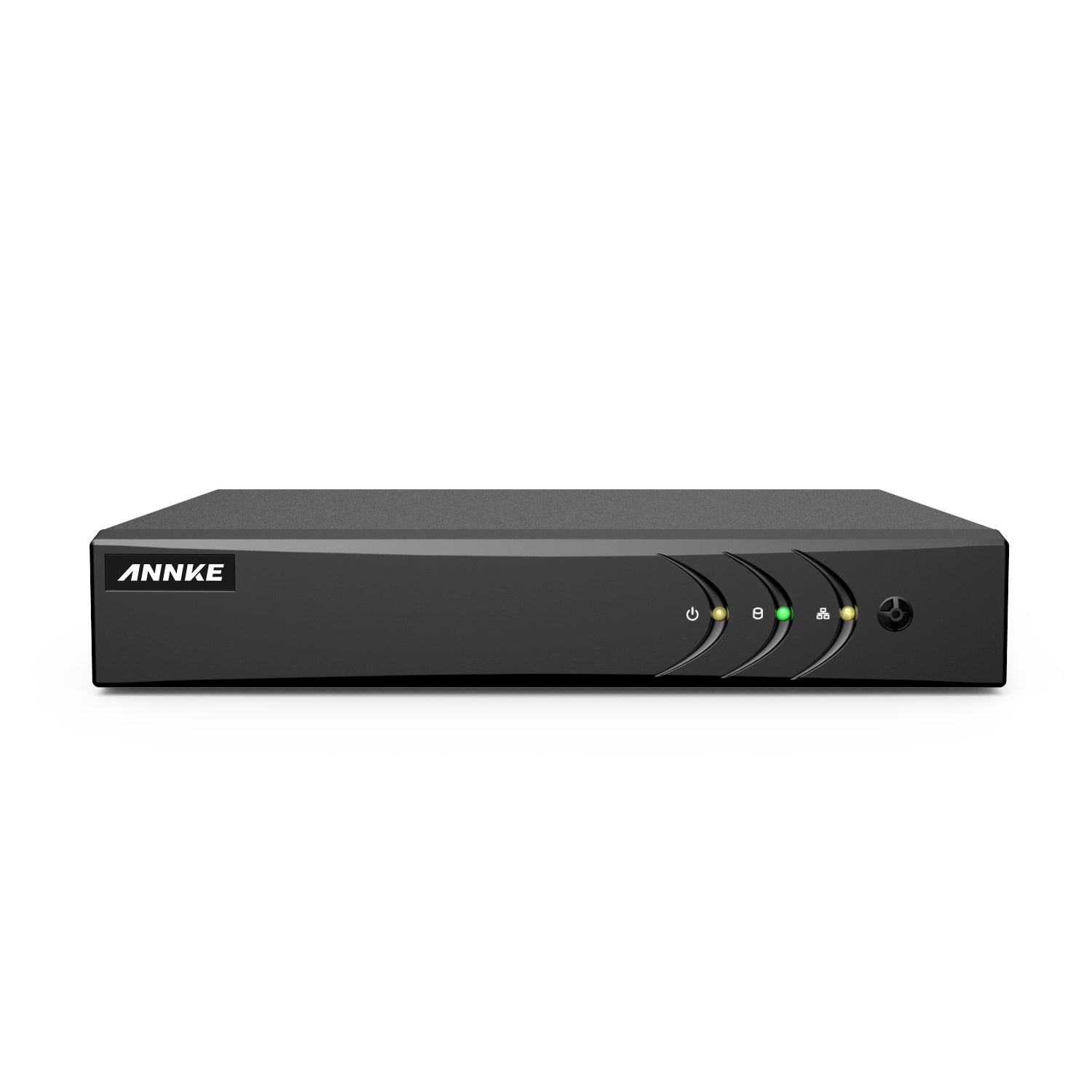

5MP 4 Channel Hybrid 5-in-1 CCTV Digital Video Recorder, H.265+, Supports up to 4 BNC Cameras & One IP Camera

5MP 4 Channel Hybrid 5-in-1 CCTV Digital Video Recorder, H.265+, Supports up to 4 BNC Cameras & One IP Camera

$59.99

$69.99

SKU: DW41JD

HDD Capacity
Note: NC400 are now on 35% off DOTW sale with code DOTW02.

Secure Checkout With:

  • Tags: 4CH DVR , 5MP

    State-Of-The-Art H.265+ Code

    Normally, the H.265+ coding standard enables fast transmission and stable stream, records up to 98 days continuously for 4 cameras simultaneously with 1TB HDD, which is 7 times longer than H.264, without buying extra hard disk drives.

    Up to 5MP Super HD Input

    The DVR supports 5MP cameras to provide you with 5MP live view and 2.5MP recording, bring everything to life with stunning and clear details, even the license plate can be recognized easily. (Note: The 5MP DVRs support up to 5MP TVI cameras, 4MP AHD & CVI cameras, and CVBS & IP cameras)

    Compatible 5-in-1 DVR

    This powerful DVR supports up to 4CH TVI/AHD/CVI/CVBS and 1 IP cameras simultaneously, thus you make full use of all your old cameras or brand new cameras for wide coverage. Clear off blind spot and leave nowhere for thieves and robbers to hide

    Smart Motion-Triggered Alerts

    Mark out relevant areas for motion detection, you can focus on what you care about most and free from irrelevant alerts. Once an alarm is triggered, it will send instant email alerts with snapshots and APP alarm pushes, so you can take appropriate precautions

    Easy 3-Step Remote Access

    Consolidating the security system into your smartphone, tablet and PC can be quite simple with our free Annke Vision APP. Quick scan the QR-code, install it on your mobile devices and then you can watch live video anytime from anywhere.

    Multi-Language Operation

    Both DVR menu and APP support multi-language operation, no worry about maloperation caused by difficulties in languages. It is much more convenient to keep your home and business safe via surveillance system with your familiar language.

    Save Time with Smart Playback

    The smart playback offers you video with movements in selected areas and periods. Thus you don’t have to waste time checking footage frame by frame. It is much easier to find what you need in the records.

    Information Security Measures

    Adopted information protection technology of military grade, your data is on our top priority and well-protected. Therefore, you could set the password and encryption code for access restrictions, avoiding access open to everyone like other brands.

    1080P Full HD HDMI & VGA Output

    The DVR supports HDMI and VGA 1080P full-HD outputs, so you can connect an HD monitor to it for live viewing and video playback. Default HDMI/VGA output resolution is 1024*768, please adjust it manually for higher resolution.



    Specification

     Download ANNKE 5MP DVR Specification

    Video & Audio
    Video CompressionH.264+/H.264/H.265/H.265+ Video OutputHDMI and VGA Up to 1080P
    8CH Analog HD/Analog+2CH IP camera

    Analog HD Recording ResolutionFor 5 MP stream access: 5MP Lite/3MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps
    For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
    For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
    Audio Input/Output1/1 RCA Analog HD Playback Resolution5MP Lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF
    IPC Recording ResolutionUp to 6MP IPC Playback ResolutionUp to 6MP
    4CH ProtocolsSupport
    Video CompressionH.264+/H.264/H.265/H.265+
    4CH Analog HD/Analog+2CH IP camera
    Audio Input/Output1/1 RCA
    IPC Recording ResolutionUp to 6MP
     4CH
    Video OutputHDMI and VGA Up to 1080P
    Analog HD Recording ResolutionFor 5 MP stream access: 5MP Lite/3MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps
    For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
    For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
    Analog HD Playback Resolution5MP Lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF
    IPC Playback ResolutionUp to 6MP
    ProtocolsSupport
    Hard Drive
    HDD1 SATA interface HDD CapacityUp to 6TB capacity
    HDD1 SATA interface
    HDD CapacityUp to 6TB capacity
    General
    Network interfaceRJ45x1(10/100M) Working Condition-14 °F – 131 °F /-10 °C – 55 °C
    BNC Output Alarm Input/Output
    RS485 USBUSB2.0x2
    Operating PowerDC12V Dimensions(W x H x D)260 × 222 × 45 mm
    Weight (without hard disk)≤ 1 kg (2.2 lb)(without HDD)
    Network interfaceRJ45x1(10/100M)
    BNC Output
    RS485
    Operating PowerDC12V
    Weight (without hard disk)≤ 1 kg (2.2 lb)(without HDD)
    Working Condition-14 °F – 131 °F /-10 °C – 55 °C
    Alarm Input/Output
    USBUSB2.0x2
    Dimensions(W x H x D)260 × 222 × 45 mm
