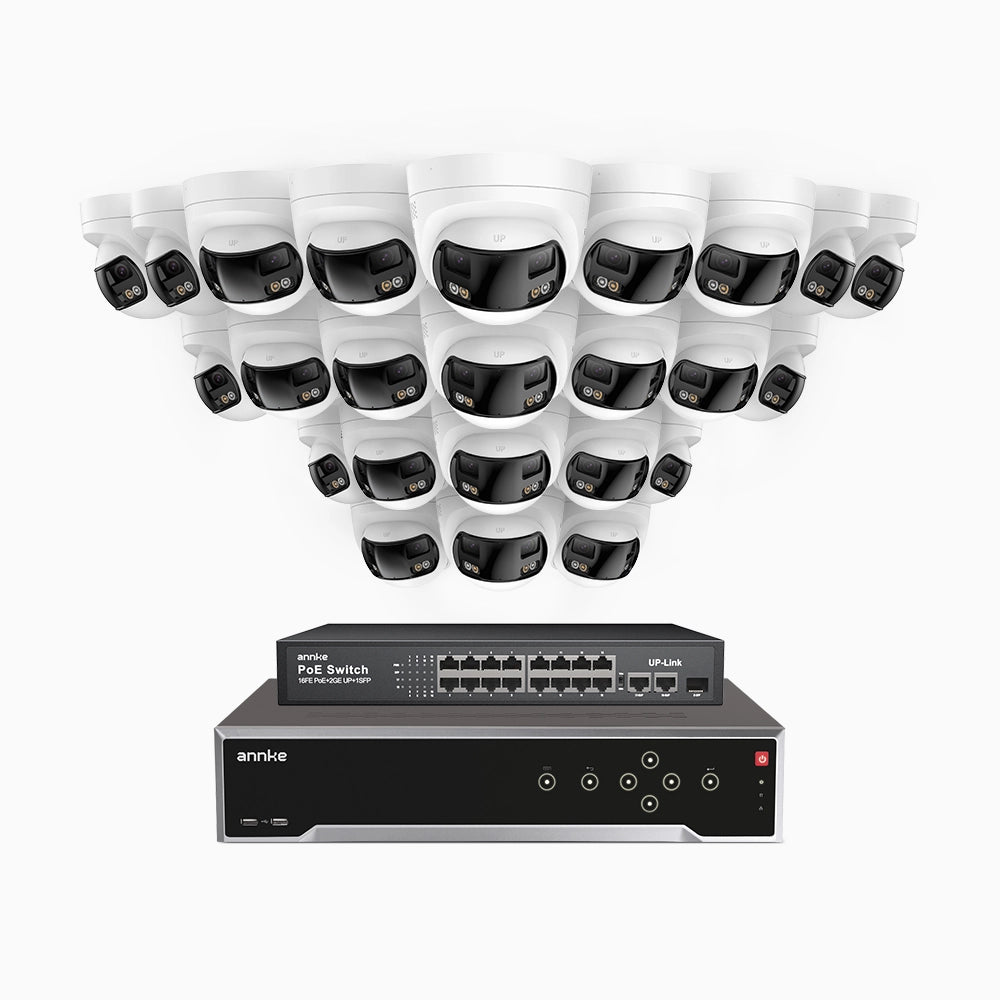

FDH800 - 4K 32CH PoE Security System with 24 Seamless Dual-Lens Cameras, 77° Vertical FOV, 180° Panoramic Coverage, Smart Color Night Vision & Active Deterrence, Two-Way Audio
FDH800 - 4K 32CH PoE Security System with 24 Seamless Dual-Lens Cameras, 77° Vertical FOV, 180° Panoramic Coverage, Smart Color Night Vision & Active Deterrence, Two-Way Audio

FDH800 - 4K 32CH PoE Security System with 24 Seamless Dual-Lens Cameras, 77° Vertical FOV, 180° Panoramic Coverage, Smart Color Night Vision & Active Deterrence, Two-Way Audio

SKU: N931BB+I91ET*24+JHJ014
$3,087.99
$3,087.99
$3,859.99
Appearance: Turret
HDD Capacity: NO HDD
Ask An Expert
Subtotal: $3,087.99
Description

Seamless Dual-Lens Stitching for a True 180° Panoramic View

Unlike traditional panoramic cameras that often suffer from visible stitching, distortion, and uneven images, the ANNKE FCD800 uses advanced seamless stitching to deliver a smooth, natural 180°(H) × 77°(V) panoramic view. Its dual-lens design provides continuous wide-angle coverage with virtually no blind spots, making it ideal for monitoring driveways, front yards, parking lots, and other large outdoor areas with exceptional clarity.

4K Ultra HD Detail Capture with Dual BSI Sensors

Equipped with dual 1/2.4" BSI sensors and dual 2mm F1.6 lenses, the ANNKE FCD800 captures a crystal-clear 4096 × 1860 panoramic image with outstanding brightness, vivid colors, and enhanced low-light performance. Monitor larger areas with fewer blind spots while keeping important details, from faces to license plates, sharp and clear—even when digitally zooming in.

Hear, Speak, and Respond in Real Time

Stay connected to your property wherever you are with built-in two-way audio. The integrated microphone and speaker allow you to hear what's happening and communicate directly through the ANNKE Vision App. Whether greeting visitors, guiding delivery personnel, or warning unwanted guests, you can respond instantly and maintain control even when you're away from home.

Smart Dual-Light Night Vision That Adapts to Every Situation

Featuring intelligent Dual-Light technology, the FCD800 seamlessly combines infrared and adaptive white light for reliable day and night protection. Infrared LEDs provide discreet night vision, while motion-triggered warm lights automatically switch on for vivid full-color recording with enhanced detail. Ideal for driveways, entrances, and backyards, it captures critical nighttime events with greater clarity and confidence.

Detect Accurately. Respond Instantly.

Powered by ANNKE Motion Detection 2.0 and advanced deep-learning technology, the IP camera accurately identifies people and vehicles while filtering out irrelevant motion events. With fewer false alarms, instant app notifications, and active deterrence features, it helps you stay informed and respond quickly to potential threats.

Human & Vehicle Detection

Advanced AI-powered analytics accurately identify humans and vehicles while filtering out non-threatening movement. Receive alerts only when meaningful activity is detected, reducing unnecessary notifications and improving overall monitoring efficiency.

99% Detection Accuracy

Powered by deep-learning technology, Motion 2.0 continuously improves detection precision to achieve up to 99% accuracy. Whether monitoring driveways, entrances, or outdoor spaces, the system helps minimize false alarms and ensures critical events are never overlooked.

Sound & Light Active Deterrence

When suspicious activity is detected, the built-in spotlight and siren can be triggered automatically to warn intruders before incidents escalate. At the same time, instant push notifications are sent directly to the ANNKE Vision App, allowing you to stay informed and respond immediately from anywhere.

ANNKE FCD800 human and vehicle detection visual

Reliable Protection in Any Weather

With its rugged IP67-rated design, the FCD800 is built to withstand rain, dust, wind, and extreme temperatures. Engineered for dependable outdoor performance, it continues protecting your property day and night through changing seasons and challenging weather conditions, providing peace of mind all year round.

  • -22 °F | -30 °CCold Rating
  • Metal & ABSRugged Housing
  • 140 °F | 60 °CHot Rating
  • IP67Water Rating

Essential Features for Everyday Security

  • Local Storage & NVR Integration

    Store footage your way with up to 512GB microSD storage or seamless NVR integration. Flexible recording options for every security setup.

  • H.265+ Compression

    Advanced H.265+ compression reduces bandwidth and storage usage while maintaining outstanding image quality for longer, more efficient recording.

  • Remote Access Anywhere

    Stay connected with the ANNKE Vision App. View live video, playback recordings, receive instant alerts, and manage your cameras anytime, anywhere.

  • PoE Plug & Play Installation

    Simplify installation with PoE technology. A single Ethernet cable delivers both power and data for a faster, cleaner, and more reliable setup



Specifications

Download FCD800 Specification

What's in the Box
  • 1X IP Camera
  • 1X Surveillance Sign
  • 1X 1m Network cable
  • 1X Waterproof connector
  • 1X Mounting Screws Bag
  • 1X User's Manual For Camera
    • Camera
    Image sensor2×1/2.4" Progressive Scan CMOS Max resolution4096 x 1860
    Main Stream50 Hz: 20 fps (4096 x 1860)
    60 Hz: 20 fps (4096 x 1860)     		 Sub Stream50 Hz：20 fps（1200 × 536, 960 × 432）
    60 Hz：20 fps（1200 × 536,960 × 432）
    Video Bit Rate32 Kbps to 16 Mbps Built-in MicrophoneBuilt-in Microphone, record with audio
    Video compressionMain Stream: H.265+/H.265/H.264+/H.264
    Sub Stream: H.265/H.264/MJPEG    		 Network ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPV4, IPV6, IGMP, UDP, QoS, FTP, SMTP
    Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC Built-in SpeakerYes, max. sound pressure: 10 cm: 97 dB
    Lens Dual lens: 2.8 mm Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON)
    Angle of ViewHorizontal FOV: 180°, Vertical FOV: 77° Supplement Light TypeSmart light, white light, IR light
    Supplement Light RangeWhite light up to 30 m, IR light up to 30m Motion detection 2.0Supoort, include human & vehicle detection
    Image Parameters SwitchYes Image EnhancementBLC, HLC, 3D DNR
    Wide Dynamic Range120dB WDR APISupport Open Network Video Interface protocol, version 19.12
    Basic EventMotion detection (support human and vehicle detection), video tampering, exception detection Audio AlarmSupport(Parameters adjustable,support custom audio, can be triggered from APP)
    Flashing AlarmWhite light, frequency adjustable, can be triggered from APP Region of Interest (ROI)1 fixed region for main stream
    Privacy Mask4 programmable polygon privacy masks General FunctionRotate, remote access, IP Address Filter
    Image sensor2×1/2.4" Progressive Scan CMOS
    Max resolution4096 x 1860
    Main Stream50 Hz: 20 fps (4096 x 1860)
    60 Hz: 20 fps (4096 x 1860)
    Sub Stream50 Hz：20 fps（1200 × 536, 960 × 432）
    60 Hz：20 fps（1200 × 536,960 × 432）
    Video Bit Rate32 Kbps to 16 Mbps
    Built-in MicrophoneBuilt-in Microphone, record with audio
    Video compressionMain Stream: H.265+/H.265/H.264+/H.264
    Sub Stream: H.265/H.264/MJPEG
    Network ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPV4, IPV6, IGMP, UDP, QoS, FTP, SMTP
    Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
    Built-in SpeakerYes, max. sound pressure: 10 cm: 97 dB
    Lens Dual lens: 2.8 mm
    Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON)
    Angle of ViewHorizontal FOV: 180°, Vertical FOV: 77°
    Supplement Light TypeSmart light, white light, IR light
    Supplement Light RangeWhite light up to 30 m, IR light up to 30m
    Motion detection 2.0Supoort, include human & vehicle detection
    Image Parameters SwitchYes
    Image EnhancementBLC, HLC, 3D DNR
    Wide Dynamic Range120dB WDR
    APISupport Open Network Video Interface protocol, version 19.12
    Basic EventMotion detection (support human and vehicle detection), video tampering, exception detection
    Audio AlarmSupport(Parameters adjustable,support custom audio, can be triggered from APP)
    Flashing AlarmWhite light, frequency adjustable, can be triggered from APP
    Region of Interest (ROI)1 fixed region for main stream
    Privacy Mask4 programmable polygon privacy masks
    General FunctionRotate, remote access, IP Address Filter
    General
    HousingMetal&Plastic, white color Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    Operating PowerPoE (802.3af)，max 11.5W,
    12 VDC ± 25%,Ø 5.5 mm coaxial power plug, max 10W    		 StorageBuilt-in micro SD/SDHC/SDXC slot, up to 512 GB
    Hardware ResetYes Operating Temperature-22 °F – 140 °F /-30 °C – 60 °C
    Indoor/OutdoorIndoor/Outdoor Weatherproof RatingIP67
    Dimension (L x W x H)103.6 mm × 76 mm × 234.5 mm (4.1" × 3.0" × 9.2") WeightApprox. 560 g (1.2 lb.)
    HousingMetal&Plastic, white color
    Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    Operating PowerPoE (802.3af)，max 11.5W,
    12 VDC ± 25%,Ø 5.5 mm coaxial power plug, max 10W
    StorageBuilt-in micro SD/SDHC/SDXC slot, up to 512 GB
    Hardware ResetYes
    Operating Temperature-22 °F – 140 °F /-30 °C – 60 °C
    Indoor/OutdoorIndoor/Outdoor
    Weatherproof RatingIP67
    Dimension (L x W x H)103.6 mm × 76 mm × 234.5 mm (4.1" × 3.0" × 9.2")
    WeightApprox. 560 g (1.2 lb.)
