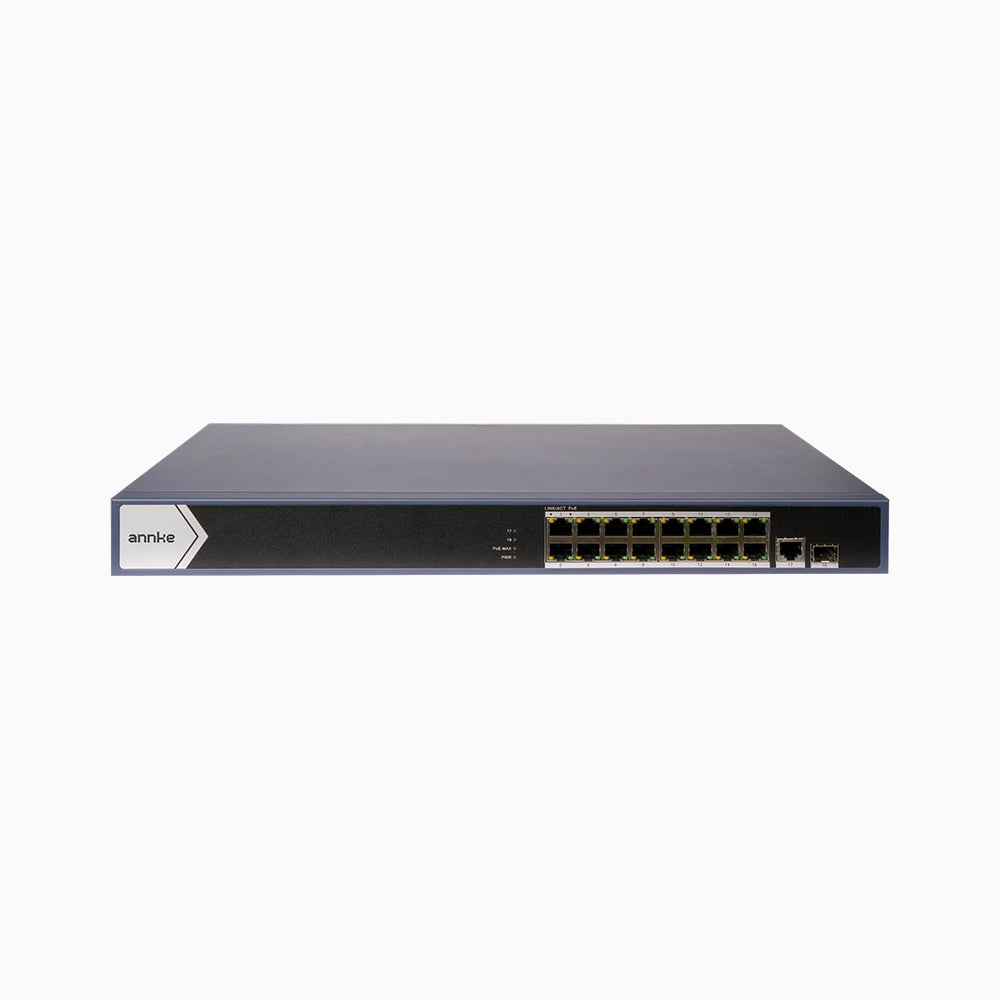

16-Port 1000Mbps Gigabit PoE+ Switch (230W Total Power) – 30W Max per Port, 36Gbps Switching Capacity, 6KV Surge Protection, Layer 2 Unmanaged Network Switch for IP Cameras

16-Port 1000Mbps Gigabit PoE+ Switch (230W Total Power) – 30W Max per Port, 36Gbps Switching Capacity, 6KV Surge Protection, Layer 2 Unmanaged Network Switch for IP Cameras
SKU: JHJ030-U
$179.99
$179.99
Ask An Expert
Subtotal: $179.99
Description

Designed for Reliable Video Transmission

Built with Layer 2 switching technology, this switch ensures smooth and stable data flow — perfect for IP cameras and video surveillance systems that demand continuous, high-bandwidth transmission.

Powerful PoE+ Output for Every Port

Compliant with IEEE 802.3af/at standards, each PoE port delivers up to 30W of power, supporting a total PoE budget of 230W, easily powering multiple high-power devices like cameras or access points.

High-Speed Gigabit Performance

Equipped with 16 Gigabit Ethernet ports plus 1 uplink Ethernet and 1 uplink SFP port, providing lightning-fast connections for smooth data and video transmission with a 36Gbps switching capacity and 26.78Mpps forwarding rate.

Enhanced Safety and Durability

Engineered with 6KV surge protection, the switch safeguards connected devices from lightning and electrical surges, ensuring stable operation even in challenging environments.

Simple Plug-and-Play Installation

No configuration required. Just connect your cameras or network devices and enjoy instant power and data transmission — ideal for home or business security networks.

Efficient Data Handling

Supports store-and-forward switching and features a 4.1 Mbit internal cache, reducing latency and packet loss for smoother network performance.

Specifications

Download JHJ030-U Specification

SW019
Port16 x Gigabit PoE ports, 1 x Gigabit RJ45 port, and 1 × Gigabit SFP fiber optical port Mac Address Table8K
Switching Capacity36 Gbps Packet Forwarding Rate26.78 Mbps
Internal Cache4.1 Mbits PoE StandardIEEE 802.3af, IEEE 802.3at
PoE Power PinEnd-span: 1/2(-), 3/6(+) PoE PortPorts 1 to 16
Maximum Port Power30 W PoE Power Budget230 W
ShellMetal material Net Weight2.67kg (1.10 lb)
Dimensions440.0 mm × 44.0 mm × 220.8 mm (17.3'' × 1.7'' × 8.7'') Operating Temperature0 °C to 45 °C (32 °F to 113 °F)
Power Supply100~240 V AC, 50/60 Hz, Max. 4 A Max. Power Consumption250 W
Power Consumption in Idle20 W Installation ModeDesk-Mounted,Rack (equipped with mounting ears)
Surge Protection6 kV
Port16 x Gigabit PoE ports, 1 x Gigabit RJ45 port, and 1 × Gigabit SFP fiber optical port
Mac Address Table8K
Switching Capacity36 Gbps
Packet Forwarding Rate26.78 Mbps
Internal Cache4.1 Mbits
PoE StandardIEEE 802.3af, IEEE 802.3at
PoE Power PinEnd-span: 1/2(-), 3/6(+)
PoE PortPorts 1 to 16
Maximum Port Power30 W
PoE Power Budget230 W
ShellMetal material
Net Weight2.67kg (1.10 lb)
Dimensions440.0 mm × 44.0 mm × 220.8 mm (17.3'' × 1.7'' × 8.7'')
Operating Temperature0 °C to 45 °C (32 °F to 113 °F)
Power Supply100~240 V AC, 50/60 Hz, Max. 4 A
Max. Power Consumption250 W
Power Consumption in Idle20 W
Installation ModeDesk-Mounted,Rack (equipped with mounting ears)
Surge Protection6 kV
