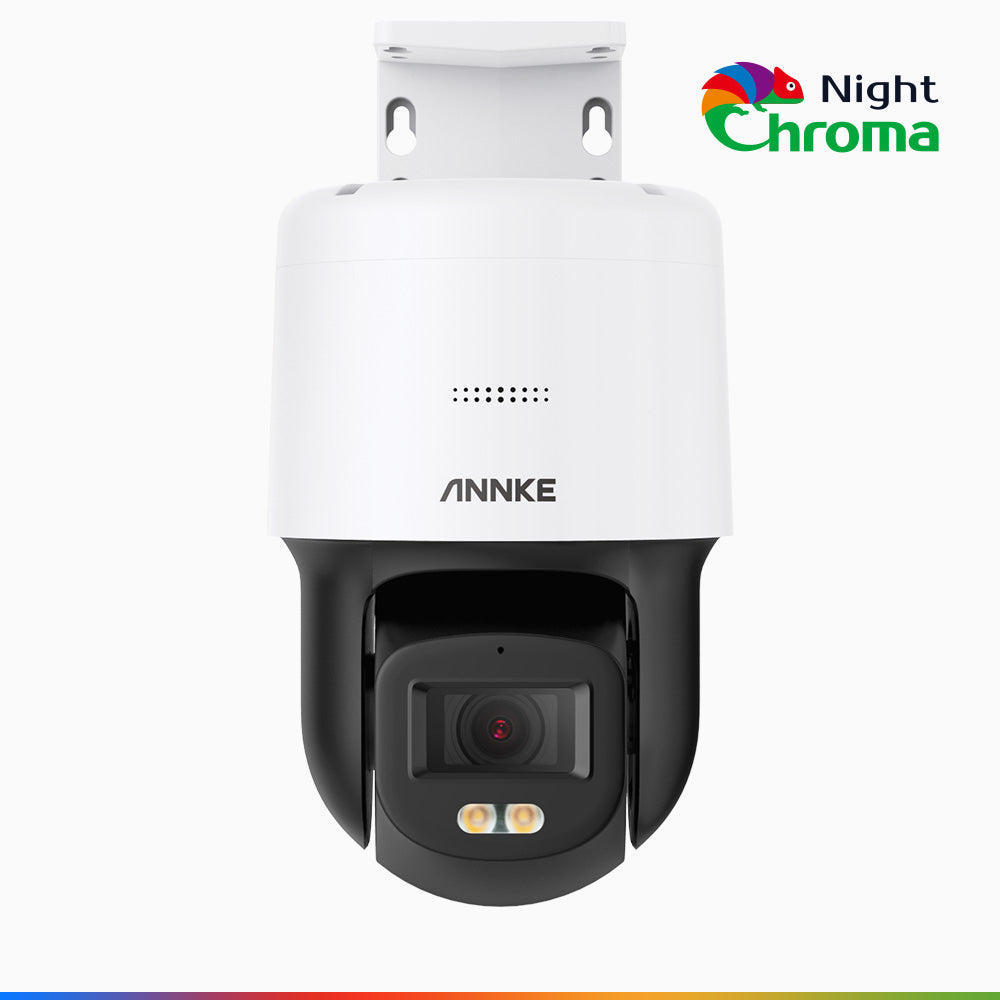

NightChromaTM NCPT500 - 3K PT Speed Dome PoE Security Camera, 340° Pan & 110° Tilt, 3072*1728 Resolution, f/1.0 Super Aperture, Acme Color Night Vision, Motion Detection, 2-Way Audio

NightChromaTM NCPT500 - 3K PT Speed Dome PoE Security Camera, 340° Pan & 110° Tilt, 3072*1728 Resolution, f/1.0 Super Aperture, Acme Color Night Vision, Motion Detection, 2-Way Audio

$67.99

$129.99

SKU: AN-I81EM0102

Note: NC400 are now on 35% off DOTW sale with code DOTW02.

Secure Checkout With:

  • Tags: 3K , ACE Color Night Vision , Built-in Microphone , Dome , Pan Tilt , Two-Way Audio

    Full Color & Pan Tilt,
    Expand Your Vision

  • 3K

    HD Clarity
    Clear Details

  • PT

    340° Pan & 110° Tilt
    Wider Coverage

  • Color

    Night Vision
    View Colors at Night

  • AI 2.0

    Smart Detection
    Accurate Alerts

  • See Every Detail & True Color, Even at Night

    To achieve TRUE acme color night vision, it is necessary to utilize high-quality materials and cutting-edge technologies. The incorporation of advanced technologies such as 1/1.8 BSI sensors, f/1.0 super aperture, ISP (Image Signal Processor), and dual supplemental lights is what enables the production of true color night vision images.

    Only security cameras with f/1.0 super aperture can capture acme color night vision. f/1.0 aperture, the largest aperture in video surveillance, collects 4X amount of lighting than f/1.0 aperture, to produce brighter images.

    That’s the best backside illumination sensor. It increases 2X amount of light sensing areas to deliver clearer footages. The high-performance ISP image processing tech helps produce high-fidelity & colorful details.

    Guarantees superlative quality control and focusing performance in the mass production of ultra-high-definition products.

    The soft supplement light turns on automatically in 0 lux illumination to ensure the best color night vision without glare.

    3K High-Resolution with 16:9 Image Scale

    This camera is equipped with a 1/8" Progressive Scan BSI CMOS sensor which enables it to capture videos in 3K resolution (3072x1728@20fps) with exceptional clarity and accuracy, showcasing even the slightest details in a realistic manner. The 16:9 image scale is superior to the traditional 4:3 ratio, making it more compatible with the commonly used display ratios.

    4 Top-of-the-Line Image Enhancement Technologies

    The IP camera adopts 4 incredible image enhancement technologies – DWDR, 3D DNR, BLC & HLC – to provide the splendid 3K Super HD clarity. So, whether you view the live stream by day or by moonlight, you’ll get a new level of details and colors that wasn’t possible before.

    Covers More & Sees Wider

    This camera has the ability to pan horizontally up to 340° and tilt vertically up to 110°. By controlling it remotely, you can easily modify the camera's angle to capture a broader perspective of the monitored space. Ideal for overseeing extensive locations like parking lots, outdoor areas, and warehouses.

    Talk Like You’ re Here

    Built-in microphone & speaker allow you to listen and talk back to whoever the camera catches in real time. You can greet your friends with a "Hello!" or warn an unwelcome person to "Get away!" Support filter the environment noise, and record videos with vivid sound.

    Advanced H.265+ Coding

    With H.265+ compression, you can store more information using fewer hard drives, which allows you to do more with less, and dramatically reduce file sizes with this latest video compression format.

    Rain or Shine, Use It Anytime: IP66 Weatherproof

    Designed to withstand extreme indoor and outdoor conditions ranging from -22 °F/-30 °C to 122 °F/50 °C, the robust weather-resistant camera with an IP66 rating is capable of delivering flawless 4K video quality without any loss of resolution, regardless of whether the climate is sweltering or freezing.

  • Plastic

    Rugged Housing

  • -22 °F | -30 °C

    Cold Rating

  • 122 °F | 50 °C

    Heat Rating

  • IP66

    Water Rating

  • Small on Prices, Big on Features

  • Support Local
    Storage

    Record videos onto your micro SD/SDHC/SDXC card slot, up to 256 GB.

  • PoE & DC 12V
    Power Supply

    Power on the camera via PoE with an NVR/PoE injector, or plug it into an outlet for the power supply.

  • Remote Access
    & Control

    Stay tuned with your home or business all the time by ANNKE Vision APP or Client.

  • Specification

    Download I81EM Specification

    What's in the Box
  • 1X Camera
  • 1X Mounting Screws Bag
  • 1X User manual
  • 1X Surveillance Sign
  • 1X Allen wrench
  • 1X Mounting Hole Template
  • 1X Mounting Screw Bag
  • 1X Waterproof Lid
  • Camera
    Image Sensor1/1.8"  Progressive Scan CMOS Max resolution3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
    Main Stream50 Hz: 20fps(3072*1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
    60 Hz: 20fps(3072*1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
    Substream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
    Video Bit Rate32 Kbps to 8 Mbps Lens2.8 mm@F1.0
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    FOVHorizontal FOV 105.7°, vertical FOV 57.3°, diagonal FOV 124.9°
    Supplement LightSmart white Light, up to 30 m Movement RangePan:0° to 340°, Tilt: -5° to 105°
    Min. Illumination24 hour color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with Light Lens2.8 mm@F1.0
    Pan SpeedConfigurable from 4° to 21°/s Tilt SpeedConfigurable from 4° to 19°/s
    Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC-LC/PCM Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps(MP2L2)/16 to 64 Kbps (AAC-LC)
    Audio Sampling Rate8 kHz/16 kHz Environment Noise FilteringYes
    Image Enhancement3D DNR,  BLC, HLC, WDDR ProtocolsIPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP,FTP
    APIOpen Network Video Interface Version 18.12 AudioBuild in microphone & speaker, support 2-way audio
    Basic EventMotion detection, video tampering alarm, exception General FunctionMirror, password protection, watermark
    Image Sensor1/1.8"  Progressive Scan CMOS
    Main Stream50 Hz: 20fps(3072*1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
    60 Hz: 20fps(3072*1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
    Video Bit Rate32 Kbps to 8 Mbps
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Supplement LightSmart white Light, up to 30 m
    Min. Illumination24 hour color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with Light
    Pan SpeedConfigurable from 4° to 21°/s
    Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC-LC/PCM
    Audio Sampling Rate8 kHz/16 kHz
    Image Enhancement3D DNR,  BLC, HLC, WDDR
    APIOpen Network Video Interface Version 18.12
    Basic EventMotion detection, video tampering alarm, exception
    Max resolution 3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
    Substream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
    Lens 2.8 mm@F1.0
    FOV Horizontal FOV 105.7°, vertical FOV 57.3°, diagonal FOV 124.9°
    Movement Range Pan:0° to 340°, Tilt: -5° to 105°
    Lens 2.8 mm@F1.0
    Tilt Speed Configurable from 4° to 19°/s
    Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps(MP2L2)/16 to 64 Kbps (AAC-LC)
    Environment Noise Filtering Yes
    Protocols IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP,FTP
    Audio Build in microphone & speaker, support 2-way audio
    General Function Mirror, password protection, watermark
    General
    ColorWhite & black StorageSupport MicroSD Card (up to 256 GB)
    Operating Power12 VDC ± 25%, 0.75 A, max. 9 W; PoE (802.3af), max. 10 W Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    Operating Temperature-22° to 122° F (-30° to 50° C) Indoor/OutdoorIndoor/Outdoor
    Protection LevelIP66 Weight780 g (1.7 lb.)
    Dimension162 mm × 120 mm × 234.2 mm (6.4" × 4.7" × 9.2")
