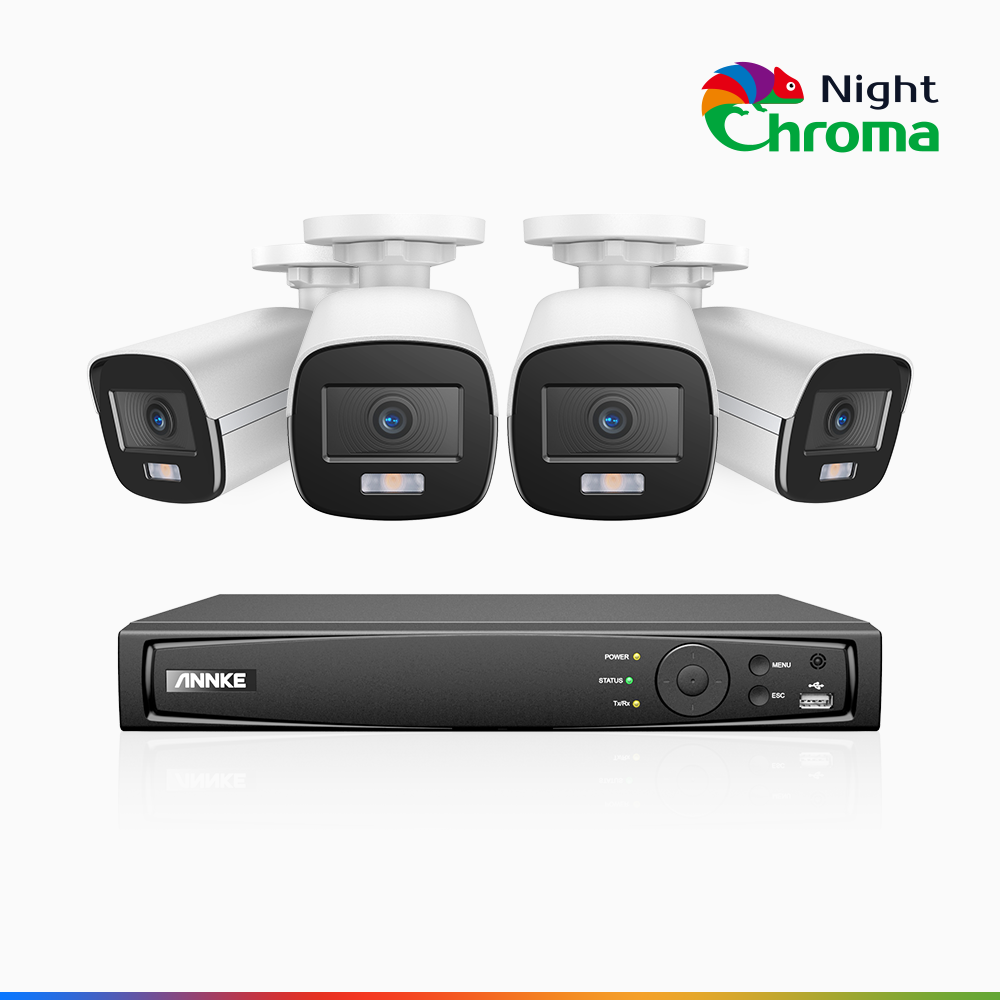

NightChromaTM NCK500 - 3K 8 Channel 4 Cameras PoE Security System, Acme Color Night Vision, f/1.0 Super Aperture, Active Alignment, Built-in Microphone, IP67

SKU: N48PAW+I81HD*4
$475.99
$659.99
$475.99
Apparence: Bullet
HDD Capacity: NO HDD
Subtotal: $475.99
NightChroma<sup>TM</sup> NCK500 - 3K 8 Channel 4 Cameras PoE Security System, Acme Color Night Vision, f/1.0 Super Aperture, Active Alignment, Built-in Microphone, IP67

NightChroma<sup>TM</sup> NCK500 - 3K 8 Channel 4 Cameras PoE Security System, Acme Color Night Vision, f/1.0 Super Aperture, Active Alignment, Built-in Microphone, IP67

$659.99 $475.99

NightChroma<sup>TM</sup> NCK500 - 3K 8 Channel 4 Cameras PoE Security System, Acme Color Night Vision, f/1.0 Super Aperture, Active Alignment, Built-in Microphone, IP67

$659.99 $475.99
Apparence: Bullet
HDD Capacity: NO HDD

Bring Rich Colors to the Night

Unique & Unrivaled Tech Behind Acme Color Night Vision

Experience unparalleled 3K QHD color night vision with NightChroma™ NC500. Featuring an f/1.0 super aperture, advanced backside illumination sensor, high-performance ISP, and precise micro-size alignment, it ensures brighter, clearer, and high-fidelity images. Soft supplement light ensures optimal vision in 0 lux conditions.

Human & Vehicle Detection, Brings 99% Accurate Alerts

Using an intelligent algorithm based on a deep learning platform, the motion detection 2.0 camera will detect people and vehicle, which helps reduce 99% unwanted motion alerts triggered by animals, or random inanimate objects.

Vivid Sound Record, Not Silent Footage

The built-in noise-cancelling microphone filters ambient noise and captures voices up to 20 ft away, enhancing security with vivid audio recordings. Easily mute the audio feature if the audio surveillance is not allowed or you don’t want audio record.

Industry-Leading H.265+ Video Format

H.265+ video compression tech consumes less bandwidth & storage space than H.264, without losing 3K QHD quality. Quadruple H.265+/H.265/H.264+/H.264 video format allows for maximum encryptions and backward compatibility with legacy platforms.

Built to Brave Extreme Hot & Cold Climates

Rated as IP67, this weatherproof camera can withstand pretty much anything, regardless heavy snowfall, torrential downpours. This camera has been tested in extreme temperatures (-22 °F to 140 °F), ensuring all-year-round protection wherever you live.

Made from the same heavy-duty aluminum used in the construction of airplanes, the camera housing can withstand large impacts and is highly resistant to corrosion.

  • Metal

    Rugged Housing

  • 140 °F | 60 °C

    Hot Rating

  • -22 °F | -30 °C

    Cold Rating

  • IP67

    Water Rating

  • Small on Prices, Big on Features

  • Local Storage

    Supports up to 256 GB TF card (not included) for local video storage without monthly cloud fees.

  • Image Enhancement

    20 dB true WDR, 3D DNR, BLC & HLC – to provide the splendid 3K Super HD clarity.

  • Unlimited Remote Access

    Easily access your system via intuitive ANNKE Vision App from virtually anywhere in the world.

  • PoE or DC Power

    Power on the camera via PoE or plug the camera to an outlet for power supply.

  • Download NCK500 Specification

    What's in the Box
  • ➀ NC500 Security Camera(s) ((The quantity varies based on your choice.))
  • ➁ 1X Mounting Screw Bag
  • ➂ 1X User Manual
  • Camera
    Image Sensor1/3" Progressive Scan CMOS Video Bitrate32 Kbps - 8 Mbps
    Main Stream50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
    60 Hz:  20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)
    Substream50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
    60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)
    Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC Audio InputBuilt-in Microphone, record with audio
    Lens2.8 mm@F1.0 Day & Night24/7 color imaging
    Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light Angle of ViewHorizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113°
    Max resolution3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Supplement Light TypeWhite Light Supplement Light RangeUp to 30 m
    Motion detection 2.0Supoort, include Human & Vehicle detection Image EnhancementBLC, HLC, 3D DNR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP APIOpen Network Video Interface(Profile S, Profile T, Profile G), ISAPI
    Wide Dynamic Range120 dB WDR Region of Interest (ROI)1 fixed region for main stream
    Privacy Mask4 programmable polygon privacy masks General FunctionRotate mode, mirror, password protection, remote access
    Image Sensor1/3" Progressive Scan CMOS
    Main Stream50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
    60 Hz:  20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)
    Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
    Lens2.8 mm@F1.0
    Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
    Max resolution3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
    Supplement Light TypeWhite Light
    Motion detection 2.0Supoort, include Human & Vehicle detection
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
    Wide Dynamic Range120 dB WDR
    Privacy Mask4 programmable polygon privacy masks
    Video Bitrate 32 Kbps - 8 Mbps
    Substream 50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
    60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)
    Audio Input Built-in Microphone, record with audio
    Day & Night 24/7 color imaging
    Angle of View Horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113°
    Video Compression Main stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Supplement Light Range Up to 30 m
    Image Enhancement BLC, HLC, 3D DNR
    API Open Network Video Interface(Profile S, Profile T, Profile G), ISAPI
    Region of Interest (ROI) 1 fixed region for main stream
    General Function Rotate mode, mirror, password protection, remote access
    General
    Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port HousingMetal & Plastic
    ColorWhite Hardware ResetYes
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
    Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C Indoor/Outdoor UseIndoor/Outdoor
    Interface ProtectionIP67 Dimension (L X W X H)Ø109.9 mm × 103.6 mm (Ø4.3" × 4.1")-I81HE/ Ø 76.6 mm × 164.4 mm (Ø 3" × 6.5")-I81HD
    WeightApprox. 420 g (0.9 lb.)-I81HE / Approx. 430 g (0.9 lb.)-I81HD
    Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
    ColorWhite
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB
    Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Interface ProtectionIP67
    Housing Metal & Plastic
    Hardware Reset Yes
    Operating Power DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
    Indoor/Outdoor Use Indoor/Outdoor
    Dimension (L X W X H) Ø109.9 mm × 103.6 mm (Ø4.3" × 4.1")-I81HE/ Ø 76.6 mm × 164.4 mm (Ø 3" × 6.5")-I81HD
    WeightApprox. 420 g (0.9 lb.)-I81HE / Approx. 430 g (0.9 lb.)-I81HD
