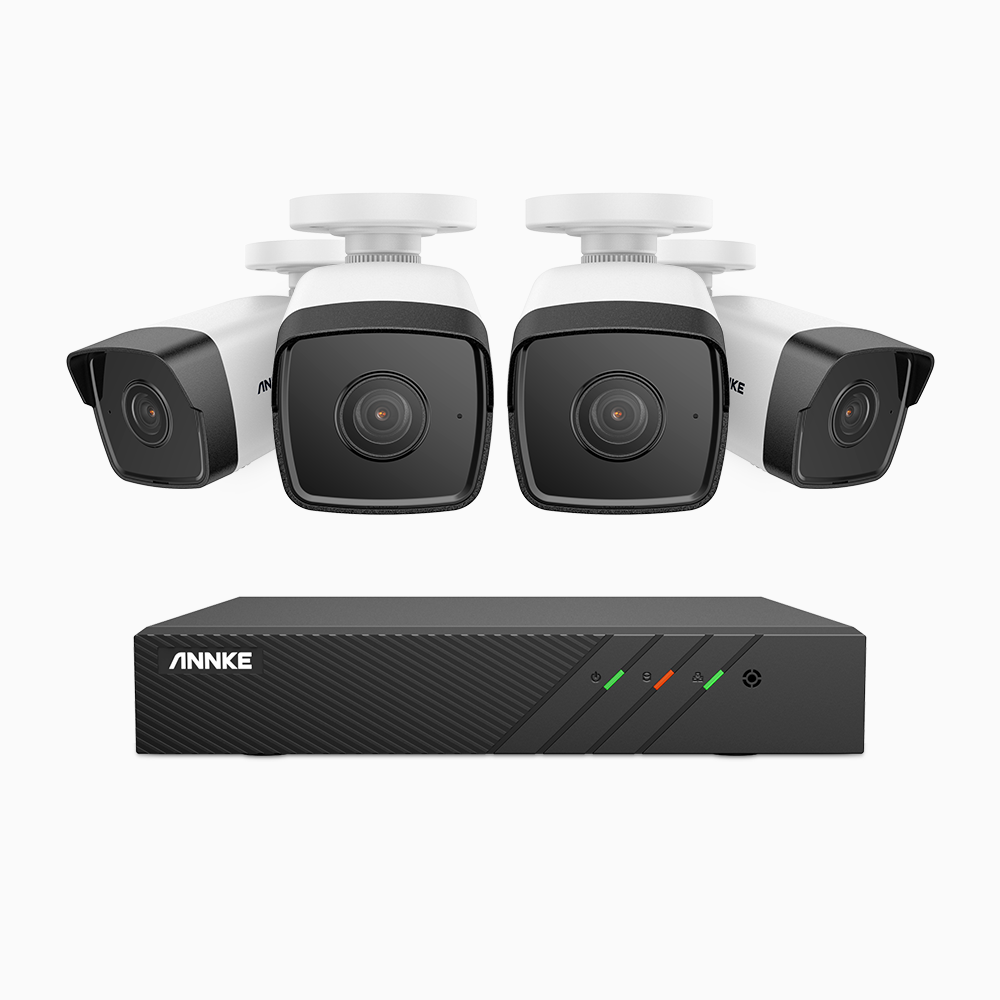

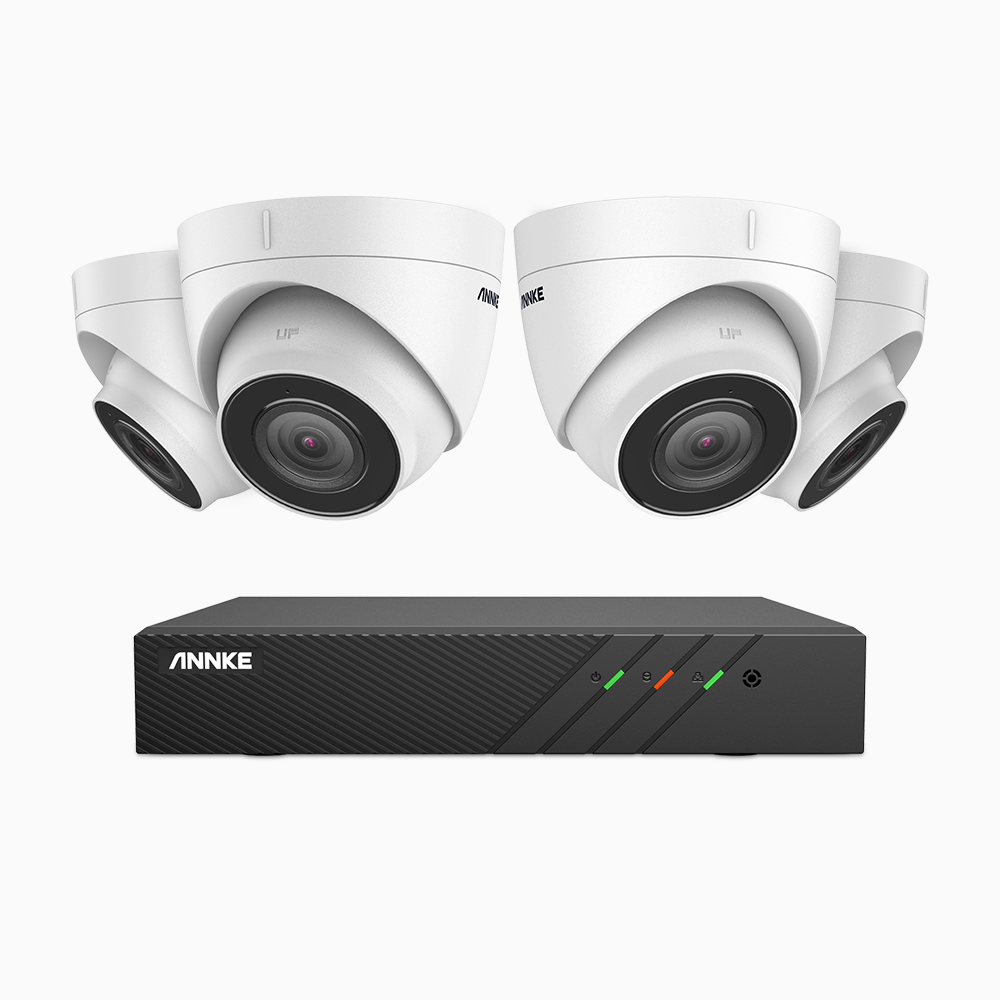

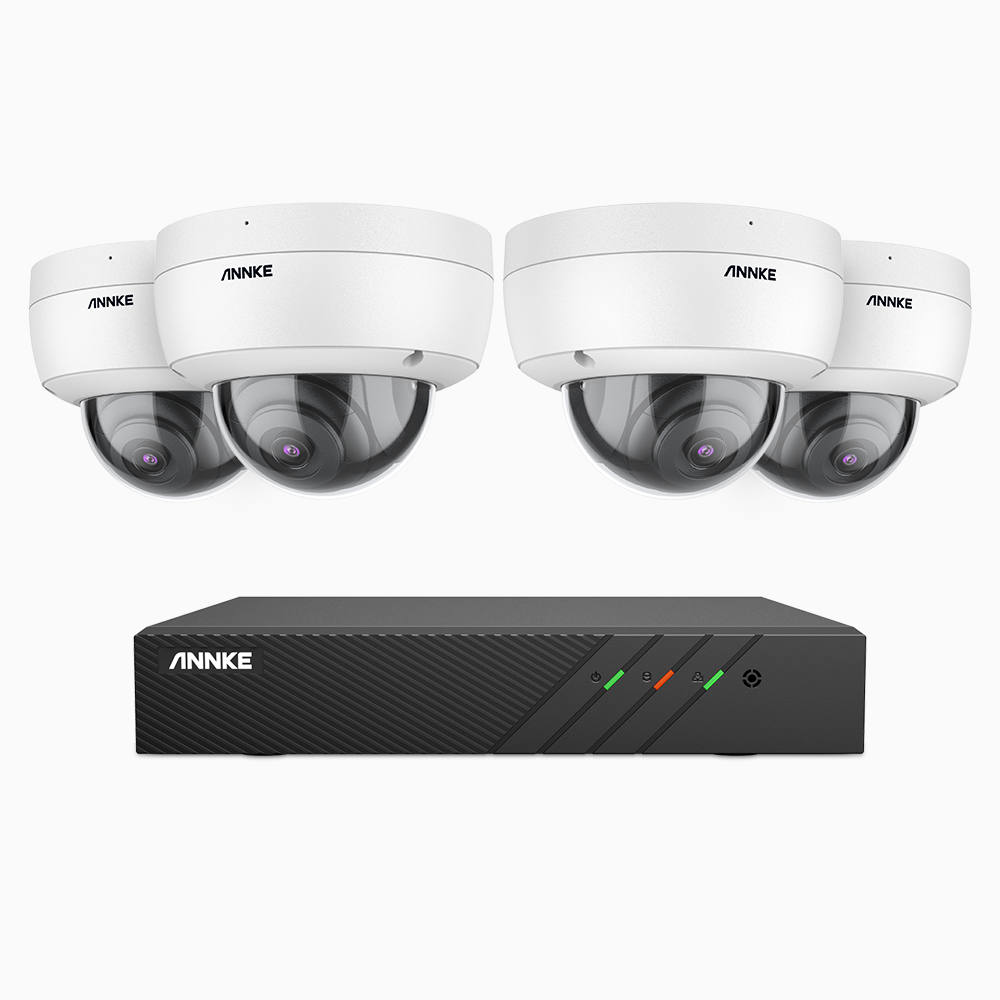

H500 - 3K Super HD 8 Channel 4 Cameras PoE Security System, EXIR 2.0 Night Vision, Built-in Microphone & SD Card Slot,IP67 Waterproof, RTSP Supported, Works with Alexa

H500 - 3K Super HD 8 Channel 4 Cameras PoE Security System, EXIR 2.0 Night Vision, Built-in Microphone & SD Card Slot,IP67 Waterproof, RTSP Supported, Works with Alexa

$244.99

$329.99

SKU: N48PBB+I51DL0102*4

Note: C800 Turret (1-cam) is now on 30% off DOTW sale
Appearance
Lens
HDD Capacity
Note: NC400 are now on 35% off DOTW sale with code DOTW02.

Secure Checkout With:

  • Tags: 3K , 4 , 5MP , 8CH NVR , Built-in Microphone , Bullet , Dome , EXIR Night Vision , Turret

    H500 System

    Up Your Smart Solution
    Game to True 3K PoE


  • 8CH

    NVR
    Support Max. 8 Cams

  • 2.8/4 MM

    Up to 91° FOV
    Cover Every Angle

  • IP67

    Outdoor
    Indoor Use

  • 100 FT

    EXIR Night Vision
    View Clearly at Night

  • Heightened 3K Super HD in All Environments

    H500 has been tested in almost every scenario in your daily life, garages, front doors, stores, etc. both hot & cold temperatures. The cameras can still shoot stable & high-fidelity footages without glare in every testing environment.

    Color Night Vision with External Lighting

    ANNKE-designed color night vision tech enables the camera to produce colorful videos over 0.028 lux illumination with the external light sources around the camera.

    Equipped with the exceptional EXIR tech & smart IR, the camera delivers up to 100 ft long-range black & white night vision in 0 lux illumination conditions, which are too dark to render color images.

    Noise-Cancelling Audio Recording

    The built-in noise-cancelling microphone can filter the environment noise automatically, and pick up the voice from up to 20 ft away.

    Listen-in Audio

    Audio recording enhances the security coverage and the ability to interpret events. Record videos with vivid sound instead of silent footages.

    Mute Function

    Audio record might be regulated based on your location. If the audio surveillance is not allowed or you don’t want audio record, simply mute it.

    Advanced H.265+ Video Format

    ANNKE H.265+ coding helps the camera record longer videos and consumes less bandwidth. Save your budgets on buying more HDDs.

  • Small File Sizes

    Send smaller file sizes to the network video recorder without losing 3K quality.

  • Long Recording Time

    H.265+ coding allows for longer recording time before overwriting the older recordings.

  • Remote 3K Live View

    View high-quality 3K Super HD live stream on your smart devices without all the data.

  • Heavy-Duty IK10 Vandal-Proof Housing

    The rugged dome security camera is manufactured with an IK10 vandal-proof rating. It means that your camera can withstand devastating violent impacts (for dome cameras only).

    Made from metal & ABS materials (provided by SABIC, the largest public company in the Middle East & Saudi Arabia), it is capable of looking after itself while protecting you.

    Built to Brave Extreme Hot & Cold Climates

    Rated as IP67, this weatherproof camera can withstand pretty much anything, regardless heavy snowfall, torrential downpours. This camera has been tested in extreme temperatures (-22 °F to 140 °F), ensuring all-year-round protection wherever you live.

  • Metal & ABS

    Rugged Housing

  • 140 °F | 60 °C

    Heat Rating

  • -22 °F | -30 °C

    Cold Rating

  • IP67

    Water Rating

  • Triple & Flexible Video Recording Modes

    Your NVR can record videos continuously, during scheduled periods or when motion is detected. The recording modes can be specified for each camera, so you can customize the cameras in higher activity areas to record 24/7, while cameras in low activity areas can be set up to record motion events only.

    The built-in security-grade 2 TB HDD is engineered to meet the demands of 24/7 recording, without cloud storage fees. You may increase the storage space up to 6 TB.

    Simple Plug & Play PoE Installation

    Power over Ethernet (PoE) tech is the all-in-one solution that reduces the cost and installation time. A single Ethernet cable runs between your IP camera and network video recorder provides power, video & network transmission, so you don’t need to install your camera near an outlet.

    Smart Motion Detection Alerts

    Whenever there are motion events, you will receive real-time app push notifications and email alerts with snapshots, which allows you to keep track of all motion activities easily & instantly.

    Small on Prices, Big on Features

  • Support RTSP

    Integrate the system to third-party software 4K cameras, like Blue Iris, Synology, etc.

  • Customized Motion Areas

    Customize the specific motion zones, like garage, front door, etc. for much more relevant motion alerts.

  • Unlimited Remote Access

    Easily access your system via intuitive ANNKE Vision App from virtually anywhere in the world.

  • 24/7 Record Without Internet

    The NVR & cameras link to each other after plug in & record videos 24/7 without Internet.

  • Specification

    Download H500 Specification

    What's in the Box
  • ➀ 1X/4X Security Camera(s)
  • ➁ 1X/4X Mounting Screw Bag(s)
  • ➂ 1X User Manual
  • ➃1X Screw Driver (For dome camera only)
  • Camera
    Image Sensor1/3" Progressive Scan CMOS Max resolution3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
    Main Stream50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
    60 Hz:  20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)
    Substream50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
    60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)
    Video Bitrate32 Kbps - 6 Mbps Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    Audio InputBuilt-in Microphone, record with audio Lens2.8 mm
    Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR Angle of ViewHorizontal FOV 99°, vertical FOV 55°, diagonal FOV 116°
    Number of Infrared LEDs2 pcs Night Vision DistanceUp to 100 ft/30 m
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Motion detection 2.0Supoort, include Human & Vehicle detection
    Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP APIOpen Network Video Interface
    Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
    General FunctionMirror,rotate,password protection,video tampering alarm, remote access Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
    Image Sensor1/3" Progressive Scan CMOS
    Main Stream50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
    60 Hz:  20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)
    Video Bitrate32 Kbps - 6 Mbps
    Audio InputBuilt-in Microphone, record with audio
    Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
    Number of Infrared LEDs2 pcs
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Image EnhancementBLC, HLC, 3D DNR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP
    Region of Interest (ROI)1 fixed region for main stream
    General FunctionMirror,rotate,password protection,video tampering alarm, remote access
    Max resolution 3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
    Substream 50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
    60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)
    Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    Lens 2.8 mm
    Angle of View Horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116°
    Night Vision Distance Up to 100 ft/30 m
    Motion detection 2.0 Supoort, include Human & Vehicle detection
    Wide Dynamic Range 120 dB WDR
    API Open Network Video Interface
    Privacy Mask 4 programmable polygon privacy masks
    Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
    General
    HousingMetal & Plastic ColorWhite & Black
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB Hardware ResetYes
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/Outdoor UseIndoor/Outdoor Interface ProtectionIP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection
    Dimension (L X W X H)7.0" X 2.6" X 2.7"/177.6 X 66.2 X 67.8 mm Weight0.6 lb./270 g
    HousingMetal & Plastic
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
    Indoor/Outdoor UseIndoor/Outdoor
    Dimension (L X W X H)7.0" X 2.6" X 2.7"/177.6 X 66.2 X 67.8 mm
    Color White & Black
    Hardware Reset Yes
    Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
    Interface Protection IP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection
    Weight 0.6 lb./270 g
    What's in the Box
  • ➀ 1X/4X Security Camera(s)
  • ➁ 1X/4X Mounting Screw Bag(s)
  • ➂ 1X User Manual
  • ➃1X Screw Driver (For dome camera only)
  • Camera
    Image Sensor1/3" Progressive Scan CMOS Max resolution3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
    Main Stream50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
    60 Hz:  20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)
    Substream50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
    60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)
    Video Bitrate32 Kbps - 6 Mbps Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Audio InputBuilt-in Microphone, record with audio
    Lens2.8 mm Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
    Angle of ViewHorizontal FOV 99°, vertical FOV 55°, diagonal FOV 116° Number of Infrared LEDs2 pcs
    Night Vision DistanceUp to 100 ft/30 m Motion detection 2.0Supoort, include Human & Vehicle detection
    Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP APIOpen Network Video Interface
    Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
    General FunctionMirror,rotate,password protection,video tampering alarm, remote access Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
    Image Sensor1/3" Progressive Scan CMOS
    Main Stream50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
    60 Hz:  20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)
    Video Bitrate32 Kbps - 6 Mbps
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Lens2.8 mm
    Angle of ViewHorizontal FOV 99°, vertical FOV 55°, diagonal FOV 116°
    Night Vision DistanceUp to 100 ft/30 m
    Image EnhancementBLC, HLC, 3D DNR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP
    Region of Interest (ROI)1 fixed region for main stream
    General FunctionMirror,rotate,password protection,video tampering alarm, remote access
    Max resolution 3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
    Substream 50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
    60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)
    Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    Audio Input Built-in Microphone, record with audio
    Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
    Number of Infrared LEDs 2 pcs
    Motion detection 2.0 Supoort, include Human & Vehicle detection
    Wide Dynamic Range 120 dB WDR
    API Open Network Video Interface
    Privacy Mask 4 programmable polygon privacy masks
    Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
    General
    HousingMetal & Plastic ColorWhite
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB Hardware ResetYes
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/Outdoor UseIndoor/Outdoor Weight0.6 lb./270 g
    Interface ProtectionIP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection Dimension (L X W X H)Ø 110 × 100.8 mm (Ø 4.3" × 4.0")
    HousingMetal & Plastic
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
    Indoor/Outdoor UseIndoor/Outdoor
    Interface ProtectionIP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection
    Color White
    Hardware Reset Yes
    Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
    Weight 0.6 lb./270 g
    Dimension (L X W X H) Ø 110 × 100.8 mm (Ø 4.3" × 4.0")
    Video & Audio
    Video CompressionH.264+/H.264/H.265/H.265+/MPEG4 IP Video Input8CH PoE
    Video OutputHDMI up to 4K; VGA up to 1080p Audio Input/Output1/1 RCA
    Incoming Bandwidth80 M Max Recording ResolutionUp to 8MP (3840 X 2160)
    Max Playback ResolutionUp to 8MP (3840 X 2160) Max Playback Channel8CH
    Max Playback Capacity4CH @1080p; 1CH @8MP
    Video CompressionH.264+/H.264/H.265/H.265+/MPEG4
    Video OutputHDMI up to 4K; VGA up to 1080p
    Incoming Bandwidth80 M
    Max Playback ResolutionUp to 8MP (3840 X 2160)
    Max Playback Capacity4CH @1080p; 1CH @8MP
    IP Video Input 8CH PoE
    Audio Input/Output 1/1 RCA
    Max Recording Resolution Up to 8MP (3840 X 2160)
    Max Playback Channel 8CH
    Hard Drive
    HDD1 SATA Interface HDD CapacityUp to 6 TB Capacity for Each HDD
    HDD1 SATA Interface
    HDD Capacity Up to 6 TB Capacity for Each HDD
    External Interface
    Network InterfaceRJ45 X1 (10/100/1000 M) PoE8 Ports (IEEE802.3at / af)
    USB2X USB 2.0
    Network InterfaceRJ45 X1 (10/100/1000 M)
    USB2X USB 2.0
    PoE 8 Ports (IEEE802.3at / af)
    General
    Operating PowerDC 48 V Working Temperature14 °F — 131 °F/-10 °C — +55 °C
    Dimensions (W X H X D)12.4” X 9.4” X 1.9”/315 X 240 X 48 mm Weight (Without Hard Disk)2.2 lbs./1 kg
    Power Consumption≤10 W (Without HDD and PoE)
    PoE: Max 25.5 W for Single Port
    Operating PowerDC 48 V
    Dimensions (W X H X D)12.4” X 9.4” X 1.9”/315 X 240 X 48 mm
    Working Temperature 14 °F — 131 °F/-10 °C — +55 °C
    Weight (Without Hard Disk) 2.2 lbs./1 kg
    Power Consumption≤10 W (Without HDD and PoE)
    PoE: Max 25.5 W for Single Port

    Customer Reviews

    Based on 11 reviews
    91%
    (10)
    9%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    C
    Collins Loupe
    Security Camera w/ NVR

    So far the system works as advertised. Pic quality is very good and the physical set up was pretty straight forward. However, the documentation could be much better. A more in depth...and accurate description and walk through of connecting to internet and mobil app should be looked at. I would guess that the person who wrote the manual was not a native english speaker. Some of the mis-use of words or phrases was easy to interpret, however the more involved descriptions of the internet/mobil app protocols were incomplete, in some cases inaccurate or at least very confusing.

    Cameras are great quality in build and resolution.
    All-in-All a nice piece of equipment at an entry price point

    J
    Jack S.
    Exceptional product

    I recently made a purchase that has truly exceeded all my expectations and revolutionized the way I approach home security - the H500 5MP Super HD 8 Channel 4 Camera PoE Security System. I am absolutely thrilled with this purchase and am excited to share my experience with others.

    One of the standout features of this security system is its remarkable high-resolution video quality. The 5-megapixel resolution, combined with the 4mm lens, delivers an unparalleled level of clarity and detail that I had never experienced before. Whether it's capturing the fine nuances of facial features or accurately identifying license plate numbers, this system's video quality is nothing short of impressive. It truly offers a new level of assurance that every corner of my property is under watchful surveillance.

    The installation process of the H500 system was surprisingly straightforward. As a professional in this field, I was amazed as to how easy set up was for cameras and the system overall without any hassle. The Plug-and-Play design, along with the Power over Ethernet (PoE) technology, made the installation a breeze. Within no time, I had all four cameras strategically positioned around my property, covering all angles that matter most. This user-friendly installation process is a testament to the thoughtful design and engineering that went into creating this system.

    One of the features that truly sets the H500 system apart is its remote view capabilities. With the dedicated app, I can now monitor my property from anywhere in the world through my smartphone or tablet. Whether I'm at work, on vacation, or simply away from home, I have peace of mind knowing that I can keep a watchful eye on my property with just a few taps on my screen. This level of convenience and accessibility is simply priceless.

    The night vision capabilities of the H500 system deserve special mention. Even in the darkest of nights, the cameras deliver clear and crisp footage, thanks to their advanced infrared technology. This means that my property remains secure and monitored 24/7, regardless of the lighting conditions.

    Adding to the impressive list of features is the audio capability of the system. The two-way audio communication allows me to not only see what's happening but also interact with the surroundings. This feature comes in handy for communicating with visitors, delivery personnel, or even deterring potential intruders.

    All of these remarkable features are offered at an entry-level price point, which makes the H500 5MP Super HD PoE Security System an absolute steal. It's a comprehensive package that provides cutting-edge technology without breaking the bank.

    In conclusion, I am beyond satisfied with my purchase of the H500 5MP Super HD 8 Channel 4 Camera PoE Security System. Its high-resolution video quality, easy installation process, remote view capabilities, night vision, and audio features have transformed my home security experience. I wholeheartedly recommend this system to anyone seeking to enhance their home security measures. With the H500, you're not just getting a security system; you're investing in unparalleled peace of mind.

    M
    Mariusz Pawlik
    Good job

    I was pleased how easy Annke setup is. Good job.

    G
    Gabor Cselik
    Great cameras

    I have a different brand camera system on our house (Hikvision), I have bought this for an other building. The video quality is great and it works with my other DVR as well.

    I
    Ivan Mihic

    Super
