ADL800 - 4K Dual Light Wired CCTV Security Camera, Color & IR Night Vision, 3840x2160@20fps, f/1.6 Super Aperture, 4-in-1 Output Signal, IP67

SKU: AN-CS1ES0102
$49.99
$59.99
$49.99
Appearance: Turret
Subtotal: $49.99
ADL800 - 4K Dual Light Wired CCTV Security Camera, Color & IR Night Vision, 3840x2160@20fps, f/1.6 Super Aperture, 4-in-1 Output Signal, IP67

ADL800 - 4K Dual Light Wired CCTV Security Camera, Color & IR Night Vision, 3840x2160@20fps, f/1.6 Super Aperture, 4-in-1 Output Signal, IP67

$59.99 $49.99

ADL800 - 4K Dual Light Wired CCTV Security Camera, Color & IR Night Vision, 3840x2160@20fps, f/1.6 Super Aperture, 4-in-1 Output Signal, IP67

$59.99 $49.99
Appearance: Turret

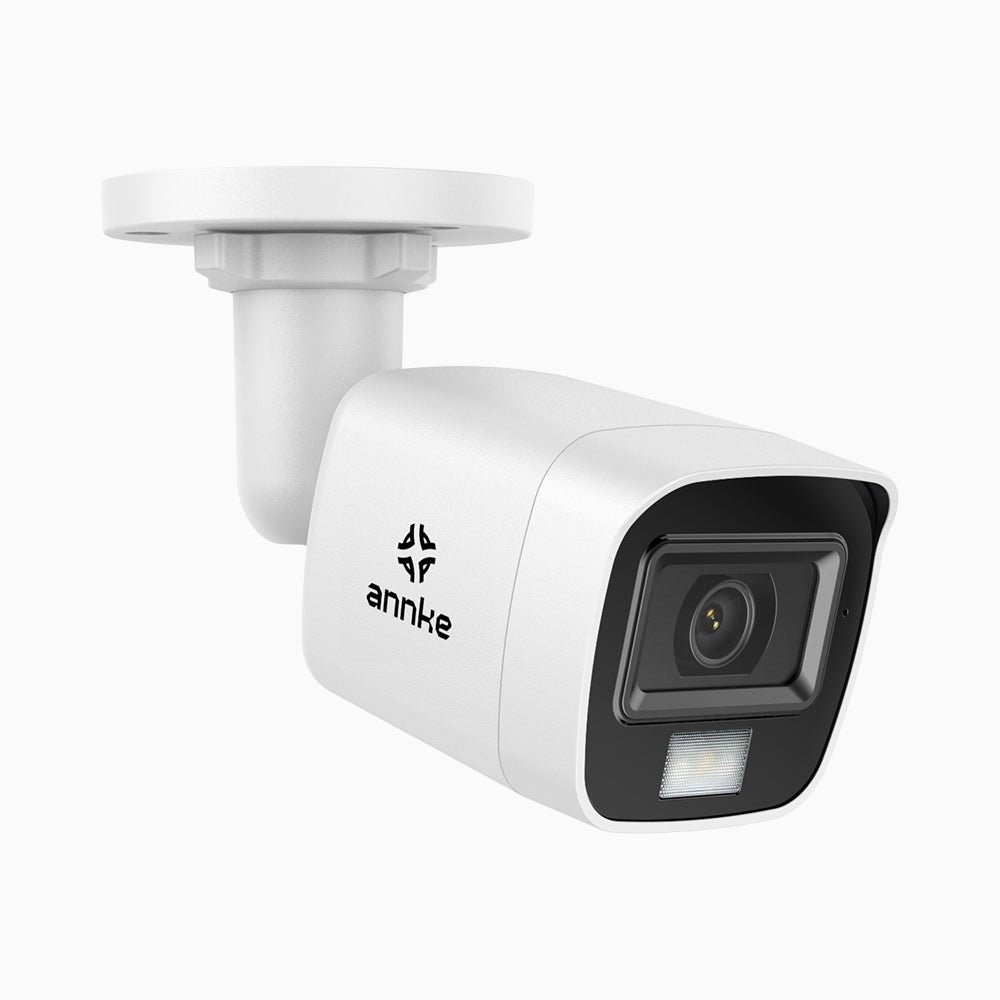

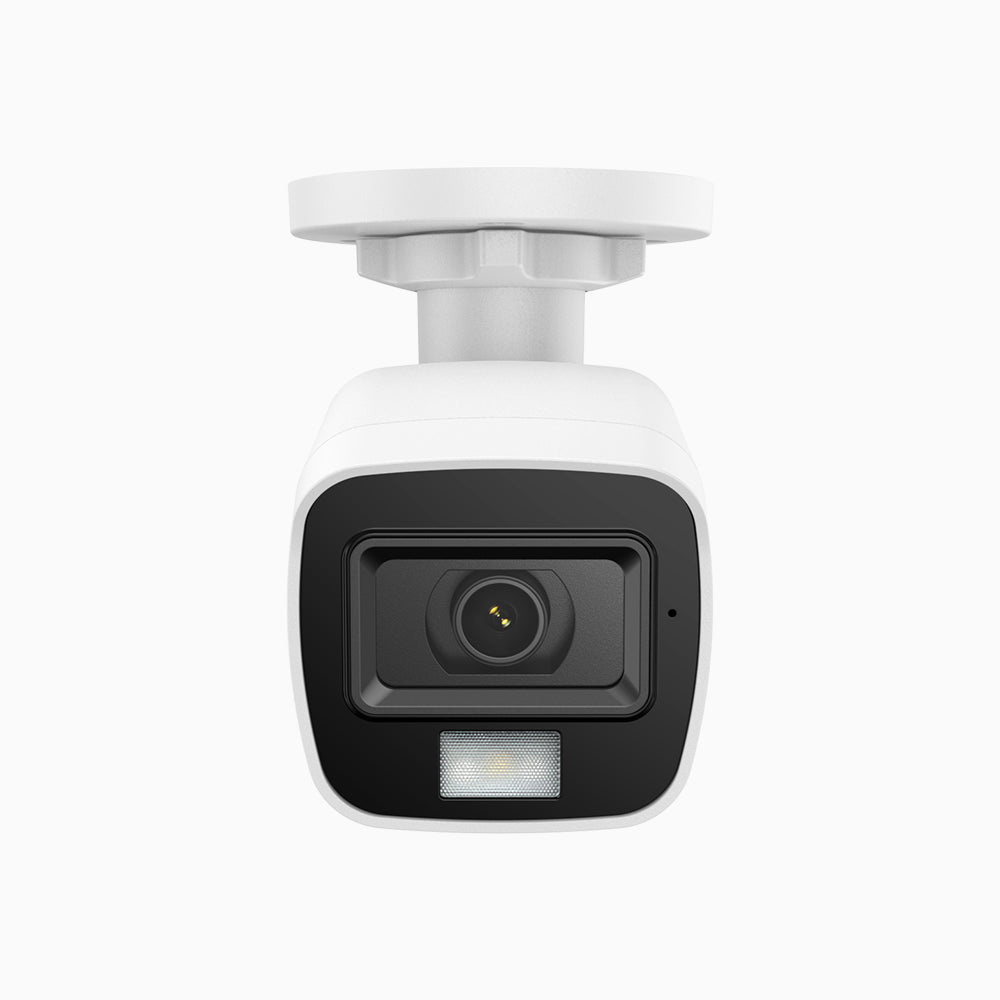

ANNKE ADL800

Experience Unmatched Details
with Stunning 4K Clarity

Ultra-clear Video in 4K with 16:9 Image Scale

With 4K BSI CMOS image sensor, this camera can deliver amazing 4K (3840x2160@20fps) videos with all the subtle details that are true to life. 16:9 aspect ratio effect is better than traditional 4:3, more suitable for mainstream display ratio.

Capture Clear Night Detail by Smart Dual Light

Default smart dual light mode, the camera can clearly find the target at night by infrared light, If there is a moving target, the white light will start, infrared off, so as to obtain a clear color image. In addition, you can also choose full infrared or full white light mode. Infrared fill light is up to 25 m, up to 20 m white light distance for bright night imaging.

Note: A DVR that supports AI is required to realize the dual light function. (Perfectly works with latest version DW81KDDW61LDDT81DXDVR).

Wide Viewing Angle to Cover More

Enjoy exceptional night vision with a 2.8mm fixed lens that offers a 127° wide viewing angle. Combined with a large F1.6 aperture, captures more light for improved low-light performance, delivering clearer, sharper visuals.

Advanced Image Enhancement for Exceptional Clarity

The camera adopts 4 incredible image enhancement technologies – DWDR, AGC, BLC & HLC— to provide splendid 4K Ultra HD clarity. You can also get clear images in high or back-light environments, bright and dark regions with strong light sources.

Powerful 4-in-1 Compatibility with Most DVRs

The camera supports TVI, AHD, CVI and CVBS output modes, which can be perfectly matched with most DVRs. Connect the security camera to a DVR for non-stop live stream and recording.

Easy Installation & Angle Adjustment

The camera can be installed easily, with no need for an additional adaptor box. The flexible cardan axis bracket enables you to adjust the camera's pointing direction and the field of view easily & effortlessly.

12 VDC for Stable Power Supply

Support a wide range of voltage power supply with higher adaptability, you can easily plug camera into an outlet for the power supply.

IP67 - Superior Weatherproofing for Tough Conditions

Designed to withstand extreme weather, this security camera has IP67 weatherproof housing to keep out dust, water, and air. It performs well in rain, snow, and sleet, and operates in temperatures ranging from -40 °F to 140 °F (-40 °C to 60 °C), making it suitable for use in most regions, whether for your home or business.

  • -40 °F | – 40 °C

    Cold Rating

  • Plastic

    Rugged Housing

  • 140 °F | 60 °C

    Hot Rating

  • IP67

    Water Rating

  • Download ADL800 Specification

    What's in the Box (CS1EQ)
  • 1X Camera
  • 1X BNC Cable
  • 1X Power Adapter
  • 1X Mounting Screws Bag
  • 1X User's Manual For Camer
  • CS1EQ Camera
    Image sensor4K CMOS Image sensor Video Resolution3840 (H) × 2160 (V)
    Signal SystemPAL/NTSC Lens2.8mm
    Min.IlluminationColor:0.01 Lux @ (F1.6,AGC ON),0 Lux with IR Angle of View2.8 mm, horizontal FOV: 108°, vertical FOV: 59°, diagonal FOV: 127°
    Frame RateTVI: 8MP @12.5 fps, 8MP @15 fps, 4MP @25 fps, 4MP @30fps, 2MP @25 fps, 2MP @30 fps
    AHD: 8MP@15fps
    CVI: 8MP@12.5fps, 8MP@15fps
    CVBS: PAL/NTSC
    Supplement Light ModeIR light works normally, and it switches to white light when human or vehicle are detected at night.
    Supplement Light typeWhite Light,IR Supplement Light RangeIR : Up to 25 m, white Light : Up to 20 m
    Wide Dynamic RangeDigital WDR Audio/
    IR Cut FilterYes Video OutputBNC, switchable TVI/AHD/CVI/CVBS
    Image sensor4K CMOS Image sensor
    Signal SystemPAL/NTSC
    Min.IlluminationColor:0.01 Lux @ (F1.6,AGC ON),0 Lux with IR
    Frame RateTVI: 8MP @12.5 fps, 8MP @15 fps, 4MP @25 fps, 4MP @30fps, 2MP @25 fps, 2MP @30 fps
    AHD: 8MP@15fps
    CVI: 8MP@12.5fps, 8MP@15fps
    CVBS: PAL/NTSC
    Supplement Light typeWhite Light,IR
    Wide Dynamic RangeDigital WDR
    IR Cut FilterYes
    Video Resolution 3840 (H) × 2160 (V)
    Lens 2.8mm
    Angle of View 2.8 mm, horizontal FOV: 108°, vertical FOV: 59°, diagonal FOV: 127°
    Supplement Light Mode IR light works normally, and it switches to white light when human or vehicle are detected at night.
    Supplement Light Range IR : Up to 25 m, white Light : Up to 20 m
    Audio /
    Video Output BNC, switchable TVI/AHD/CVI/CVBS
    CS1EQ General
    HousingPlastic ColorWhite
    Operating PowerDC12V Operating Temperature-40 °F – 140 °F /-40 °C – 60 °C
    Indoor/OutdoorIndoor/Outdoor Weatherproof RatingIP67
    Dimension (L x W x H)138.8 mm × Ø70 mm (5.46" × Ø2.76") WeightApprox. 160 g (0.35 lb.)
    HousingPlastic
    Operating PowerDC12V
    Indoor/OutdoorIndoor/Outdoor
    Dimension (L x W x H)138.8 mm × Ø70 mm (5.46" × Ø2.76")
    Color White
    Operating Temperature -40 °F – 140 °F /-40 °C – 60 °C
    Weatherproof Rating IP67
    Weight Approx. 160 g (0.35 lb.)

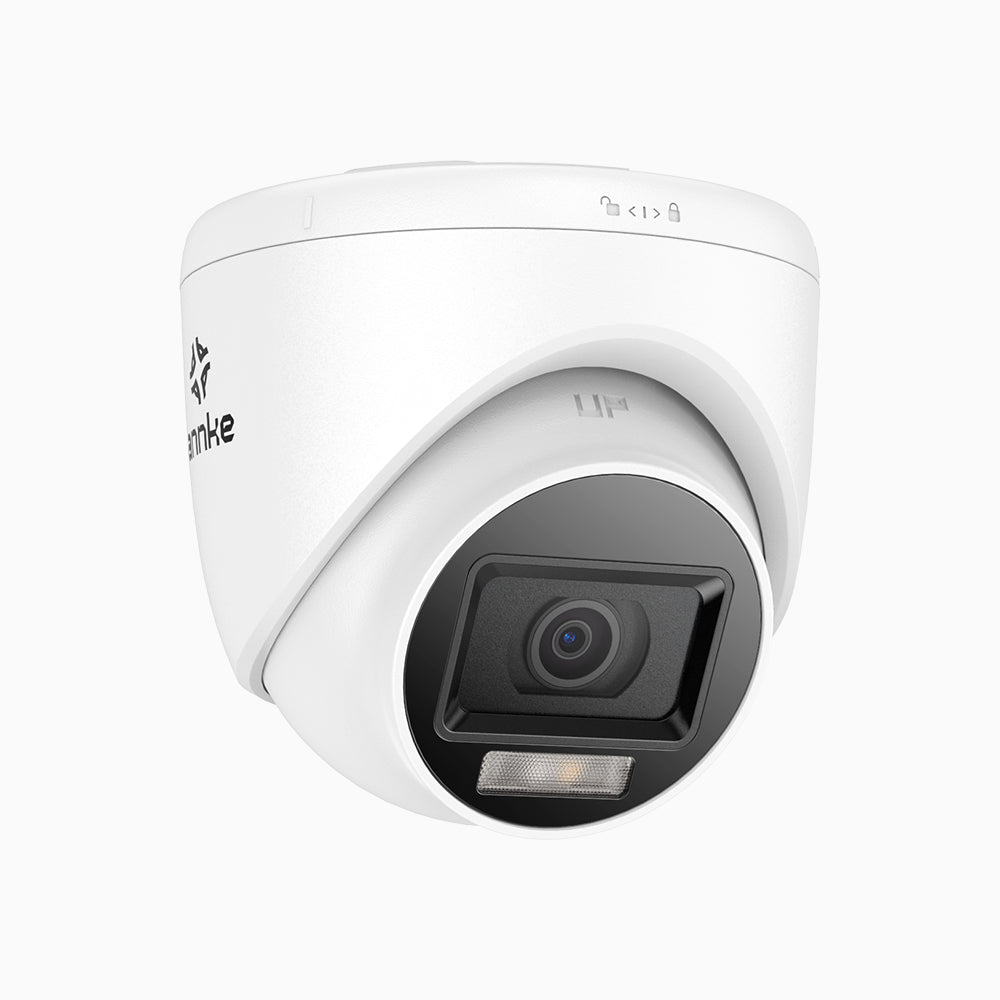

    CS1ES Camera
    Image sensor4K CMOS Image sensor Video Resolution3840 (H) × 2160 (V)
    Signal SystemPAL/NTSC Lens2.8mm
    Min.IlluminationColor:0.01 Lux @ (F1.6,AGC ON),0 Lux with IR Angle of View2.8 mm, horizontal FOV: 108°, vertical FOV: 59°, diagonal FOV: 127°
    Frame RateTVI: 8 MP @12.5 fps, 8 MP @15 fps, 4 MP @25 fps, 4 MP @30fps, 2 MP @25 fps, 2 MP @30 fps
    AHD: 8MP@15fps
    CVI: 8MP@12.5fps, 8MP@15fps
    CVBS: PAL/NTSC
    Supplement Light ModeIR light works normally, and it switches to white light when human or vehicle are detected at night.
    Supplement Light typeWhite Light & IR Supplement Light RangeIR : Up to 25 m, white Light : Up to 20 m
    Wide Dynamic RangeDigital WDR Audio/
    IR Cut FilterYes Video OutputBNC, switchable TVI/AHD/CVI/CVBS
    Image sensor4K CMOS Image sensor
    Signal SystemPAL/NTSC
    Min.IlluminationColor:0.01 Lux @ (F1.6,AGC ON),0 Lux with IR
    Frame RateTVI: 8 MP @12.5 fps, 8 MP @15 fps, 4 MP @25 fps, 4 MP @30fps, 2 MP @25 fps, 2 MP @30 fps
    AHD: 8MP@15fps
    CVI: 8MP@12.5fps, 8MP@15fps
    CVBS: PAL/NTSC
    Supplement Light typeWhite Light & IR
    Wide Dynamic RangeDigital WDR
    IR Cut FilterYes
    Video Resolution 3840 (H) × 2160 (V)
    Lens 2.8mm
    Angle of View 2.8 mm, horizontal FOV: 108°, vertical FOV: 59°, diagonal FOV: 127°
    Supplement Light Mode IR light works normally, and it switches to white light when human or vehicle are detected at night.
    Supplement Light Range IR : Up to 25 m, white Light : Up to 20 m
    Audio /
    Video Output BNC, switchable TVI/AHD/CVI/CVBS
    CS1ES General
    HousingPlastic & Metal ColorWhite
    Operating PowerDC12V Operating Temperature-40 °F – 140 °F /-40 °C – 60 °C
    Indoor/OutdoorIndoor/Outdoor Weatherproof RatingIP67
    Dimension (L x W x H)84.6 mm × Ø 85.02 mm (3.33" × Ø 3.35") WeightApprox. 230 g (0.51 lb.)
    HousingPlastic & Metal
    Operating PowerDC12V
    Indoor/OutdoorIndoor/Outdoor
    Dimension (L x W x H)84.6 mm × Ø 85.02 mm (3.33" × Ø 3.35")
    Color White
    Operating Temperature -40 °F – 140 °F /-40 °C – 60 °C
    Weatherproof Rating IP67
    Weight Approx. 230 g (0.51 lb.)
