NightChroma NCA500 5MP Acme Color Night Vision CCTV Camera - ANNKE Store

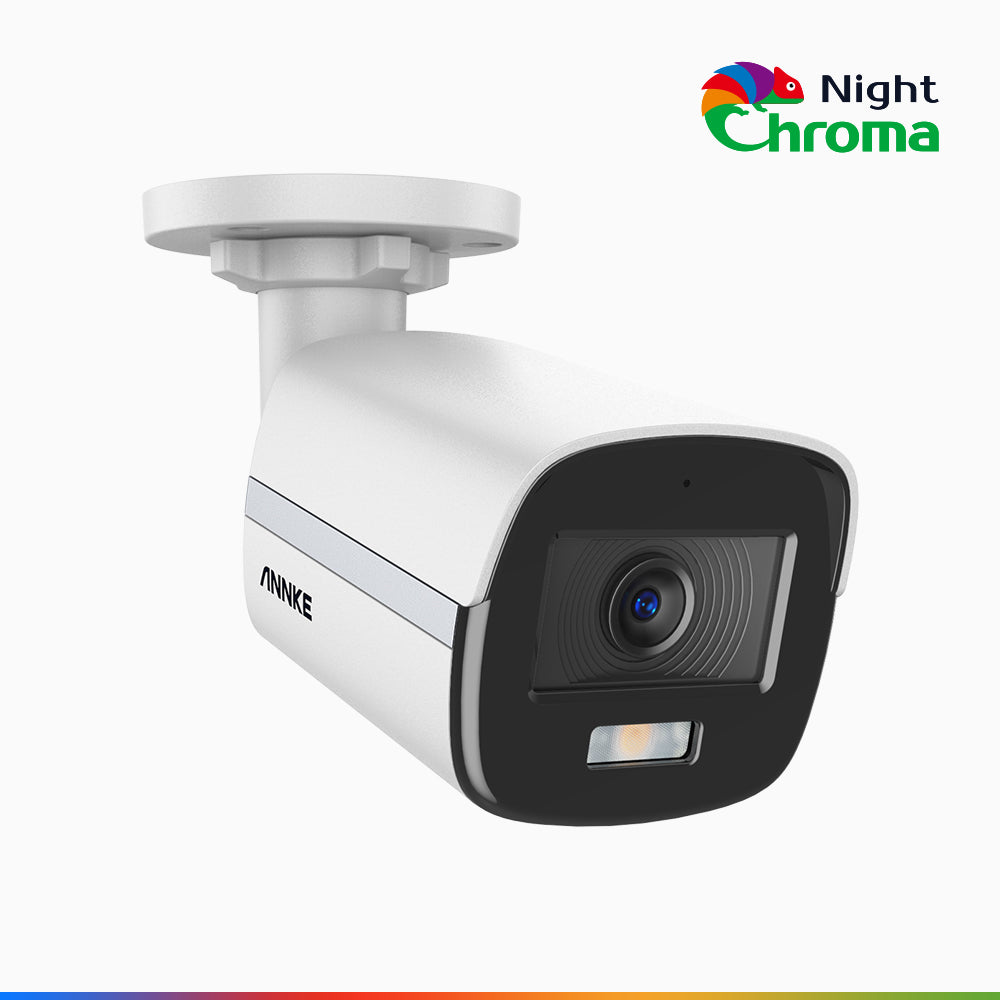

NightChromaTM NCA500 - 5MP Acme Color Night Vision Security Camera with f/1.0 Aperture (0.0005 Lux), 121° FoV, Active Alignment, IP67

NightChromaTM NCA500 - 5MP Acme Color Night Vision Security Camera with f/1.0 Aperture (0.0005 Lux), 121° FoV, Active Alignment, IP67

$71.99

$89.99

SKU: CR1CJ01

Appearance
Note: NC400 are now on 35% off DOTW sale with code DOTW02.

Secure Checkout With:

  • Tags: 100 ft - EXIR Night Vision , 5MP Super HD , ACE Color Night Vision , Bullet

    Paint Starry Night into
    5MP Colorful World

  • 5MP

    Super HD
    See Further & Clearer

  • COLOR

    Night Vision
    View Colors at Night

  • 80° FOV

    3.6 mm Lens
    Cover Wide Areas

  • IP67

    Weatherproof
    Brave All Climates

  • World’s FIRST & ANNKE-ONLY
    Acme Color Night Vision

    NightChormaTM NCA500 takes smart security to the next level with unrivaled acme color night vision. Say goodbye to boring B&W or blurry color night vision captured by traditional cameras. Instead, you can paint dark night into 5MP colorful world even in 0.0005 lux conditions without ambient lighting, or 0 lux with the supplement light.

    Only security cameras with f/1.0 super aperture can capture acme color night vision. f/1.0 aperture, the largest aperture in video surveillance, collects 4X amount of lighting than f/2.0 aperture, to produce brighter images.

    That’s the best backside illumination sensor. It increases 2X amount of light sensing areas to deliver clearer footages. The high-performance ISP image processing tech helps produce high-fidelity & colorful details.

    The unique micro-size active alignment manufacturing technique allows for the most accurate focusing, bringing the adjustment accuracy to within 4 pixels, smaller than 1/30 hair diameter.

    The soft supplement light turns on automatically in 0 lux illumination to ensure the best color night vision without glare. Remove overexposed or underexposed issues & capture 4MP footages with balanced lighting.

    2K 5MP Super HD at Smooth 20 fps

    The 5MP CMOS image sensor is capable of recording (a DVR is needed) at a real-time 30 fps in 5MP Super HD, or 30 fps in 4MP. This high frame rate will help capture the precise & vivid moments in your gardens, garages, studios, luxury or jewelry stores, candy houses.

    4 Top-of-the-Line Image Enhancement Technologies

    The wired camera adopts 4 incredible image enhancement technologies – 130 dB true WDR, 3D DNR, BLC & HLC – to provide the splendid 5MP Super HD clarity. So, whether you view the live stream by day or by moonlight, you’ll get a new level of details and colors that wasn’t possible before.

    24/7 Security with ANNKE 4K Ultra HD DVR

    ANNKE 4K UHD DVR is the perfect cornerstone for your home & business security camera system. Pairing the NCA500 wired camera with this DVR, you can get remote live stream & playback, smart motion alerts and 24/7 recording (an HDD is needed) without monthly cloud storage fees.

    Note: NCA500 needs a DVR for live stream & recording, and it CANNOT work standalone.

    Built to Brave Extreme Hot & Cold Climates

    Rated as IP67, this weatherproof camera can withstand pretty much anything, regardless heavy snowfall, torrential downpours. This camera has been tested in extreme temperatures (-40 °F to 140 °F), ensuring all-year-round protection wherever you live.

    Made from the same heavy-duty aluminum used in the construction of airplanes, the camera housing can withstand large impacts and is highly resistant to corrosion.

  • Metal

    Rugged Housing

  • 140 °F | 60 °C

    Hot Rating

  • -40 °F | -40 °C

    Cold Rating

  • IP67

    Water Rating

  • Specification

    Download NCA500 Specification

    What's in the Box
  • ➀ NCA500 Security Camera(s)
  • ➁ BNC Cables(s)
  • ➂ Mounting Screw Bag(S)(The quantity varies based on your choice.)
  • ➃ 1X User Manual
  • Camera
    Image Sensor5MP CMOS Image Sensor Video Resolution2560 (H) X 1944 (V)
    Lens3.6 mm Angle of View80.1°
    Min. Illumination0.0005 Lux@(F1.0, AGC On), 0 Lux with White Light Signal SystemTVI: 5MP@20 fps, 4MP@30 fps, 4MP@25 fps, 1080p@30 fps, 1080p@25 fps
    CVI: 4MP@30 fps, 4MP@25 fps
    AHD: 5MP@20 fps, 4MP@30 fps, 4MP@25 fps
    CVBS: PAL/NTSC
    Number of Warm Light1 Light DistanceUp to 100 ft/30 m
    DNR3D DNR Wide Dynamic Range130 dB WDR
    Video OutputHD BNC X1
    Image Sensor5MP CMOS Image Sensor
    3.6 mm(Bullet)/2.8mm(Turret)
    Min. Illumination0.0005 Lux@(F1.0, AGC On), 0 Lux with White Light
    Number of Warm Light1
    DNR3D DNR
    Video OutputHD BNC X1
    Video Resolution 2560 (H) X 1944 (V)
    Angle of View 80.1°
    Signal System TVI: 5MP@20 fps, 4MP@30 fps, 4MP@25 fps, 1080p@30 fps, 1080p@25 fps
    CVI: 4MP@30 fps, 4MP@25 fps
    AHD: 5MP@20 fps, 4MP@30 fps, 4MP@25 fps
    CVBS: PAL/NTSC
    Light Distance Up to 100 ft/30 m
    Wide Dynamic Range 130 dB WDR
    General
    HousingMetal ColorWhite
    Operating PowerDC 12 V Indoor/OutdoorIndoor/Outdoor
    Operating Temperature-40 °F – 140 °F/-40 °C – 60 °C Dimension68 mm X 70 mm X 168.2 mm (2.68" X 2.76" X 6.62")
    Weatherproof RatingIP67 Weight0.77 lb./ 350 g
    HousingMetal
    Operating PowerDC 12 V
    Operating Temperature-40 °F – 140 °F/-40 °C – 60 °C
    Weatherproof RatingIP67
    Color White
    Indoor/Outdoor Indoor/Outdoor
    Dimension 68 mm X 70 mm X 168.2 mm (2.68" X 2.76" X 6.62")
    Weight 0.77 lb./ 350 g

    Customer Reviews

    Based on 5 reviews
    80%
    (4)
    20%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    N
    Neil McGilvray
    Annke Night Chroma

    Nice and clear One of them Suts down at around 12 midnight and come back on around dawn.

    C
    Customer
    q?

    CAN THIS BE CONNECTED TO EXISTING SYSTEMS/

    C
    Christopher Forster
    Brilliant little camera

    Excellent quality, picture excellent, and color at night unbelievable, the only thing we have found is don't have strong light Infront of camera at night the inbuilt light is sufficient.

    L
    Larry
    Excellent in the dark!

    I replaced some older IR cameras whose LED's no longer functioned. This NCA500 is fantastic. I can read a licence plate from about 30' during the day. At night the resolution isn't good enough, although I haven't tried it with the supplemental light. I prefer to leave the light off. Ambient street lighting and porch light are completely sufficient. You can actually see clouds in the sky at midnight, that's how good this camera is without added light.

    If you view the camera in live view, the resolution isn't very good. But if you go into replay mode you can see all the resolution.

    The initial set up of the DVR and remote viewing is tricky, but I managed to figure it out. Once set up, it is easy to view remotely.

    P
    Pavlo Lavchenko
    Surprisingly good in the dark

    Put these bad boys up waiting for sunset, and I can’t believe how good they are even in pitch black. It isn’t very noisy thanks to the noise reduction technology, and I thought it would be very blurry, but it is actually pretty decent. Daytime quality is good too. Build of the camera is nice and weighty due to the metal body, and I do like the fact there are so many PTz options.

    all in all an excellent camera.
