4K 16 Channel Hybrid 5-in-1 Digital Video Recorder, Human & Vehicle Detection, H.265+, Dual Hard Drive Bays, Line Crossing Detection, Intrusion Detection & Motion Detection

SKU: AU-D961BB000-V2
$269.99
$299.99
$269.99
HDD Capacity: NO HDD
Add-on: NO
Subtotal: $269.99
4K 16 Channel Hybrid 5-in-1 Digital Video Recorder, Human & Vehicle Detection, H.265+, Dual Hard Drive Bays, Line Crossing Detection, Intrusion Detection & Motion Detection

4K 16 Channel Hybrid 5-in-1 Digital Video Recorder, Human & Vehicle Detection, H.265+, Dual Hard Drive Bays, Line Crossing Detection, Intrusion Detection & Motion Detection

$299.99 $269.99

4K 16 Channel Hybrid 5-in-1 Digital Video Recorder, Human & Vehicle Detection, H.265+, Dual Hard Drive Bays, Line Crossing Detection, Intrusion Detection & Motion Detection

$299.99 $269.99
HDD Capacity: NO HDD
Add-on: NO

Top-Line H.265+ Video Compression

ANNKE’s new 4K DVR is equipped with the latest H.265+ video compress, an upgrade from H.265 coding, delivering smaller file sizes & longer record time, and offering improved network performance & faster live stream than H.264/H.265 systems.

Powerful 5-in-1 Compatibility

The 4K digital video recorder works with HD TVI, AHD, CVI, CVBS and IP security cameras for 24/7 recording. You can connect up to 16 CCTV analog surveillance cameras (up to 8MP), and 16 IP security cameras (up to 4K resolution) for all-angle coverage & seamless integration.

Up to True 4K Stream & Record

Connect any up to 8MP CCTV analog and IP video camera to the compatible DVR for 24/7 4K live stream & recording. Locate the important motion-triggered events for fast playback without replaying “empty” videos frame by frame.

All-Around Smart Detection Ways

The DVR supports line crossing, intrusion & motion detection ways for all channels and sudden scene change detection for 2 channels, as well as video tampering and video loss. Upon there is anything usual, you’ll receive instant alerts.

Easy Remote Access with All Smart Devices

Access the DVR directly to manage all security cameras with your iPhone or Android smartphones, computer, and most common browsers, including Google Chrome, Firefox, Safari, Internet Explorer, etc. remotely, when you are in the office or travelling.

Perfectly Work with DVR

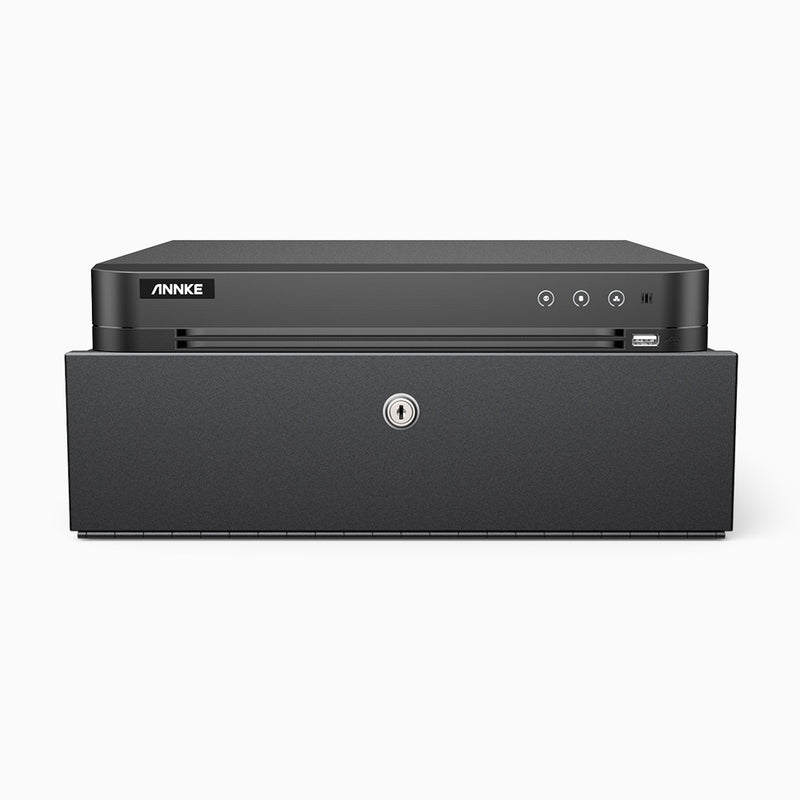

The DVR lock box is designed to not just protect your valuables surveillance recorders, but to keep your switches, test equipment or patch cords safe from unauthorized users.
Black, static-resistant powder coat finish withstands scratches, and abrasions and protects your sensitive electronics from damaging static electricity. The removable top panel facilitates additional access to equipment and wiring.
The lock box allows for two mounting options. You can mount it on top surfaces or onto a wall with mounting brackets (not included).



Specifications

Download 16CH 4K Ultra HD Specification

Video & Audio
Video CompressionH.264+/H.264/H.265/H.265+ Video Input16CH Analog HD/Analog + 16CH IP
Video OutputCVBS; VGA up to 1080p; HDMI up to 4K Audio Input/Output/
Supported Analog Camera TypesSupport HD TVI Input: 8MP, 5MP, 4MP, 3MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps;
Support AHD Input: 5MP, 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
Support CVI Input: 5MP, 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
Support CVBS Input
Analog HD Playback Resolution4K@8 fps/5MP@12 fps/4MP@15 fps/3MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
IP Camera Input16CH IPC Recording ResolutionUp to 8MP
IPC Playback ResolutionUp to 8MP Max Playback Channel16CH
Video CompressionH.264+/H.264/H.265/H.265+
Video OutputCVBS; VGA up to 1080p; HDMI up to 4K
Supported Analog Camera TypesSupport HD TVI Input: 8MP, 5MP, 4MP, 3MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps;
Support AHD Input: 5MP, 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
Support CVI Input: 5MP, 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
Support CVBS Input
IP Camera Input16CH
IPC Playback ResolutionUp to 8MP
Video Input 16CH Analog HD/Analog + 16CH IP
Audio Input/Output
Analog HD Playback Resolution 4K@8 fps/5MP@12 fps/4MP@15 fps/3MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
IPC Recording Resolution Up to 8MP
Max Playback Channel 16CH
Hard Drive
HDD2 SATA Interface HDD CapacityUp to 10 TB Capacity
HDD2 SATA Interface
HDD Capacity Up to 10 TB Capacity

External Interface
Network InterfaceRJ45 X1 (10/100 M/1000 M) USBUSB 2.0 X1 + USB 3.0 X 1

RS485Support
Network InterfaceRJ45 X1 (10/100 M/1000 M)

USB USB 2.0 X1 + USB 3.0 X 1
RS485 Support
General
Working Temperature-14 °F — 131 °F/-10 °C — 55 °C Dimensions (W X H X D)380 X 320 X 48 mm (15.0 X 12.6 X 1.9 Inches)
Weight (Without Hard Disk) ≤ 2 kg (4.4 lbs.) (Without HDD)
Working Temperature-14 °F — 131 °F/-10 °C — 55 °C
Weight (Without Hard Disk) ≤ 2 kg (4.4 lbs.) (Without HDD)
Dimensions (W X H X D) 380 X 320 X 48 mm (15.0 X 12.6 X 1.9 Inches)
