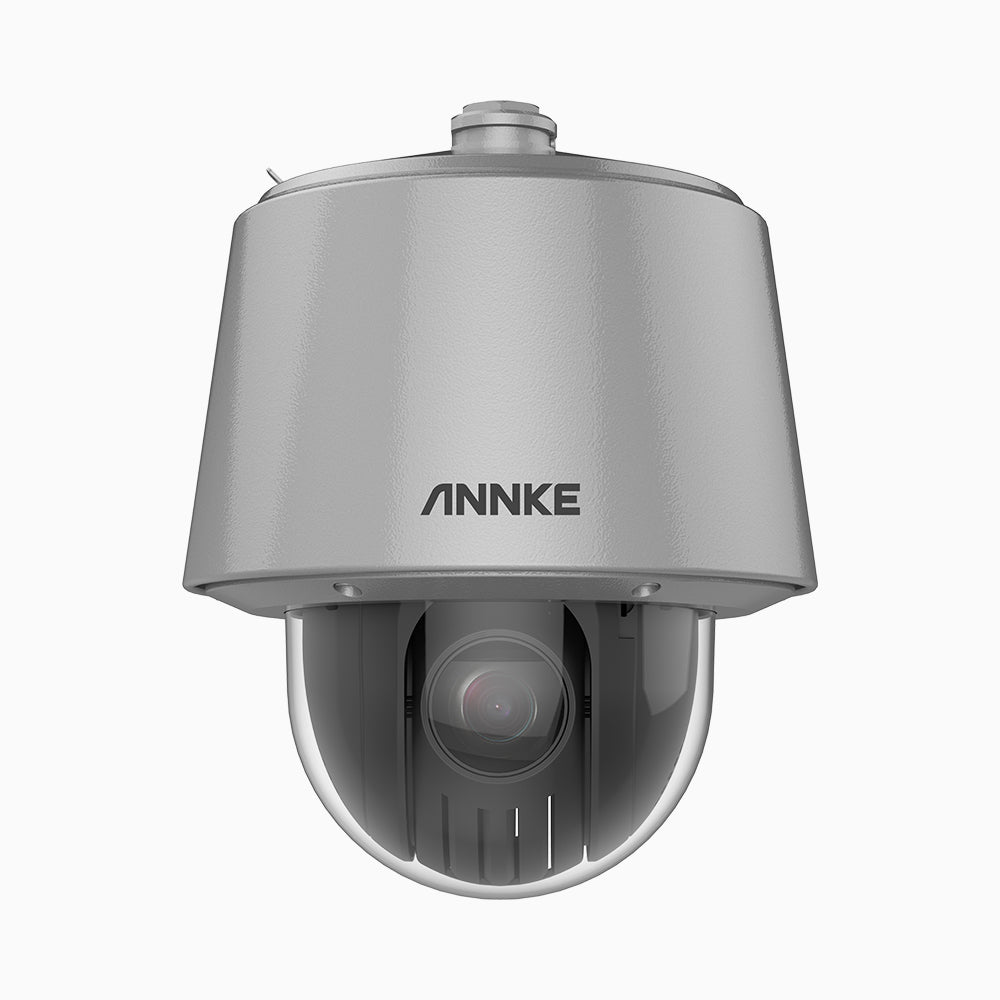

AZC200 - Anti-Corrosion PoE PTZ Speed Dome Security Camera, 32X Optical Zoom, IK10 Vandal-Resistant & IP67, Smart Tracking & Face Capture, 1080p Resolution

AZC200 - Anti-Corrosion PoE PTZ Speed Dome Security Camera, 32X Optical Zoom, IK10 Vandal-Resistant & IP67, Smart Tracking & Face Capture, 1080p Resolution

$2,999.99

SKU: I61BG

Note: NC400 are now on 35% off DOTW sale with code DOTW02.

Secure Checkout With:

  • Tags: 1080P , Color Night Vision , Dome , Optical Zoom , Pan Tilt

    Anti-Corrosion Coated Housing & IP67 All-Weather Resistance

    Constructed of industrial-grade stainless steel and anti-corrosion coating, this NEMA 4X-certified camera can withstand heavy impact in harsh weather conditions, which is ideal for applications such as coastlines, docks, chemical plants, and more.

    IP67 rated, this waterproof camera can be used for extreme indoor and outdoor use from -40 °F/-40° C to 158 °F/70° C. Including IK10 riot rating, 6KV lightning protection rating, it ensures that security cameras work seamlessly in all hot, cold or severe weather.

    32X Optical Zoom: No Evidence Escapes

    Equipped with a 5.9 mm to 188.8 mm@F1.5 lens, this camera can deliver the incomparable 32X optical zoom and 16X digital zoom. Zoom in can clearly see more details of distant objects, or zoom out can get a wider and larger field of vision. Optical zoom can ensure that the picture is clear and not affected.

    Cover Ultra-wide Areas by High-Speed Pan & Tilt Tour

    With 360° pan & 90° tilt, this camera allows you to view your world from every angle. Supporting 8 patrol scan(up to 32 presets for each patrol), 4 pattern scan(record time over 10 minutes for each scan).

    Marvelous Visual Experience with Color Night Vision

    Capturing every event in crisp 1080p Full HD clarity by 1/1.8" progressive scan CMOS sensor, this camera has exceptional low-light visibility tech and deliver up to full color night vision in almost complete darkness. (The image will turn into black & white when in 0.0002 lux condition.)

    Smart Tracking

    With multiple tracking methods, including: manual tracking, event tracking, auto-tracking, to automatically follow the moving person & car.

    Face Capture & License Plates Detection

    Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face. This HD PTZ camera enables you to view small & distant vehicle details, such as license plates, car model, color, etc.

    Up to 12 Smart Events for Accurate Alerts

    The camera uses an intelligent algorithm based on a deep learning platform and supports 7 types of intelligent detection functions to provide more accurate motion monitoring and alarm, including: Intrusion detection, line crossing detection, region entrance detection, region exiting detection, loitering detection, people gathering detection, fast moving detection, parking detection, unattended baggage detection, object removal detection, vandal-proof alarm, audio exception detection.

    Clearer Image Than You Expect

    The anti-corrosion camera adopts 5 incredible image enhancement technologies – 140 dB true WDR, 3D DNR, defog, EIS & HLC – to provide the splendid HD clarity. So, whether you view the live stream by day or by moonlight, you’ll get a new level of details and colors that wasn’t possible before.

    Top-Notch H.265+ Video Format

    This H.265+ PoE IP camera provides smoother live stream, records longer videos and consumes less bandwidth & storage space, compared with H.265, H.264+ & H.264 IP cameras.

    Multiple Recording & Storage Options

    This versatile network camera can record videos onto your microSD card (up to 2567 GB), NVR and NAS, no monitoring & no monthly cloud storage fees. You’ ll have full control over your recordings and manage them whenever.

    Hi-PoE or 24VAC Power for Easy Installation

    Thanks to Power over Ethernet (PoE) technology, this PTZ outdoor security camera can transmit videos and be charged simultaneously via Hi-POE, or plug it into an outlet for the power supply.



    Specification
    Camera
    Image Sensor 1/1.8” progressive scan CMOS
    Min. Illumination Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON)
    Shutter Speed 1/1s ~ 1/30,000s
    Slow Shutter Yes
    Focus Semi-auto,manual,auto
    Day & Night ICR
    Day/Night Switch Day, night, auto, scheduled-switch
    BLC Yes
    WDR 140 dB WDR
    HLC Yes
    3D DNR Yes
    Defog Yes
    EIS Yes. Built-in gyroscope to improve EIS performance.
    Regional Exposure  yes Yes
    Regional Focus  yes Yes
    White Balance Auto,ATW,sodium lamp,fluorescent lamp,indoor,outdoor,MWB,Locked WB
    Digital Zoom 16 ×
    Optical Zoom 32 ×
    Privacy Mask Up to 24 masks,polygon region ,mosaic mask ,mask color configurable
    DORI Detect(25px/m): 2604.1 m
    Observe(63px/m): 1033.4 m
    Recognize(125px/m): 520.8 m
    Identify(250px/m): 260.4 m
    SNR ≥52dB
    General Function Mirror, password protection, watermark, IP address filter
    Selection Parameter
    Specific Protection Anti-Corrosion
    Lens
    Focal Length 5.9 mm to 188.8 mm, 32 × Optical
    Zoom Speed Approx. 4.5 s
    FOV Horizontal field of view: 59.8° to 3.3° (wide-tele),
    Vertical field of view: 33.7° to 1.9° (wide-tele),
    Diagonal field of view: 65° to 3.8° (wide-tele)
    Aperture F1.5
    PTZ
    Movement Range (Pan) 360°
    Movement Range (Tilt) -15° to 90° (auto flip)
    Pan Speed  pan speed: Configurable from 0.1° to 300°/s; preset speed: 540°/s
    Tilt Speed  tilt speed: Configurable from 0.1° to 240°/s, preset speed 400°/s
    Proportional Zoom Yes
    Presets 300
    Patrol Scan 8 patrols, up to 32 presets for each patrol
    Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
    Power-off Memory Yes
    Park Action Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
    3D Positioning Yes
    PTZ Status Display Yes
    Preset Freezing Yes
    Scheduled Task Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
    Video
    Max. Resolution 1920 × 1080
    Main Stream 50Hz:25fps(1920×1080,1280×960,1280×720)
    60Hz:30fps(1920×1080,1280×960,1280×720)
    Sub-Stream 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
    60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
    Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
    60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
    Video Compression H.265,H.264,MJPEG
    Video Bit Rate 32 Kbps ~ 16384 Kbps
    H.264 Type Baseline profile,main profile,high profile
    H.265 Type Main profile
    H.264+ Yes
    H.265+ Yes
    SVC Yes
    ROI Fixed region
    Audio
    Audio Compression G.711alaw,G.711ulaw,G.722.1,G.726,MP2L2,PCM
    Audio Bit rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)
    Smart Features
    Face Capture Support detecting up to 30 faces at the same time. Support detecting, tracking,capturing, grading, selecting of face in motion, and output the best face picture of the face.
    Road Traffic Support vehicle detection (license plate number,vehicle model, and vehicle color recognition)
    Basic Event motion detection,video tampering alarm,alarm input and output,exception
    Smart Event Intrusion detection,line crossing detection,region entrance detection,region exiting detection,loitering detection,people gathering detection,fast moving detection,parking detection,unattended baggage detection,object removal detection,vandal-proof alarm,audio exception detection
    Smart Tracking Manual tracking,event tracking,auto-tracking
    Smart Record ANR,Dual-VCA
    Alarm Linkage Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record,Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
    Network
    Network Storage NAS (NFS, SMB/ CIFS),ANR
    Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
    API Open-ended API, ISAPI,Hikvision SDK,Third-party management platform,Ehome,ISUP,ONVIF (Profile S, Profile G, Profile T)
    Simultaneous Live View Up to 20 channels
    User/Host Up to 32 users. 3 levels: Administrator, Operator and User
    Smooth Streaming yes
    Security Measures User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering encryption; IEEE 802.1x port-based network access control; IP address filtering
    Client iVMS-4200,Hik-Connect,Hikcentral
    Web Browser IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
    Supplement Detection
    Compass Yes
    Interface
    Communication Interface RJ45, self-adaptive 10M/100M Ethernet port
    On-board Storage Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB;NAS (NFS, SMB/CIFS), ANR
    Alarm Input 7 alarm inputs
    Alarm Output 2 alarm outputs
    Audio Input 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
    Audio Output 1 audio output, line level, impedance: 600 Ω
    Video Output 1.0V[p-p]/75Ω,PAL,NTSC,BNC connector
    RS-485 HIKVISION, Pelco-P, Pelco-D, self-adaptive
    General
    Power 24 VAC, max. 45 W (including max. 5 W for heater), Hi-PoE
    Material SUS316L stainless steel
    Operating Conditions   Temperature:-40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
    Web Client Language 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
    Protection Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5,IP67 Standard,IK10
    General
    Anti-Corrosion   NEMA 4X
