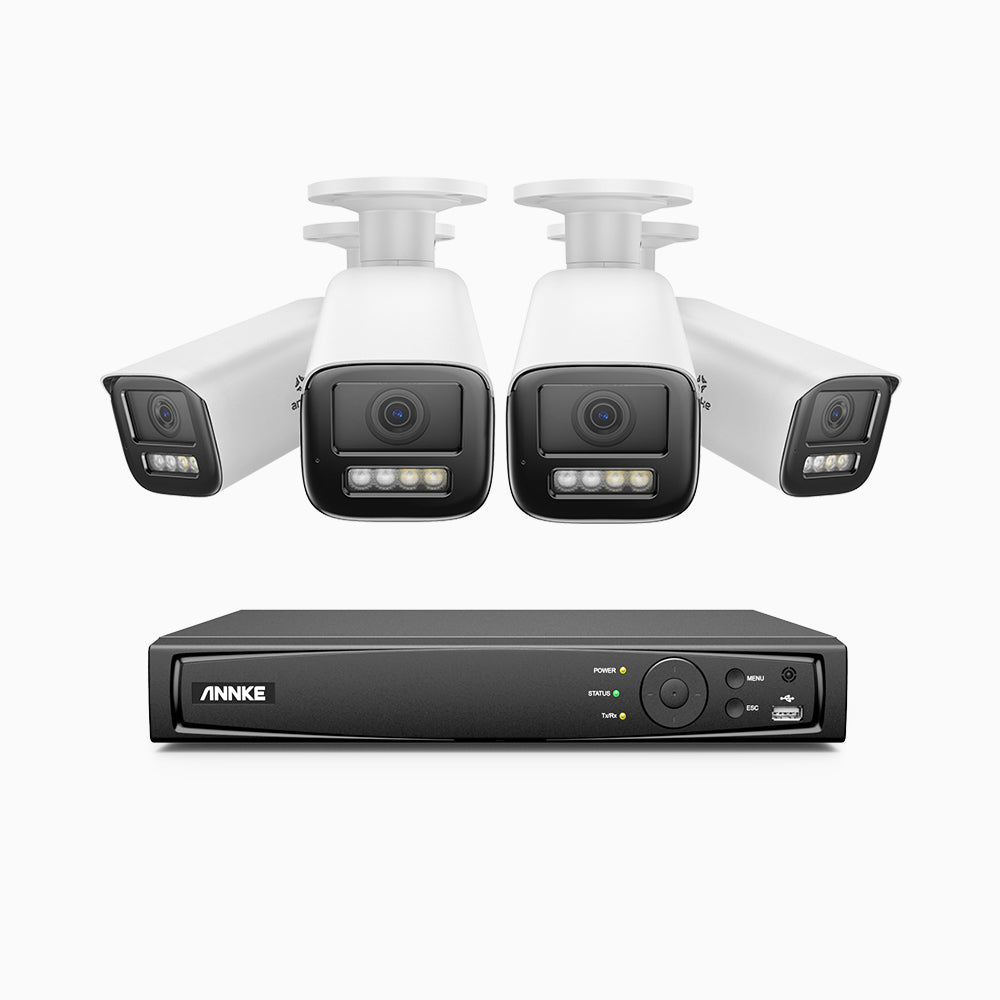

AZH800 - 4K 8 Channel 4 Cameras PoE Security System, 4X Optical Zoom, 2.8 - 12 MM Motorized Varifocal Lens, Smart Dual Light Night Vision, Motion Detection 2.0, Built-in Microphone, Siren & Strobe Alarm, Upgraded Version

SKU: AU-N48PAW-I91DE04
$567.99
$789.99
$567.99
Appearance: Bullet
HDD Capacity: NO HDD
Subtotal: $567.99
AZH800 - 4K 8 Channel 4 Cameras PoE Security System, 4X Optical Zoom, 2.8 - 12 MM Motorized Varifocal Lens, Smart Dual Light Night Vision, Motion Detection 2.0, Built-in Microphone, Siren & Strobe Alarm, Upgraded Version

AZH800 - 4K 8 Channel 4 Cameras PoE Security System, 4X Optical Zoom, 2.8 - 12 MM Motorized Varifocal Lens, Smart Dual Light Night Vision, Motion Detection 2.0, Built-in Microphone, Siren & Strobe Alarm, Upgraded Version

$789.99 $567.99

AZH800 - 4K 8 Channel 4 Cameras PoE Security System, 4X Optical Zoom, 2.8 - 12 MM Motorized Varifocal Lens, Smart Dual Light Night Vision, Motion Detection 2.0, Built-in Microphone, Siren & Strobe Alarm, Upgraded Version

$789.99 $567.99
Appearance: Bullet
HDD Capacity: NO HDD

ANNKE AZH800

Zoom in on Details Clearer As Before

View Clear Details by 4X Optical Zoom

This IP security camera adopts a unique 2.8 to 12 mm motorized Varifocal lens, which can focus on a small area in astonishing detail or show a larger scene for maximum coverage by 4x optical zoom.

Optimize Your Security with Flexible Lighting Option

You can select the lighting mode that best suits your requirements: 24/7 color, IR or smart dual-light. In smart dual-light mode, the camera maintains infrared illumination until an event triggers color imaging to capture critical details. White light and infrared fill light is up to 30-50 m distance for bright night imaging.

Best 4K Ultra HD with 1/1/2.4" Sensor

The 1/2.4" Progressive Scan CMOS sensor in the camera can record 4K Ultra HD video that is 3840x2160 pixels in size. You can freely zoom in or zoom out the details in the image, whether it is the vehicle information in the distance, such as the license plate, or the near image.

Active Deterrence with Strobe & Spotlight Alarms

The AI camera can trigger the alarm varying from the detected object, a human, a vehicle, or other object based on the deep-learning algorithm.

Built-in motion-triggered spotlight and strobe alarms provide the camera with a new level of defense to your property. The alarms will be triggered when whenever potential intruders are detected. Always deter intrusions before your action.

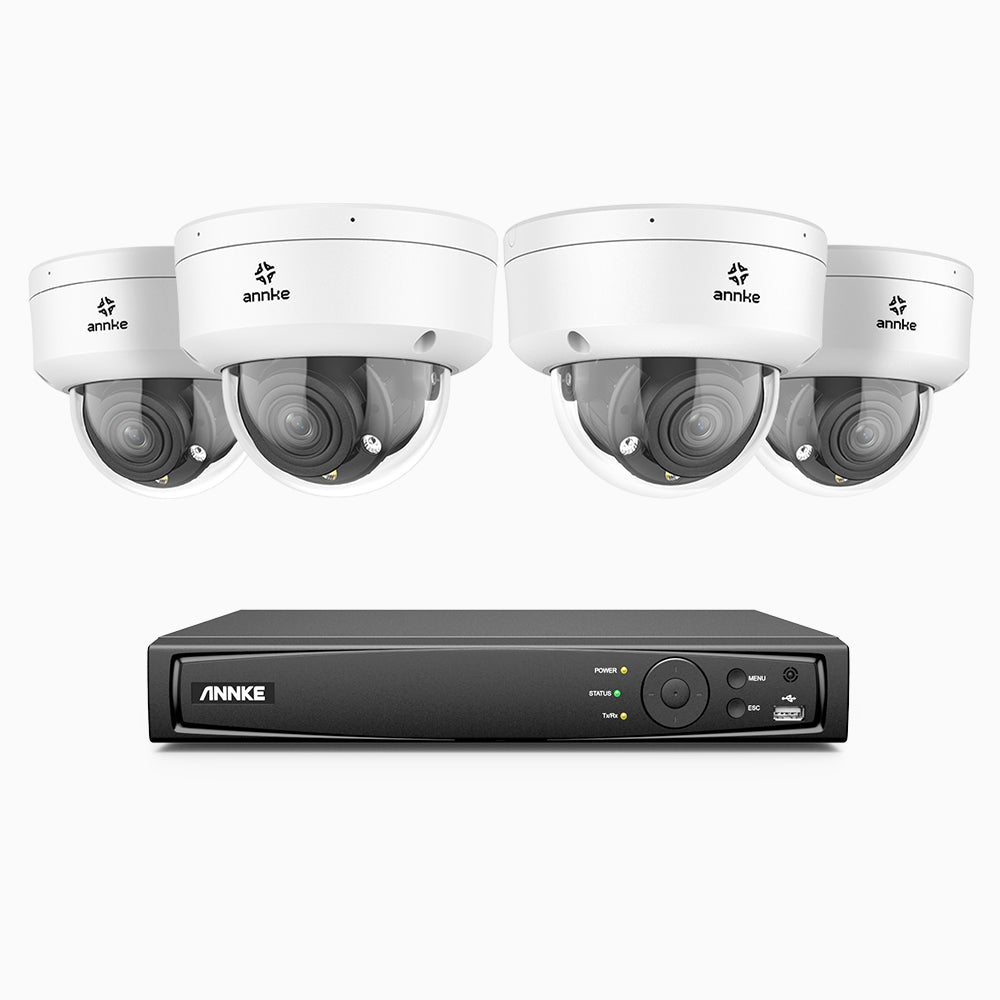

(The I91DE bullet camera supports a siren & strobe alarm, but the I91DQ dome camera only supports a strobe alarm).

Listen & Speak from Any Location

Built-in microphone and speaker, it enables you to actively engage with your surroundings by two-way communication capabilities. Whether you need to give instructions to your security personnel, communicate with visitors at your doorstep, or even deter potential intruders, it allows you to do so in real-time.
(The I91DE bullet camera supports two-way audio, but the I91DQ dome camera does not support two-way audio, only a microphone).

Built Tough for Any Weather - IP67 & IK10

With IP67 weatherproof protection, this camera can withstand pretty much anything, regardless heavy snowfall, torrential downpours.

The rugged dome security camera is manufactured with an IK10 vandal-proof rating. It means that this camera can withstand devastating violent impacts.

  • -22 °F | -30 °C

    Cold Rating

  • Metal & Plastic

    Rugged Housing

  • 140 °F | 60 °C

    Hot Rating

  • IP67

    Water Rating

Small on Prices, Big on Features

  • Local & Storage

    Support up to 256 GB micro SD card (not included)

  • PoE or DC Power

    Power on the camera via PoE with an NVR/PoE injector, or plug it to an outlet for power supply.

  • Advanced H.265+ coding

    H.265+ coding helps the camera record longer videos and consumes less bandwidth. Save your budget on buying more HDDs.

  • Face Capture

    Need to change the VCA resource while face capture photo.

Download AZH800 Specification

What's in the Box
  • 1X ACZ800 Camera
  • 1X Mounting Screw Bag
  • 1X Drill Template
  • 1X Metal Adapter Plate
  • 1X 1M Network cable
  • 1X User Manual
  • 1X Waterproof Lid"
Camera
Image Sensor1/2.4" Progressive Scan CMOS Max resolution3840*2160(8MP)
Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Substream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC Built-in MicrophoneRecord with audio, environment noise filtering
Video CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Built-in SpeakerMax. power consumption: 2.0 W, max. sound pressure level: 10 cm: 95 dB.
Video Bitrate32 Kbps - 16 Mbps Lens2.8 to 12 mm motorized varifocal
DORID: 68 to 200 m, O: 27 to 79 m, R: 13.6 to 40 m, I: 6.8 to 20 m Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Angle of ViewHorizontal FOV 106° to 35.6°, vertical FOV 55.9° to 20°, diagonal FOV 127.4° to 40.8° Supplement Light TypeSmart Dual-Light, IR, White Light
Supplement Light RangeUp to 50 m(I91DE) / Up to 30 m(I91DQ) Motion detection 2.0Supoort, include Human & Vehicle detection
Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
APIOpen Network Video Interface Version (Profile S, Profile T, Profile G),ISAPI Web BrowserPlug-in required live view: IE 10, IE 11,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
General FunctionRotate mode, mirror, password protection, remote access APPPC: Windows, Mac OS; Smartphone: iOS, Android
Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
Image Sensor1/2.4" Progressive Scan CMOS
Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
Video CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bitrate32 Kbps - 16 Mbps
DORID: 68 to 200 m, O: 27 to 79 m, R: 13.6 to 40 m, I: 6.8 to 20 m
Angle of ViewHorizontal FOV 106° to 35.6°, vertical FOV 55.9° to 20°, diagonal FOV 127.4° to 40.8°
Supplement Light RangeUp to 50 m(I91DE) / Up to 30 m(I91DQ)
Image EnhancementBLC, HLC, 3D DNR
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light
APIOpen Network Video Interface Version (Profile S, Profile T, Profile G),ISAPI
Region of Interest (ROI)1 fixed region for main stream
General FunctionRotate mode, mirror, password protection, remote access
Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
Max resolution 3840*2160(8MP)
Substream 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Built-in Microphone Record with audio, environment noise filtering
Built-in Speaker Max. power consumption: 2.0 W, max. sound pressure level: 10 cm: 95 dB.
Lens 2.8 to 12 mm motorized varifocal
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Supplement Light Type Smart Dual-Light, IR, White Light
Motion detection 2.0 Supoort, include Human & Vehicle detection
Wide Dynamic Range 120 dB WDR
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
Web Browser Plug-in required live view: IE 10, IE 11,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Privacy Mask 4 programmable polygon privacy masks
APP PC: Windows, Mac OS; Smartphone: iOS, Android
General
HousingMetal & Plastic(I91DE) /Metal (I91DQ) StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB
ColorWhite Hardware ResetYes
Operating Power12 VDC ± 25%, 0.9 A, max. 10.8 W, PoE: IEEE 802.3af, Class 3, max. 12.9 W(I91DE)
12 VDC ± 25%, 0.8 A, max. 9.6 W, PoE: IEEE 802.3af, Class 3, max. 12 W(I91DQ)
Operating Conditions-22 °F – 140 °F/-30 °C – 60 °C.  Humidity 95% or less (non-condensing)
Indoor/Outdoor UseIndoor/Outdoor Interface ProtectionIP67(I91DE) / IP67, IK08(I91DQ)
Dimension (L X W X H)105 mm × 285.8 mm (Ø4.13" × 11.25")(I91DE) /Ø 121.5 mm × 97.6 mm (Ø 4.78" × 3.84")(I91DQ) WeightApprox. 805 g (1.8 lb.) (I91DE)  /Approx. 540 g (1.2 lb.)(I91DQ)
HousingMetal & Plastic(I91DE) /Metal (I91DQ)
ColorWhite
Operating Power12 VDC ± 25%, 0.9 A, max. 10.8 W, PoE: IEEE 802.3af, Class 3, max. 12.9 W(I91DE)
12 VDC ± 25%, 0.8 A, max. 9.6 W, PoE: IEEE 802.3af, Class 3, max. 12 W(I91DQ)
Indoor/Outdoor UseIndoor/Outdoor
Dimension (L X W X H)105 mm × 285.8 mm (Ø4.13" × 11.25")(I91DE) /Ø 121.5 mm × 97.6 mm (Ø 4.78" × 3.84")(I91DQ)
Storage Built-in microSD/SDHC/SDXC Slot, up to 512 GB
Hardware Reset Yes
Operating Conditions -22 °F – 140 °F/-30 °C – 60 °C.  Humidity 95% or less (non-condensing)
Interface Protection IP67(I91DE) / IP67, IK08(I91DQ)
Weight Approx. 805 g (1.8 lb.) (I91DE)  /Approx. 540 g (1.2 lb.)(I91DQ)
