ANNKE E200 1080P 8 Channel 4 Cameras Wired Security System - ANNKE Store

E200 – 1080p 8 Channel 4 Cameras Outdoor Wired Security CCTV System, Smart DVR with Human & Vehicle Detection, H.265+, 100 ft Infrared Night Vision

E200 – 1080p 8 Channel 4 Cameras Outdoor Wired Security CCTV System, Smart DVR with Human & Vehicle Detection, H.265+, 100 ft Infrared Night Vision

$131.99

$177.99

SKU: DW81KD+C51BH*4

Appearance
Color
HDD Capacity
Note: NC400 are now on 35% off DOTW sale with code DOTW02.

Secure Checkout With:

  • Tags: 1080P , 4 , 8CH DVR , Bullet , EXIR Night Vision , Turret

    E200 Series

    Best All-in-One
    Security System
    at Every Budget

    Best All-in-One Security
    System at Every Budget

  • 8CH + 2CH

    DVR
    Support Max. 10 Cams

  • 4 CAMS

    1080p Full HD
    Cover Every Angle

  • H.265+

    Longer
    Recording Time

  • 100 FT

    EXIR Night Vision
    View Clearly at Night

  • Unrivaled 1080p Full HD in All Environments

    E200 has been tested in almost every scenario in your daily life, garages, front doors, stores, etc. both hot & cold temperatures. The cameras can still shoot stable & high-fidelity footages without glare in every testing environment.

    24/7 Recording Even Without Internet

    This DVR system is capable of running 24/7 without a break and can be used without being connected to the Internet. It means that the data can only be accessed directly from the DVR. For remote access & playback, push notifications & other smart features, network is required.

    Bank-Level Encryptions

    Secured by bank-level encryptions, ANNKE private protocols, unique activation & two-factor verification, the video transmission & downloading are extremely hackproof from the top to bottom.

    Advanced H.265+ Video Format

    ANNKE H.265+ coding helps the camera record longer videos and consumes less bandwidth. Quadruple H.265+/H.265/H.264+/H.264 coding allows for maximum encryptions and backward compatibility with legacy platforms.

  • Small File Sizes

    Send smaller file sizes to the network video recorder without losing 1080p quality.

  • Long Recording Time

    H.265+ coding allows for longer recording time before overwriting the older recordings.

  • Remote 1080p Live View

    View high-quality 1080p Full HD live stream on your smart devices without all the data.

  • Fully Waterproof for Outdoor Use

    This rugged & weatherproof camera is IP66-rated that can withstand all types of severe weather. Be it heavy wind, torrential downpours or freezing snowstorms even in the North American climates, the camera braves them all.

    The solid housing, made from the most high-quality ABS material (provided by SABIC, the 2nd largest public company in Middle East & Saudi Arabia), provides fast heat dissipation & long lifespan without fading just the same as the metal housing.

  • ABS

    Rugged Housing

  • 140 °F | 60 °C

    Hot Rating

  • -40 °F | -40 °C

    Cold Rating

  • IP66

    Water Rating

  • Remote Viewing on the Go

    This all-in-one system is designed for use with our innovative & intuitive ANNKE Vision App. You can quickly & easily control your system remotely via your smartphones, tablets or computers.

    Small on Prices, Big on Features

  • ONVIF Compatible

    The DVR works with ANNKE & third-party ONVIF surveillance cameras for seamless integration.

  • Customized Motion Areas

    Customize the specific motion zones, like garage, front door, etc. for much more relevant motion alerts.

  • Instant Motion Alerts

    Receive real-time app push notifications & email alerts when there are motion events.

  • 4-in-1 Compatibility

    The hybrid DVR supports up to 8 pcs TVI, AHD, TVI, CVBS analog & 2 pcs IP security cameras.

  • Specification

    Download E200 System Specification

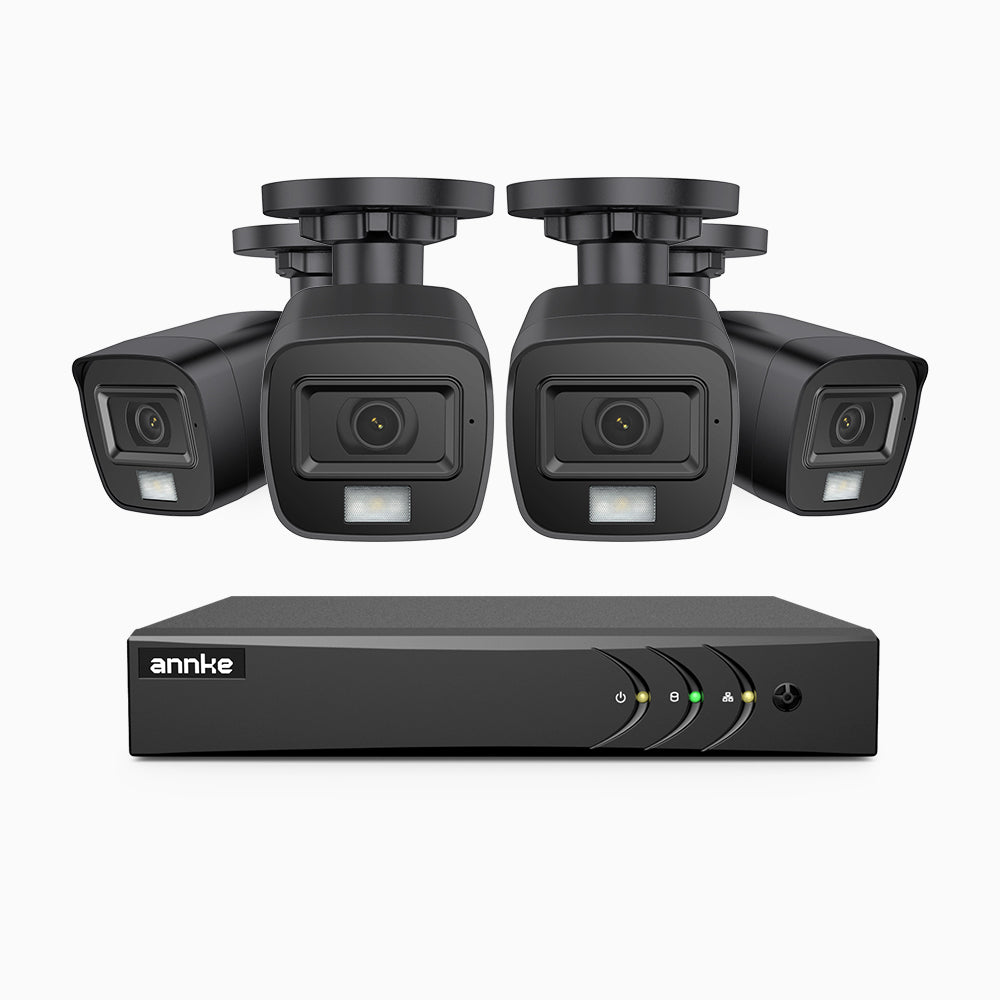

    What's in the Box
  • ➀.1X DVR
  • ➁.1080p Security Cameras
  • ➂.1X Screw Bag for the Bracket
  • ➃.1X 60 ft BNC Cable
  • ➄.1X 1-to-4 Splitter Cable
  • ➅.1X Surveillance Sticker
  • ➆.1X Power Adapter
  • ➇.1X USB Mouse
  • ➈.1X User Manual
  • ➉.1X CD
  • Camera
    Image Sensor2MP CMOS Image Sensor Video Resolution1920 (H) X 1080 (V)
    Signal SystemPAL/NTSC Lens3.6 mm
    Frame RatePAL: 1080p@25 fps; NTSC: 1080p@30 fps Min. IlluminationColor: 0.02 Lux@(F1.2, AGC On); 0 Lux with IR
    Angle of View82.2° Number of Infrared LEDs12
    Night Vision DistanceUp to 100 ft/30 m DNRSupport
    Wide Dynamic RangeDigital WDR Night Vision DistanceUp to 100 ft/30 m
    DNRSupport Wide Dynamic RangeDigital WDR
    IR-Cut FilterYes Video OutputHD BNC X1
    Image Sensor2MP CMOS Image Sensor
    Signal SystemPAL/NTSC
    Frame RatePAL: 1080p@25 fps; NTSC: 1080p@30 fps
    Angle of View82.2°
    Night Vision DistanceUp to 100 ft/30 m
    Wide Dynamic RangeDigital WDR
    DNRSupport
    IR-Cut FilterYes
    Video Resolution 1920 (H) X 1080 (V)
    Lens 3.6 mm
    Min. Illumination Color: 0.02 Lux@(F1.2, AGC On); 0 Lux with IR
    Number of Infrared LEDs 12
    DNR Support
    Night Vision Distance Up to 100 ft/30 m
    Wide Dynamic Range Digital WDR
    Video Output HD BNC X1
    General
    HousingPlastic ColorBlack (C51BH); White (C51BG)
    Operating PowerDC 12 V Operating Temperature-40 °F – 140 °F/-40 °C – 60 °C
    Indoor/OutdoorIndoor/Outdoor Weatherproof RatingIP66
    Dimension (L X W X H)2.76" X 6.08"/70 X 154.5 mm Weight0.88 lb./400 g
    HousingPlastic
    Operating PowerDC 12 V
    Indoor/OutdoorIndoor/Outdoor
    Dimension (L X W X H)2.76" X 6.08"/70 X 154.5 mm
    Color Black (C51BH); White (C51BG)
    Operating Temperature -40 °F – 140 °F/-40 °C – 60 °C
    Weatherproof Rating IP66
    Weight 0.88 lb./400 g
    What's in the Box
  • ➀.1X DVR
  • ➁.1080p Security Cameras
  • ➂.1X Screw Bag for the Bracket
  • ➃.1X 60 ft BNC Cable
  • ➄.1X 1-to-4 Splitter Cable
  • ➅.1X Surveillance Sticker
  • ➆.1X Power Adapte
  • ➇.1X USB Mouse
  • ➈.1X User Manual
  • ➉.1X CD
  • Camera
    Image Sensor2MP CMOS Image Sensor Video Resolution1920 (H) X 1080 (V)
    Signal SystemPAL/NTSC Lens3.6 mm
    Frame RatePAL: 1080p@25 fps; NTSC: 1080p@30 fps Min. IlluminationColor: 0.02 Lux@(F1.2, AGC On); 0 Lux with IR
    Angle of View82.2° Number of Infrared LEDs12
    Night Vision DistanceUp to 100 ft/30 m DNRSupport
    Wide Dynamic RangeDigital WDR IR Cut FilterYes
    Video OutputHD BNC X1
    Image Sensor2MP CMOS Image Sensor
    Signal SystemPAL/NTSC
    Frame RatePAL: 1080p@25 fps; NTSC: 1080p@30 fps
    Angle of View82.2°
    Night Vision DistanceUp to 100 ft/30 m
    Wide Dynamic RangeDigital WDR
    Video OutputHD BNC X1
    Video Resolution 1920 (H) X 1080 (V)
    Lens 3.6 mm
    Min. Illumination Color: 0.02 Lux@(F1.2, AGC On); 0 Lux with IR
    Number of Infrared LEDs 12
    DNR Support
    IR Cut Filter Yes
    General
    HousingPlastic ColorBlack (C51BL); White (C51BM)
    Operating PowerDC 12 V Operating Temperature-40 °F – 140 °F /-40 °C – 60 °C
    Indoor/OutdoorIndoor/Outdoor Weatherproof RatingIP66
    Dimension (L X W X H)3.54” X 2.76”/89.9 X 70.1 mm Weight0.55 lb./250 g
    HousingPlastic
    Operating PowerDC 12 V
    Indoor/OutdoorIndoor/Outdoor
    Dimension (L X W X H)3.54” X 2.76”/89.9 X 70.1 mm
    Color Black (C51BL); White (C51BM)
    Operating Temperature -40 °F – 140 °F /-40 °C – 60 °C
    Weatherproof Rating IP66
    Weight 0.55 lb./250 g
    Video & Audio
    Video CompressionH.264+/H.264/H.265/H.265+ Video Input4CH Analog HD/Analog + 1CH IP
    Video OutputHDMI and VGA up to 1080p Audio Input/Output1/1 RCA
    IPC Recording ResolutionUp to 6MP IPC Playback ResolutionUp to 6MP
    Supported Camera TypesSupport HD TVI Input: 5MP, 4MP, 3MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps;
    Support AHD Input: 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
    Support CVI Input: 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
    Support CVBS Input
    Analog HD Playback Resolution5MP Lite/4MP Lite/1080p/720p/@15 fps,
    VGA/WD1/4CIF/CIF@25 (30) fps
    ProtocolsSupport Max Playback Channel4-CH
    Video CompressionH.264+/H.264/H.265/H.265+
    Video OutputHDMI and VGA up to 1080p
    IPC Recording ResolutionUp to 6MP
    Supported Camera TypesSupport HD TVI Input: 5MP, 4MP, 3MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps;
    Support AHD Input: 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
    Support CVI Input: 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
    Support CVBS Input
    ProtocolsSupport
    Video Input 4CH Analog HD/Analog + 1CH IP
    Audio Input/Output 1/1 RCA
    Max Playback Channel 4-CH
    Analog HD Playback Resolution 5MP Lite/4MP Lite/1080p/720p/@15 fps,
    VGA/WD1/4CIF/CIF@25 (30) fps
    Hard Drive
    HDD1 SATA Interface HDD CapacityUp to 6 TB Capacity
    HDD1 SATA Interface
    HDD Capacity Up to 6 TB Capacity
    General
    Network InterfaceRJ45 X1 (10/100 M) USBUSB 2.0 X2
    Operating PowerDC 12 V Working Temperature-14 °F – 131 °F /-10 °C – 55 °C
    Dimensions (W X H X D)260 X 222 X 45 mm Weight (Without Hard Disk)≤ 1 kg (2.2 lbs.) (Without HDD)
    Network InterfaceRJ45 X1 (10/100 M)
    Operating PowerDC 12 V
    Dimensions (W X H X D)260 X 222 X 45 mm
    USB USB 2.0 X2
    Working Temperature -14 °F – 131 °F /-10 °C – 55 °C
    Weight (Without Hard Disk) ≤ 1 kg (2.2 lbs.) (Without HDD)
    Video & Audio
    Video CompressionH.264+/H.264/H.265/H.265+ Video Input8CH Analog HD/Analog + 2CH IP Camera
    Video OutputHDMI and VGA up to 1080p Audio Input/Output1/1 RCA
    IPC Recording ResolutionUp to 6MP IPC Playback ResolutionUp to 6MP
    Supported Camera TypesSupport HD TVI Input: 5MP, 4MP, 3MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps;
    Support AHD Input: 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
    Support CVI Input: 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
    Support CVBS Input
    Analog HD Playback Resolution5MP Lite/4MP Lite/1080p/720p/@15 fps,
    VGA/WD1/4CIF/CIF@25 (30) fps
    Max. Playback Channel2-CH ProtocolsSupport
    Video CompressionH.264+/H.264/H.265/H.265+
    Video OutputHDMI and VGA up to 1080p
    IPC Recording ResolutionUp to 6MP
    Supported Camera TypesSupport HD TVI Input: 5MP, 4MP, 3MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps;
    Support AHD Input: 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
    Support CVI Input: 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
    Support CVBS Input
    Analog HD Playback Resolution 5MP Lite/4MP Lite/1080p/720p/@15 fps,
    VGA/WD1/4CIF/CIF@25 (30) fps
    Max. Playback Channel2-CH
    Video Input 8CH Analog HD/Analog + 2CH IP Camera
    Audio Input/Output 1/1 RCA
    IPC Playback Resolution Up to 6MP
    Protocols Support
    Hard Drive
    HDD1 SATA Interface HDD CapacityUp to 6 TB Capacity
    HDD1 SATA Interface
    HDD Capacity Up to 6 TB Capacity
    General
    Network interfaceRJ45 X1 (10/100 M) USBUSB 2.0 X2
    Operating PowerDC 12 V Working Temperature-14 °F – 131 °F/-10 °C – 55 °C
    Dimensions (W X H X D)260 X 222 X 45 mm Weight (Without Hard Disk)≤ 1 kg (2.2 lbs.) (Without HDD)
    Network interfaceRJ45 X1 (10/100 M)
    Operating PowerDC 12 V
    Dimensions (W X H X D)260 X 222 X 45 mm
    USB USB 2.0 X2
    Working Temperature -14 °F – 131 °F/-10 °C – 55 °C
    Weight (Without Hard Disk) ≤ 1 kg (2.2 lbs.) (Without HDD)
