ANNKE H800 8MP 4 Channel 2 Cameras PoE Security System - ANNKE Store

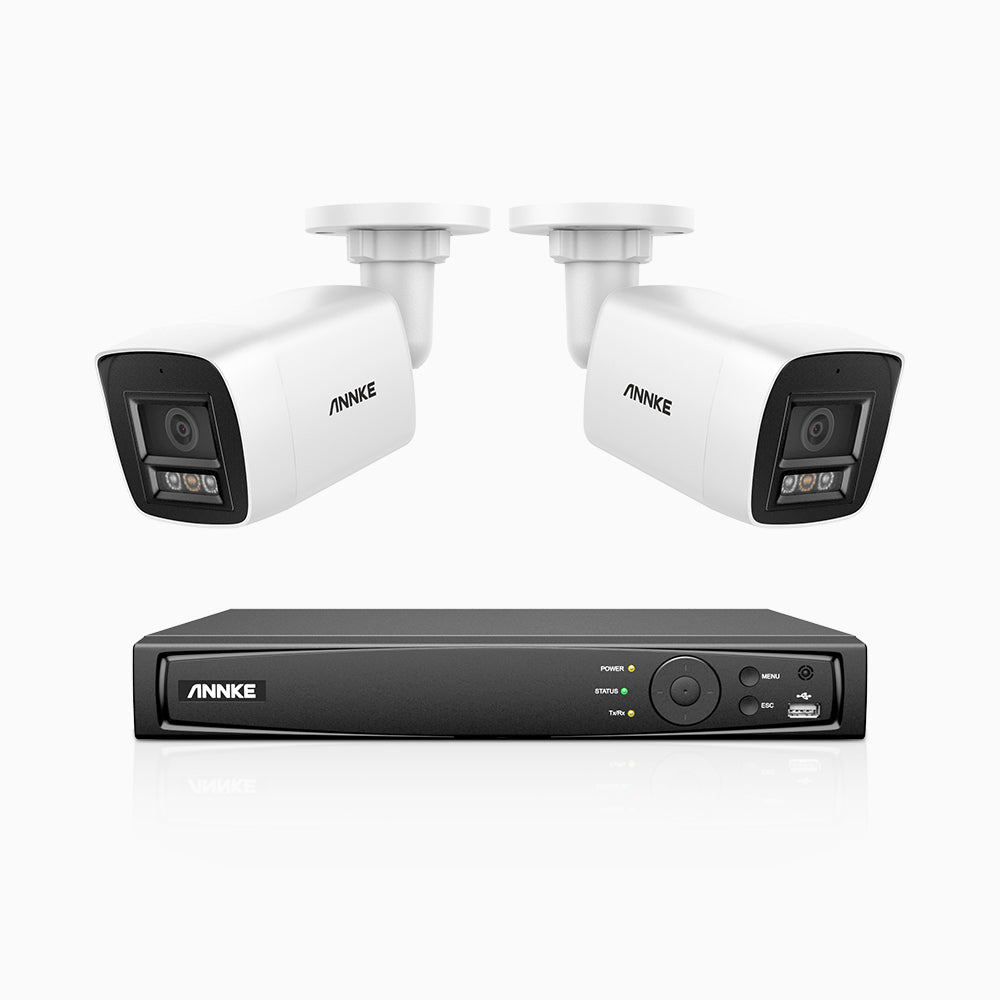

H800 - 4K 4 Channel 2 Cameras PoE Security System, Human & Vehicle Detection, Color & IR Night Vision, Built-in Mic, RTSP Supported

H800 - 4K 4 Channel 2 Cameras PoE Security System, Human & Vehicle Detection, Color & IR Night Vision, Built-in Mic, RTSP Supported

$210.99

$319.99

SKU: AU-N44PAM-I91DL02

Note: C800 Turret (1-cam) is now on 30% off DOTW sale
Appearance
HDD Capacity
Note: NC400 are now on 35% off DOTW sale with code DOTW02.

Secure Checkout With:

  • Tags: 2 , 4CH NVR , 4K 8MP , Built-in Microphone , Bullet , Dome , EXIR Night Vision , Turret

    H800 – Best 4K Security Camera System

    Make 4K UHD Protection Available
    at Every Angle

    Make 4K UHD Protection
    Available at Every Angle

    Watch H800 in Action

  • 4CH

    NVR Support Max.
    4 Cameras

  • BEST

    Choice for
    Small-Apartment

  • 4 MM

    Cover Wider Areas
    Grasp All Details

  • 100 FT

    EXIR Night Vision
    View Clearly at Night

  • Unrivaled 4K in All Environments

    H800 has been tested in almost every scenario in your daily life, garages, front doors, stores, etc. both hot & cold temperatures. The cameras can still shoot stable & high-fidelity footages without glare in every testing environment.

    Capture Clear Night Detail by Smart Dual Light

    Default smart dual light mode in night, the camera can clearly find the target at night by infrared light, If there is a moving target, the white light will start, infrared off, so as to obtain a clear colour image. In addition, you can also choose full infrared or full white light mode.

    High-Fidelity Audio Recording

    The built-in noise-cancelling microphone records clear voice from up to 20 ft away, enhancing the security coverage & the ability to interpret events. (Note: The listen-audio can be disabled.)

    True Plug & Play PoE Setup

    The PoE connection is perfect, as both video & power are transferred via the same network cable, and gives you flexible installation. You can run a single Ethernet cable between the camera & NVR up to 330 ft. For longer distance, you can hook up a PoE switch (not included).

    Advanced H.265+ Video Format

    ANNKE H.265+ coding helps the camera record longer videos and consumes less bandwidth. Save your budgets on buying more HDDs.

  • Small File Sizes

    Send smaller file sizes to the network video recorder without losing 4K quality.

  • Long Recording Time

    H.265+ coding allows for longer recording time before overwriting the older recordings.

  • Remote 4K Live View

    View high-quality 4K Ultra HD live stream on your smart devices without all the data.

  • Maximum Protection with IK10 Vandal-Proof

    The dome cameras, with IK10 vandal-proof housing & anti-dismantle screws, prevent impacts, vandal acts, redirection & defocusing. The cameras fit unobtrusively into any setting and disguise which way they are pointing. (For dome cameras only)

    A Truly Weatherproof Security Camera

    Built with IP67 weatherproof rating, the IP camera remains perfectly even being immersed in 1 m of water for 30 minutes. The camera has been tested in extremely hot & cold weather (-22 °F – 140 °F/-30 °C – 60 °C) and continues to record in exceptional 4K Ultra HD, without blur and no image distortion.

    Check IP67 Weatherproof Real Performance

  • Metal & ABS

    Rugged Housing

  • 140 °F | 60 °C

    Heat Rating

  • -22 °F | -30 °C

    Cold Rating

  • IP67

    Water Rating

  • Remote Viewing on the Go

    This all-in-one system is designed for use with our innovative & intuitive ANNKE Vision App. You can quickly & easily control your system remotely via your smartphones, tablets or computers.

    Small on Prices, Big on Features

  • Support RTSP

    Integrate the system to third-party software 4K cameras, like Blue Iris, Synology, etc.

  • Customized Motion Areas

    Customize the specific motion zones, like garage, front door, etc. for much more relevant motion alerts.

  • Instant Motion Alerts

    Receive real-time app push notifications & email alerts when there are motion events.

  • 24/7 Record Without Internet

    The NVR & cameras link to each other after plug in & record videos 24/7 without Internet.

  • Note: The turret camera (no-audio version) supports motion detection, line crossing & region entrance detection, while other C800 models only support basic motion detection.

    Specification

    Download H800 Specification

    What's in the Box
  • ➀ 1X NVR
  • ➁ Security Cameras (The quantity varies based on your choice.)
  • ➂ 60 ft/18 m Ethernet Cables 100 ft/30 m Ethernet Cables
  • ➃ Network Cable
  • ➄ HDMI Cable
  • ➅ Power Adapter
  • ➆ USB Mouse
  • ➇ User Manual
  • ➈ Screws
  • Note: The new version of the NVR N48PAW has no remote control.

    Camera
    Image Sensor1/2.5" Sony Progressive Scan CMOS Video Resolution8MP (3840 X 2160@15 fps)
    Signal SystemPAL/NTSC Video CompressionH.265/H.264
    Video Bitrate32 Kbps - 16 Mbps Lens2.8 mm
    Min. Illumination0.01 Lux @(F1.2, AGC On) Angle of View102°
    Number of Infrared LEDs2 pcs Night Vision DistanceUp to 100 ft/30 m
    DNR3D DNR Wide Dynamic RangeDigital WDR
    EthernetRJ45 X1 (10 M/100 M) IR-Cut FilterYes
    Image Sensor1/2.5" Sony Progressive Scan CMOS
    Signal SystemPAL/NTSC
    Video Bitrate32 Kbps - 16 Mbps
    Min. Illumination0.01 Lux @(F1.2, AGC On)
    Number of Infrared LEDs2 pcs
    DNR3D DNR
    EthernetRJ45 X1 (10 M/100 M)
    Video Resolution 8MP (3840 X 2160@15 fps)
    Video Compression H.265/H.264
    Lens 2.8 mm
    Angle of View 102°
    Night Vision Distance Up to 100 ft/30 m
    Wide Dynamic Range Digital WDR
    IR-Cut Filter Yes
    General
    HousingMetal ColorWhite
    Operating PowerPoE (802.3af) Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/OutdoorIndoor/Outdoor Weatherproof RatingIP67
    Dimension6.1" X 2.8"/155 X 70 mm Weight0.9 lb./410 g
    HousingMetal
    Operating PowerPoE (802.3af)
    Indoor/OutdoorIndoor/Outdoor
    Dimension6.1" X 2.8"/155 X 70 mm
    Color White
    Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
    Weatherproof Rating IP67
    Weight 0.9 lb./410 g
    What's in the Box
  • ➀ 1X NVR
  • ➁ Security Cameras (The quantity varies based on your choice.)
  • ➂ 60 ft/18 m Ethernet Cables 100 ft/30 m Ethernet Cables
  • ➃ Network Cable
  • ➄ HDMI Cable
  • ➅ Power Adapter
  • ➆ USB Mouse
  • ➇ User Manual
  • ➈ Screws
  • Note: The new version of the NVR N48PAW has no remote control.

    Camera
    Image Sensor1/2.5" Sony Progressive Scan CMOS Video Resolution8MP (3840 X 2160)
    Signal SystemPAL/NTSC Video CompressionH.265+/H.265/H.264+/H.264
    Video Bitrate32 Kbps - 16 Mbps Lens2.8 mm
    Min. Illumination0.01 Lux @(F1.2, AGC On) Angle of ViewDiagonal FoV: 124°
    Number of Infrared LEDs1 pc Night Vision DistanceUp to 100 ft/30 m
    DNR3D DNR Wide Dynamic Range120 dB True WDR
    EthernetRJ45 X1 (10 M/100 M) IR-Cut FilterYes
    Image Sensor1/2.5" Sony Progressive Scan CMOS
    Signal SystemPAL/NTSC
    Video Bitrate32 Kbps - 16 Mbps
    Min. Illumination0.01 Lux @(F1.2, AGC On)
    Number of Infrared LEDs1 pc
    DNR3D DNR
    EthernetRJ45 X1 (10 M/100 M)
    Video Resolution 8MP (3840 X 2160)
    Video Compression H.265+/H.265/H.264+/H.264
    Lens 2.8 mm
    Angle of View Diagonal FoV: 124°
    Night Vision Distance Up to 100 ft/30 m
    Wide Dynamic Range 120 dB True WDR
    IR-Cut Filter Yes
    General
    HousingMetal & Plastic ColorWhite
    Operating PowerDC 12 V; PoE (802.3af) StorageBuilt-in MicroSD/SDHC/SDXC Slot, up to 128 GB
    Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C Indoor/OutdoorIndoor/Outdoor
    Weatherproof RatingIP67 Dimension5" X 3.8"/127.3 X 95.9 mm
    Weight1.4 lbs./620 g
    HousingMetal & Plastic
    Operating PowerDC 12 V; PoE (802.3af)
    Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Weatherproof RatingIP67
    Weight1.4 lbs./620 g
    Color White
    Storage Built-in MicroSD/SDHC/SDXC Slot, up to 128 GB
    Indoor/Outdoor Indoor/Outdoor
    Dimension 5" X 3.8"/127.3 X 95.9 mm
    What's in the Box
  • ➀ 1X NVR
  • ➁ Security Cameras (The quantity varies based on your choice.)
  • ➂ 60 ft/18 m Ethernet Cables 100 ft/30 m Ethernet Cables
  • ➃ Network Cable
  • ➄ HDMI Cable
  • ➅ Power Adapter
  • ➆ USB Mouse
  • ➇ User Manual
  • ➈ Screws
  • Note: The new version of the NVR N48PAW has no remote control.

    Camera
    Image Sensor1/2.5" Sony Progressive Scan CMOS Video Resolution8MP (3840 X 2160@15 fps)
    Signal SystemPAL/NTSC Video CompressionH.265/H.264
    Video Bitrate32 Kbps - 16 Mbps Lens4 mm
    Min. Illumination0.01 Lux @ (F1.2, AGC On) Angle of View79°
    Number of Infrared LEDs3 pcs Night Vision DistanceUp to 100 ft/30 m
    DNR3D DNR Wide Dynamic RangeDigital WDR
    EthernetRJ45 X1 (10 M/100 M) IR-Cut FilterYes
    Image Sensor1/2.5" Sony Progressive Scan CMOS
    Signal SystemPAL/NTSC
    Video Bitrate32 Kbps - 16 Mbps
    Min. Illumination0.01 Lux @ (F1.2, AGC On)
    Number of Infrared LEDs3 pcs
    DNR3D DNR
    EthernetRJ45 X1 (10 M/100 M)
    Video Resolution 8MP (3840 X 2160@15 fps)
    Video Compression H.265/H.264
    Lens 4 mm
    Angle of View 79°
    Night Vision Distance Up to 100 ft/30 m
    Wide Dynamic Range Digital WDR
    IR-Cut Filter Yes
    General
    HousingMetal & Plastic ColorWhite
    Operating PowerDC 12 V; PoE (802.3af) Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/OutdoorIndoor/Outdoor Weatherproof RatingIP67
    Vandal-Proof RatingIK10 Dimension4.4" X 3.2"/111 X 82.4 mm
    Weight1.1 lbs./500 g
    HousingMetal & Plastic
    Operating PowerDC 12 V; PoE (802.3af)
    Indoor/OutdoorIndoor/Outdoor
    Vandal-Proof RatingIK10
    Weight1.1 lbs./500 g
    Color White
    Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
    Weatherproof Rating IP67
    Dimension 4.4" X 3.2"/111 X 82.4 mm
    Video & Audio
    Video CompressionH.264+/H.264/H.265/H.265+/MPEG4 IP Video Input4CH PoE
    Video OutputHDMI up to 4K; VGA up to 1080p Audio Input/Output1/1 RCA
    Incoming Bandwidth80 M Max Recording ResolutionUp to 8MP (3840 X 2160)
    Max Playback ResolutionUp to 8MP (3840 X 2160) Max Playback Channel4CH
    Max Playback Capacity4CH @1080p; 1CH @8MP
    Video CompressionH.264+/H.264/H.265/H.265+/MPEG4
    Video OutputHDMI up to 4K; VGA up to 1080p
    Incoming Bandwidth80 M
    Max Playback ResolutionUp to 8MP (3840 X 2160)
    Max Playback Capacity4CH @1080p; 1CH @8MP
    IP Video Input 4CH PoE
    Audio Input/Output 1/1 RCA
    Max Recording Resolution Up to 8MP (3840 X 2160)
    Max Playback Channel 4CH
    Hard Drive
    HDD1 SATA Interface HDD CapacityUp to 8 TB Capacity for Each HDD
    HDD1 SATA Interface
    HDD Capacity Up to 8 TB Capacity for Each HDD
    External Interface
    Network InterfaceRJ45 X1 (10/100M ) PoE8 Ports (IEEE802.3at / af)
    USB2X USB 2.0
    Network InterfaceRJ45 X1 (10/100M )
    USB2X USB 2.0
    PoE 8 Ports (IEEE802.3at / af)
    General
    Operating PowerDC 48 V Working Temperature14 °F — 131 °F/-10 °C — +55 °C
    Dimensions (W X H X D)12.4” X 9.4” X 1.9”/315 X 240 X 48 mm Weight (Without Hard Disk)2.2 lbs./1 kg
    Power Consumption≤10 W (Without HDD and PoE)
    PoE: Max 25.5 W for Single Port
    Operating PowerDC 48 V
    Dimensions (W X H X D)12.4” X 9.4” X 1.9”/315 X 240 X 48 mm
    Working Temperature 14 °F — 131 °F/-10 °C — +55 °C
    Weight (Without Hard Disk) 2.2 lbs./1 kg
    Power Consumption≤10 W (Without HDD and PoE)
    PoE: Max 25.5 W for Single Port
