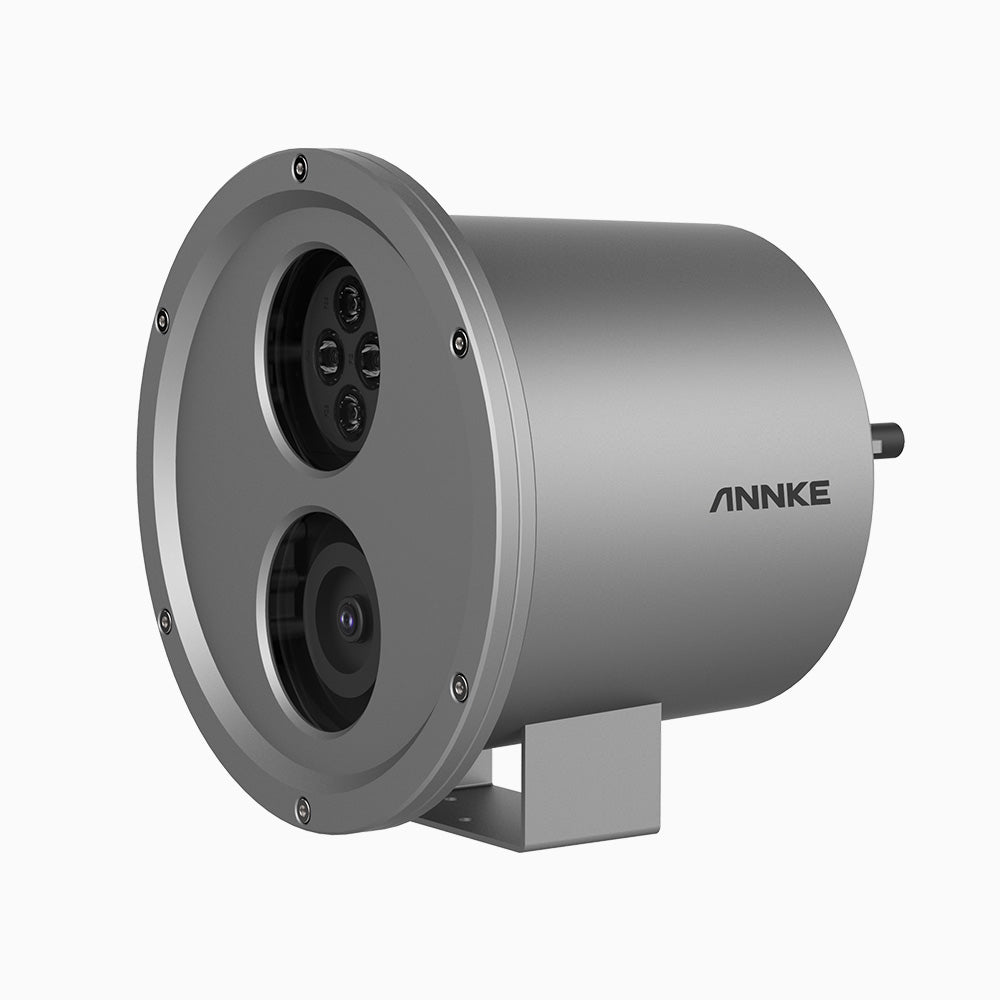

Excellent Underwater Resistance & Anti-Corrosion Ability
This underwater camera comes with a waterproof case which has IP68 super protection ability, ideal for underwater activities such as swimming pool monitoring, aquaculture, underwater engineering, underwater exploration, etc.
Made of tough SUS 316L metal, the camera can withstand large impacts and is highly resistant to corrosion, and means that it can be used in a variety of extreme environments from -40 °F/-30° C to 140 °F/60° C, such as coastlines, docks, chemical plants, etc.
4MP HD Images & Color Night Vision
The advanced cameras use 1/1.8" Progressive Scan CMOS sensor to carry smooth 1080p videos (1920 X 1080 pixels). Ultra-low illumination 0.0001 Lux is still displayed in color. The image will turn into black & white when in 0 lux condition, and fill white light distance can reach 32 ft. No matter day or night, ultra-clear pictures will be presented.
3X Optical Zoom - Clearer Details & Further Distance
With 3 to 9 mm motorized lens, this camera can provide a wide viewing angle. This varifocal lens enables fast and accurate image data collection even when the object is far away from the camera.
Smart Detection: Focus on What Matters
Equipped with leading smart detection technology, the camera supports alarm triggering by specified target types: line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, unattended baggage detection, object removal detection.
Clearer Image Than You Expect
The anti-corrosion camera adopts 5 incredible image enhancement technologies – 120 dB true WDR, 3D DNR, defog, BLC & HLC – to provide the splendid HD clarity. So, whether you view the live stream by day or by moonlight, you’ll get a new level of details and colors that wasn’ t possible before.
Advanced H.265+ Video Format
With H.265+/H.265 compression, you can store more information using fewer hard drives, which allows you to do more with less, and dramatically reduce file sizes with this latest video compression format.
POE or DC 36V Power for Easy Installation
This underwater camera can transmit video and be charged at the same time via PoE, or plug it into a power outlet, the 15M long waterproof cable will always power your camera, don't worry about frequent charging.
Multiple Recording & Storage Options
The camera supports NAS and Micro SD card storage up to 256 GB to record and store what you want.
Camera | |
Image Sensor | 1/1.8” progressive scan CMOS |
Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with Light |
Shutter Speed | 1/3 s to 1/100,000 s |
Lens | |
Focal Length & FOV | Varifocal lens, 3 to 9 mm, horizontal FOV 87° to 45.8°, vertical FOV 46° to 25.6°, diagonal FOV 104° to 52.4° |
Aperture | F1.0 |
DORI | |
DORI | Wide: D: 55.2 m, O: 21.9 m, R: 11.0 m, I: 5.5 m Tele: D: 124.1 m, O: 49.3 m, R: 24.8 m, I: 12.4 m |
Illuminator | |
Supplement Light Type | White Light |
Supplement Light Range | Up to 10 m |
Video | |
Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
Third Stream | 50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
Video Bit Rate | 32 Kbps to 8 Mbps |
H.264 Type | Baseline profile,main profile,high profile |
H.265 Type | Main profile |
Scalable Video Coding (SVC) | H.265 and H.264 encoding |
Region of Interest (ROI) | 5 fixed regions for each stream |
Target Cropping | Yes |
Network | |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
Simultaneous Live View | Up to 6 channels |
API | Open Network Video Interface, ISAPI, ISUP 5.0 |
User/Host | Up to 32 users. 3 levels: Administrator, Operator and User |
Client | ANNKE Vision |
Web Browser | Plug-in required live view: IE10, IE11 Local service: Chrome 57.0+, Firefox 52.0+ |
Network Storage | NAS (NFS, SMB/CIFS), ANR |
Image | |
Image Parameters Switch | Yes |
Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser |
Day/Night Switch | Day, Night, Auto, Schedule |
Wide Dynamic Range (WDR) | 120 dB |
Interface | |
Communication Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
Event | |
Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection Scene change detection, unattended baggage detection, object removal detection |
General | |
Power | 36 VDC ± 20%, 0.6 A, max. 17 W, two-core terminal block PoE (802.3.at, Class 3, 42.5 V to 57 V), 0.45 A to 0.3 A, 17 W |
Material | SUS 316L Metal |
Dimension | 210 mm × 210 mm × 205 mm (8.3" × 8.3" × 8.1") |
Package Dimension | 700 mm × 530 mm × 365 mm (27.6" × 20.9" × 14.4") |
Weight | Approx. 8.300 kg (18.38 lb.) |
With Package Weight | Approx. 12.300 kg (27.12 lb.) |
Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 100% or less (non-condensing) |
General Function | Heartbeat, password protection, privacy mask, watermark, IP address filter, mirror |
Cable Length | 15 m (49.2 ft.) (included) |
Web Client Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
Protection | IP68 |
Anti-Corrosion | NEMA 4X |
