3K Lite 8 Channel Hybrid 5-in-1 CCTV Digital Video Recorder, Human & Vehicle Detection, H.265+, Supports up to 8 BNC Cameras & 2 IP Cameras

SKU: AU-DW81KD000-V7-OP
$69.99
$79.99
$69.99
HDD Capacity: NO HDD
Add-on: NO
Subtotal: $69.99
3K Lite 8 Channel Hybrid 5-in-1 CCTV Digital Video Recorder, Human & Vehicle Detection, H.265+, Supports up to 8 BNC Cameras & 2 IP Cameras

3K Lite 8 Channel Hybrid 5-in-1 CCTV Digital Video Recorder, Human & Vehicle Detection, H.265+, Supports up to 8 BNC Cameras & 2 IP Cameras

$79.99 $69.99

3K Lite 8 Channel Hybrid 5-in-1 CCTV Digital Video Recorder, Human & Vehicle Detection, H.265+, Supports up to 8 BNC Cameras & 2 IP Cameras

$79.99 $69.99
HDD Capacity: NO HDD
Add-on: NO

State-Of-The-Art H.265+ Code

Normally, the H.265+ coding standard enables fast transmission and stable stream, records up to 98 days continuously for 4 cameras simultaneously with 1TB HDD, which is 7 times longer than H.264, without buying extra hard disk drives.

Up to 3K Lite Ultra HD Input

The DVR supports 3K Lite cameras to provide you with 3K streaming and 3K lite recording, bring everything to life with stunning and clear details, even the license plate can be recognized easily. (Note: The 3K Lite DVRs support up to 3K TVI cameras, 4MP AHD & CVI cameras, and CVBS & IP cameras)

Compatible 5-in-1 DVR

This powerful DVR supports up to 8CH TVI/AHD/CVI/CVBS and 2 IP cameras, thus you make full use of all your old cameras or brand new cameras for wide coverage. Clear off blind spot and leave nowhere for thieves and robbers to hide

Smart Motion-Triggered Alerts

Mark out relevant areas for motion detection, you can focus on what you care about most and free from irrelevant alerts. Once an alarm is triggered, it will send instant email alerts with snapshots and APP alarm pushes, so you can take appropriate precautions

Easy 3-Step Remote Access

Consolidating the security system into your smartphone, tablet and PC can be quite simple with our free Annke Vision APP. Quick scan the QR-code, install it on your mobile devices and then you can watch live video anytime from anywhere.

Multi-Language Operation

Both DVR menu and APP support multi-language operation, no worry about maloperation caused by difficulties in languages. It is much more convenient to keep your home and business safe via surveillance system with your familiar language.

Save Time with Smart Playback

The smart playback offers you video with movements in selected areas and periods. Thus you don’t have to waste time checking footage frame by frame. It is much easier to find what you need in the records.

Information Security Measures

Adopted information protection technology of military grade, your data is on our top priority and well-protected. Therefore, you could set the password and encryption code for access restrictions, avoiding access open to everyone like other brands.

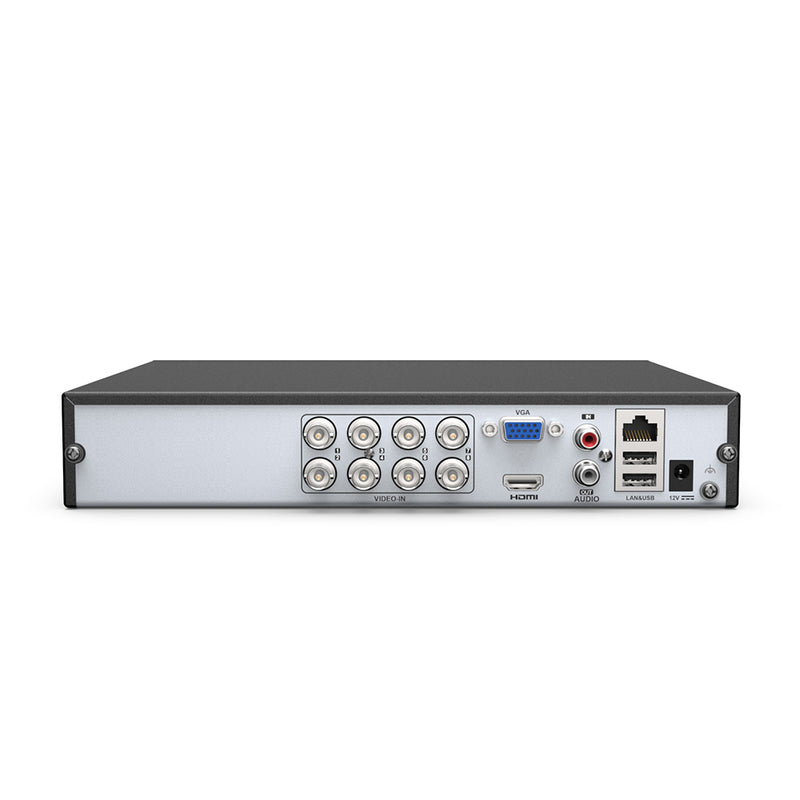

1080P Full HD HDMI & VGA Output

The DVR supports HDMI and VGA 1080P full-HD outputs, so you can connect an HD monitor to it for live viewing and video playback. Default HDMI/VGA output resolution is 1024*768, please adjust it manually for higher resolution.

Perfectly Work with DVR

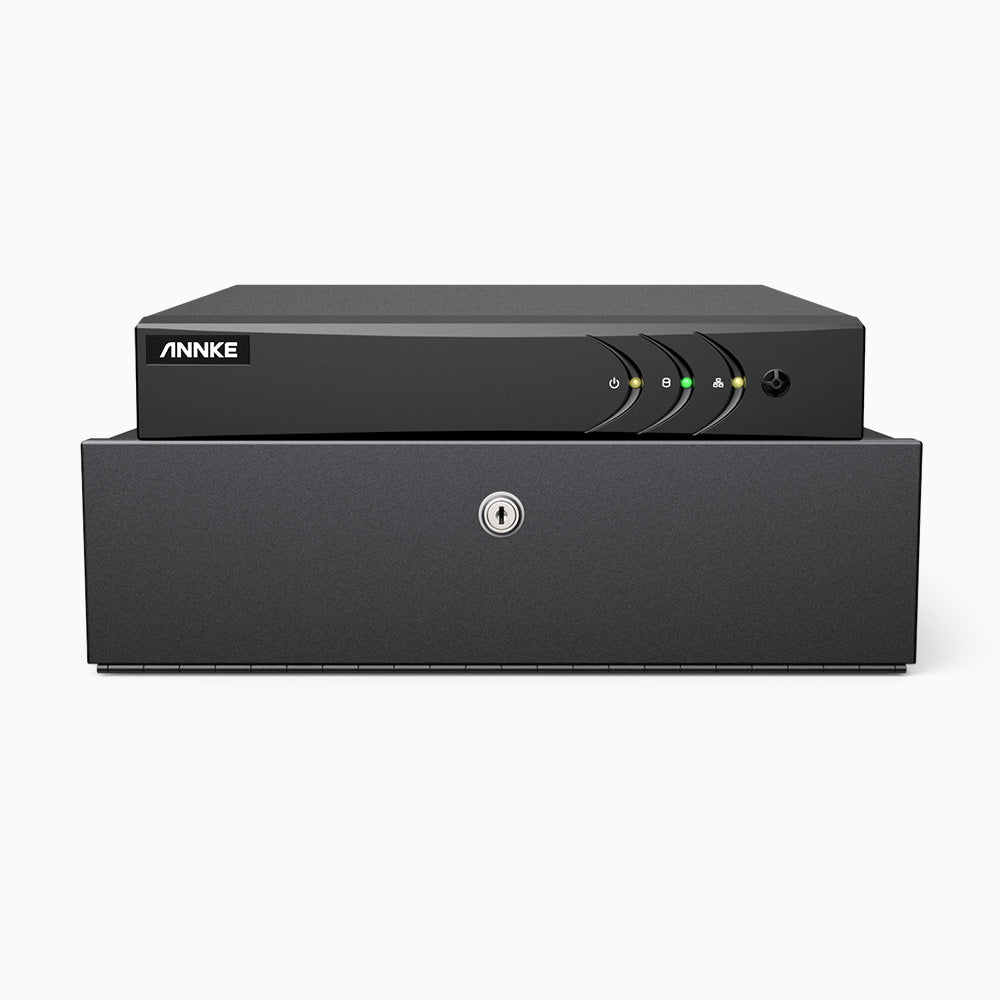

The DVR lock box is designed to not just protect your valuables surveillance recorders, but to keep your switches, test equipment or patch cords safe from unauthorized users.
Black, static-resistant powder coat finish withstands scratches, and abrasions and protects your sensitive electronics from damaging static electricity. The removable top panel facilitates additional access to equipment and wiring.
The lock box allows for two mounting options. You can mount it on top surfaces or onto a wall with mounting brackets (not included).

Specification

Download ANNKE DW81KD-V6-3K Specification

Video & Audio
Video CompressionH.264+/H.264/H.265/H.265+ Video Input8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on)
Video OutputHDMI and VGA Up to 1080P Audio Input1-ch RCA,  8-ch via coaxial cable
Audio Output1-ch RCA Analog HD Playback Resolution3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps
Supported Camera TypesSupport HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p;
Support AHD Input: 4MP, 1080p, 720P;
Support CVI Input: 4MP, 1080p, 720P;
Support CVBS Input;
Support IP Video Input:6MP/5MP/4MP/3MP/1080P/720P/
IPC Playback ResolutionUp to 6MP
Max Playback Channel2-ch  ProtocolsTCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS
Motion Detection 2.0All analog channels support human and vehicle detection to reduce false alarm
Video CompressionH.264+/H.264/H.265/H.265+
Video OutputHDMI and VGA Up to 1080P
Audio Output1-ch RCA
Supported Camera TypesSupport HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p;
Support AHD Input: 4MP, 1080p, 720P;
Support CVI Input: 4MP, 1080p, 720P;
Support CVBS Input;
Support IP Video Input:6MP/5MP/4MP/3MP/1080P/720P/
Max Playback Channel2-ch
Motion Detection 2.0All analog channels support human and vehicle detection to reduce false alarm
Video Input 8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on)
Audio Input 1-ch RCA,  8-ch via coaxial cable
Analog HD Playback Resolution 3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps
IPC Playback Resolution Up to 6MP
Protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS
Hard Drive
HDD1 SATA interface HDD CapacityUp to 10TB capacity
HDD1 SATA interface
HDD CapacityUp to 10TB capacity
General
Network interface1, RJ45 10M/100M self-adaptive Ethernet interface USBUSB2.0x2
Operating PowerDC12V,≤ 12W (without HDD) Working Temperature-14 °F – 131 °F /-10 °C – 55 °C
Dimensions(W x H x D)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) Weight (without hard disk)≤ 1 kg (2.2 lb)(without HDD)
Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
Operating PowerDC12V,≤ 12W (without HDD)
Dimensions(W x H x D)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
USB USB2.0x2
Working Temperature -14 °F – 131 °F /-10 °C – 55 °C
Weight (without hard disk) ≤ 1 kg (2.2 lb)(without HDD)
