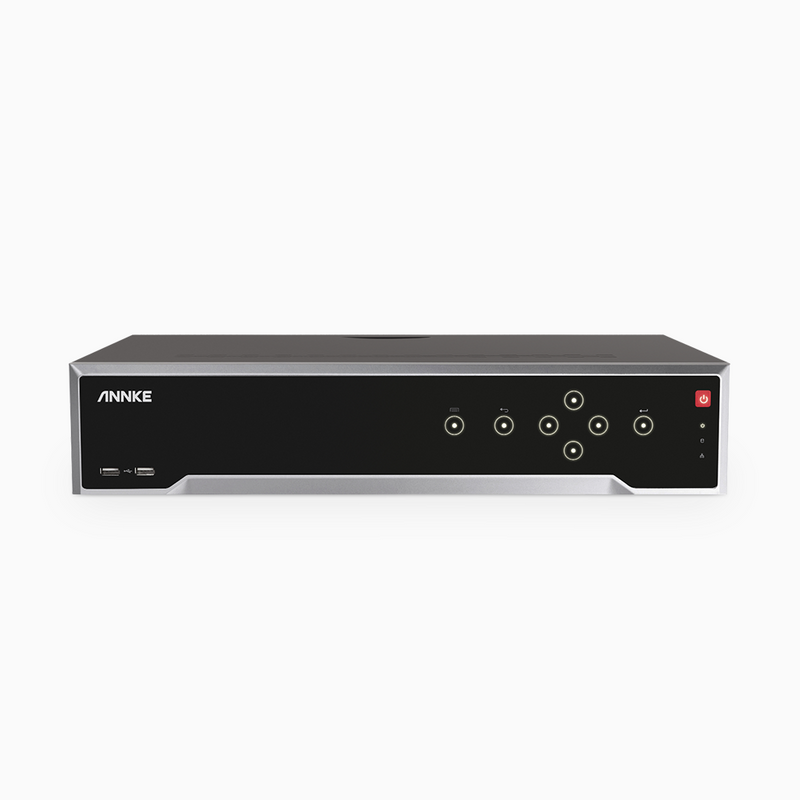

32 Channel 16 PoE Ports 12MP 4K Ultra HD Network Video Recorder

32 Channel 16 PoE Ports 12MP 4K Ultra HD Network Video Recorder

$679.99

$799.99

SKU: N931BB

  • Availability: In Stock
HDD
Warranty
UK orders will be shipped out on Dec. 4

Tags: 12MP , 32CH , NVR , spo-default , spo-disabled

Up to 12MP Stream & Record

The 12MP (4K) network video recorder can connect 16 PoE IP security cameras directly and can add another 16 cameras at up to 12MP Ultra HD with a PoE switch. Record everything in the clearest details.



Advanced H.265+ Video Coding

The leading-edge H.265+ video coding delivers faster stream and saves more storage space than H.265/H.264 systems. Reduce bandwidth consumption & video file sizes greatly.



Powerful ONVIF Compatibility

The 32CH PoE NVR supports ANNKE 12MP, 4K, 5MP PoE IP cameras and third-party network cameras with ONVIF compatibility. Connect any ONVIF Ethernet security camera from different brands for unlimited integration.



Easy Plug & Play PoE Connection

Connect the PoE video cameras to the NVR with just a single network cable for both data and power connection without messy wiring. Enjoy 24/7 recording even without the Internet.



Email Alerts & App Pushes

Upon there are motion events, you will receive instant app pushes and email alerts. Access the system via your smartphone or computer to check the motion events. Stop intrusion in real time if there is anything unusual.



Unlimited Remote Access with All Smart Devices

Control the whole system remotely via your iPhones, Android smartphones, tablets or computers anywhere, even when you are in the office, shopping or traveling.

Specification

Download 32CH 12MP 4K Ultra Specification

Video & Audio
Video CompressionH.264+/H.264/H.265/H.265+/MPEG4 IP Video Input32CH (Include 16CH PoE)
Video OutputHDMI up to 4K; VGA up to 1080p Audio Input/Output1/1 RCA
Incoming Bandwidth256 Mbps Max Recording ResolutionUp to 12MP
Max Playback ResolutionUp to 12MP Max Playback Channel16CH/32CH
Max Playback Capacity2-CH @12MP (20 fps)/4-CH @8MP (25 fps) ONVIF ProtocolSupport
Video CompressionH.264+/H.264/H.265/H.265+/MPEG4
Video OutputHDMI up to 4K; VGA up to 1080p
Incoming Bandwidth256 Mbps
Max Playback ResolutionUp to 12MP
Max Playback Capacity2-CH @12MP (20 fps)/4-CH @8MP (25 fps)
IP Video Input 32CH (Include 16CH PoE)
Audio Input/Output 1/1 RCA
Max Recording Resolution Up to 12MP
Max Playback Channel 16CH/32CH
ONVIF Protocol Support
Hard Drive
HDD4 SATA Interface HDD CapacityUp to 12 TB Capacity for Each HDD
HDD4 SATA Interface
HDD Capacity Up to 12 TB Capacity for Each HDD
External Interface
Network InterfaceRJ45 X1 (10/100/1000 M) PoE8 Ports (IEEE802.3at/af)
Alarm Input/Output16/4 Serial Interface1 RS-485 (Half-Duplex), 1 RS-232
USBFront Panel: 2X USB 2.0; Rear Panel: 1X USB 3.0
Network InterfaceRJ45 X1 (10/100/1000 M)
Alarm Input/Output16/4
USBFront Panel: 2X USB 2.0; Rear Panel: 1X USB 3.0
PoE 8 Ports (IEEE802.3at/af)
Serial Interface 1 RS-485 (Half-Duplex), 1 RS-232
General
Operating PowerDC 48 V Power Consumption <20 W (Without HDD and PoE)
Working Temperature14 °F — 131 °F/-10 °C — +55 °C Dimensions (W x H x D)17.5" X 15.7" X 2.8" (445 mm X 400 mm X 71 mm)
Weight (Without Hard Disk)≤11 lbs. (5 kg)
Operating PowerDC 48 V
Working Temperature14 °F — 131 °F/-10 °C — +55 °C
Weight (Without Hard Disk)≤11 lbs. (5 kg)
Power Consumption  <20 W (Without HDD and PoE)
Dimensions (W x H x D) 17.5" X 15.7" X 2.8" (445 mm X 400 mm X 71 mm)
