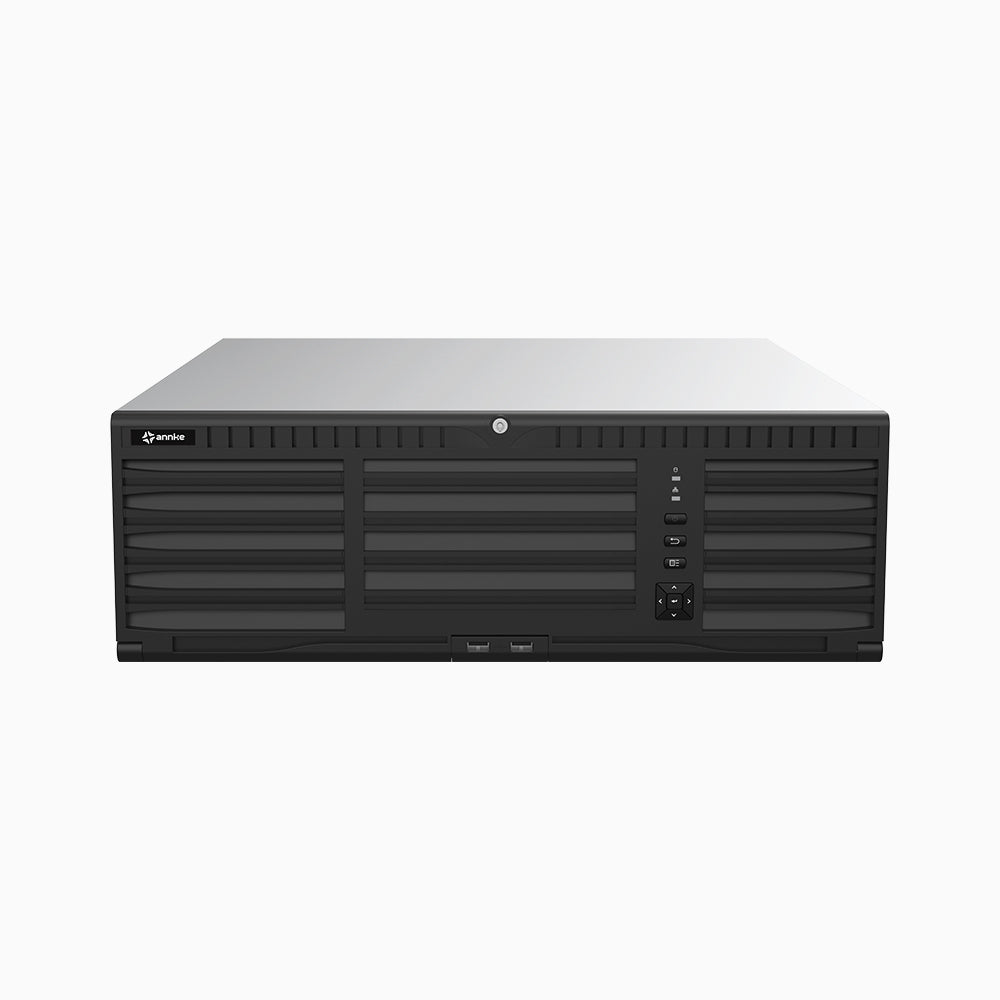

4K 256-Channel Non-PoE NVR Recorder, 32MP Resolution, 16 Hard Drive Bays, 768Mbps, 3U, 4 x NIC, Up to 160 TB Storage

SKU: N84SBN
$5,999.99
$7,999.99
$5,999.99
Subtotal: $5,999.99
4K 256-Channel Non-PoE NVR Recorder, 32MP Resolution, 16 Hard Drive Bays, 768Mbps, 3U, 4 x NIC, Up to 160 TB Storage

4K 256-Channel Non-PoE NVR Recorder, 32MP Resolution, 16 Hard Drive Bays, 768Mbps, 3U, 4 x NIC, Up to 160 TB Storage

$7,999.99 $5,999.99

4K 256-Channel Non-PoE NVR Recorder, 32MP Resolution, 16 Hard Drive Bays, 768Mbps, 3U, 4 x NIC, Up to 160 TB Storage

$7,999.99 $5,999.99

Up to 256 channel IP cameras can be connected.
Up to 768 Mbps high incoming bandwidth ensures IP cameras can be connected.
2 HDMI (different source) and 1 VGA interfaces.
16 HDD can be used for continuous video recording.
Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera.
Advanced streaming technology enables smooth live view in poor network conditions.
Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks.

Note: ANNKE NCD800 cameras can't be connected.

Specification

Download N84SBN Specification

Video And Audio IP Video Input 256-ch
Incoming Bandwidth (RAID Mode) 768 Mbps
Outgoing Bandwidth 768 Mbps
Incoming Bandwidth 768 Mbps
Outgoing Bandwidth (RAID Mode) 768 Mbps
TLS Outgoing Bandwidth 128 Mbps, or 64 Mbps (when RAID is enabled)
HDMI Output Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
VGA Output 1-ch. Resolution: 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
LCD Output Optional: One 7 inch LCD
Audio Output 1-ch. RCA (2.0 Vp-p, 1 KΩ)
Two-Way Audio 1-ch. RCA (2.0 Vp-p, 1 KΩ)
Decoding Decoding Format H.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only)
Recording Resolution 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF

*: 32 MP and 24 MP is only available for channel 1 to 4 when ultra HD resolution mode is enabled.
Synchronous Playback Up to 16 channels
Decoding Capability 1-ch@32 MP (8160 × 3616, 30 fps)/5-ch@8 MP(30 fps)/10-ch@4 MP(30 fps)/20-ch@1080p(30 fps)/40-ch@720p(30 fps)

*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
Network Network Protocol IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Camera Access Protocol HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO
Network Interface 4, RJ45 10M/100M/1000M self-adaptive Ethernet interface
RAID RAID Type RAID0, RAID1, RAID5, RAID 6, and RAID10
Auxiliary Interface SATA 16 SATA interfaces supporting hot-plug
ESATA 1 × eSATA interface
Mini SAS 2 × mini SAS interface (optional)
Capacity Up to 10 TB for each HDD
Serial Interface RS-232; RS-485; Keyboard
USB Interface Front Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0
Alarm In/Out 16/8
Extension Board One extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs.
General Power Supply 100 to 240 VAC, 50 to 60Hz, 5 A
Consumption ≤ 140W
Working Temperature 0 °C to + 50 °C (32 °F to 122 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 442 × 494 × 146 mm (17.4 × 19.4 × 5.7 inch)
Weight ≤ 16 kg (35.3 lb)
