ANNKE 16 Channel H.265+ 4K Ultra HD PoE NVR, Works with Alexa - ANNKE Store

4K 16 Channel H.265+ PoE NVR, Dual Hard Drive Bays, RTSP Supported, Works with Alexa

4K 16 Channel H.265+ PoE NVR, Dual Hard Drive Bays, RTSP Supported, Works with Alexa

$268.99

$335.99

SKU: AU-N46PCK000-V3

HDD Capacity
Add-on
Note: NC400 are now on 35% off DOTW sale with code DOTW02.

Secure Checkout With:

  • Tags: 16CH NVR , 4K 8MP

    16CH PoE IP Camera Input

    This PoE NVR is plug and play, easy to configure, access and control. You can connect all your PoE IP cameras to the NVR and manage them directly through their ethernet cables for ultimate ease and convenience in a home security system.

    Powerful NVR with Strong Compatibility

    This NVR is connectable to PoE IP cameras of up to 4K resolution. You’re allowed to take full advantage of your cameras and have full control over them.

    Connectable to IP Cameras Supporting H.265+

    IP cameras supporting H.265+/H.265/H.264+/H.264 coding formats are connectable to the NVR. After adding a camera supporting H.265+, you can enable it to maximize storage space and enjoy ultra-long recording, up to 7x longer than H.264 on normal conditions.

    Customizable Motion Detection

    You can mark out the relevant areas for motion detection to minimize false alerts and save storage space. Besides, if you don’t want others to view certain areas’ recordings, you can block out these areas on each camera to effectively.

    Smart Motion-Triggered Alerts

    Whenever motion detection is triggered in your customized areas, you will receive instant email alerts with snapshots and app alarm pushes even when you’re away. Thus, you can know whatever happens in your house and take appropriate precautions on time.

    Quick Remote Monitoring

    Consolidating your security system into your smartphone, tablet and PC can be quite simple with our free viewing app. Download “Annke Vision” on your mobile devices, quick scan the QR-code to add the system, then you can watch live video from anywhere in the world.

    4K Video Output to Display Ultra Clearness

    This surveillance NVR supports up to 4K video input/output. You can add 4K cameras to this NVR, then connect it to your exquisite 4K TV or monitor to display top-of-the-line megapixel quality. Now it is easier than ever to capture all the tiny details you need like license plates, faces, packages, etc.

    Save Time with Smart Search/Playback Function

    The smart search function allows you to mark out the specific area you need for playback. And the smart playback function can fast-forward or skip the still images and offer you the video with movements in your selected areas and period. While with the normal playback, you need to manually check the video with movements frame by frame.

    Perfectly Work with NVR

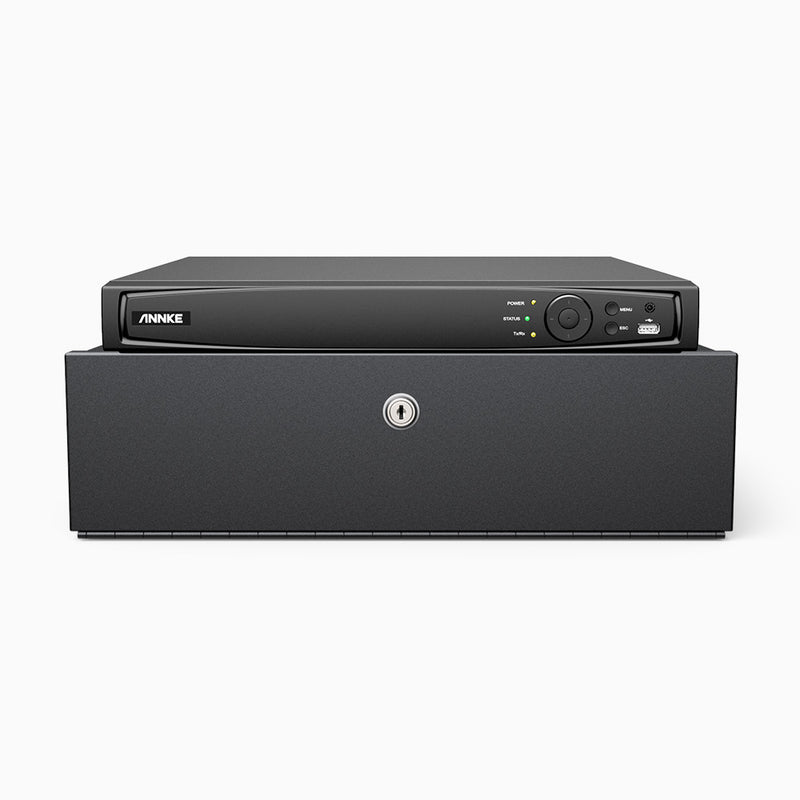

    The NVR lock box is designed to not just protect your valuables surveillance recorders, but to keep your switches, test equipment or patch cords safe from unauthorized users.
    Black, static-resistant powder coat finish withstands scratches, and abrasions and protects your sensitive electronics from damaging static electricity. The removable top panel facilitates additional access to equipment and wiring.
    The lock box allows for two mounting options. You can mount it on top surfaces or onto a wall with mounting brackets (not included).



    Specification

    Download ANNKE NVR Specification

    Video & Audio
    Video CompressionH.264+/H.264/H.265/H.265+/MPEG4 16CH POE
    Video OutputHDMI Up to 4K,VGA Up to 1080P Audio Input/Output1/1 RCA
    Incoming bandwidth80M Max Recording ResolutionUp to 8M(3840x2160)
    Max Playback ResolutionUp to 8M(3840x2160) Max Playback Channel8CH/ 16CH
    Max Playback Capacity4-ch@1080P, 1-ch@8MP
    Video CompressionH.264+/H.264/H.265/H.265+/MPEG4
    Video OutputHDMI Up to 4K,VGA Up to 1080P
    Incoming bandwidth80M
    Max Playback ResolutionUp to 8M(3840x2160)
    Max Playback Capacity4-ch@1080P, 1-ch@8MP
    IP Video Input 8CH/ 16CH POE
    Audio Input/Output 1/1 RCA
    Max Recording Resolution Up to 8M(3840x2160)
    16CH
    Hard Drive
    HDD CapacityUp to 8TB capacity for each HDD Network interfaceRJ45x1(10/100/1000M)
    HDD8CH: 1 SATA interface
    16CH: 2 SATA interface
    HDD CapacityUp to 6TB capacity for each HDD
    HDD8CH: 1 SATA interface
    16CH: 2 SATA interface
    Network interface RJ45x1(10/100/1000M)
    General
    POE8CH: 8 Ports(IEEE802.3at/af)
    16CH: 16 Ports(IEEE802.3at/af)
    Dimensions(W x H x D) 8CH: 12.4” x 9.4” x 1.9” / 315 x 240 x 48mm
    16CH: 15.2” x 12.4” x 2.0” / 385 x 315 x 52mm
    Alarm Input/Output- RS485-
    USB2x USB 2.0 Operating PowerDC48V
    Power Consumption ≤10 W(without HDD and POE)
    Operating Condition14 °F ~ 131 °F /-10 °C ~+55 °C Weight (without hard disk)8CH: 2.2lbs / 1KG" / 16CH: 6.6lbs / 3KG
    POE: Max 25.5W for single port-
    POE8CH: 8 Ports(IEEE802.3at/af)
    16CH: 16 Ports(IEEE802.3at/af)
    Alarm Input/Output-
    USB2x USB 2.0
    Power Consumption
    Operating Condition14 °F ~ 131 °F /-10 °C ~+55 °C
    POE: Max 25.5W for single port-
    Dimensions(W x H x D) 8CH: 12.4” x 9.4” x 1.9” / 315 x 240 x 48mm
    16CH: 15.2” x 12.4” x 2.0” / 385 x 315 x 52mm
    RS485 -
    Operating Power DC48V
    ≤10 W(without HDD and POE)
    Weight (without hard disk) 8CH: 2.2lbs / 1KG" / 16CH: 6.6lbs / 3KG
