ANNKE AH500 3K 8 Channel 2 Camera PoE Dual Light Security System - ANNKE Store

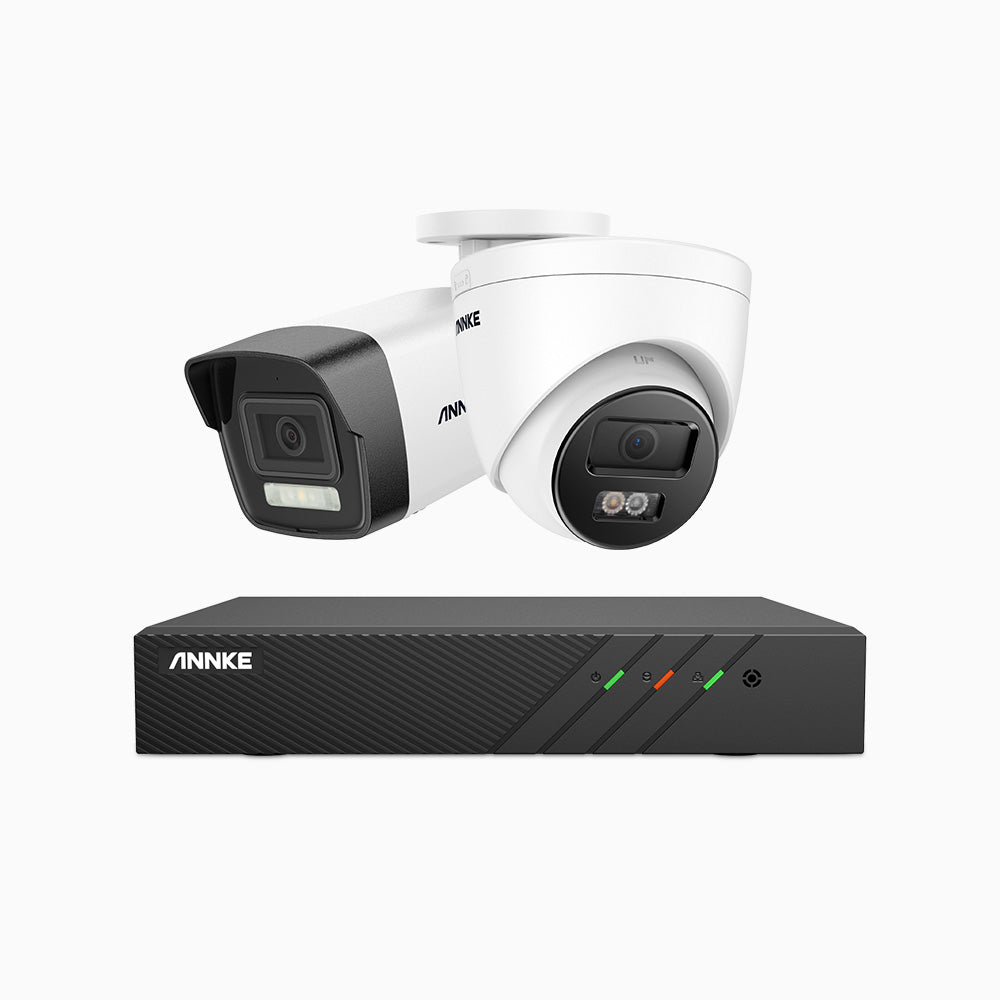

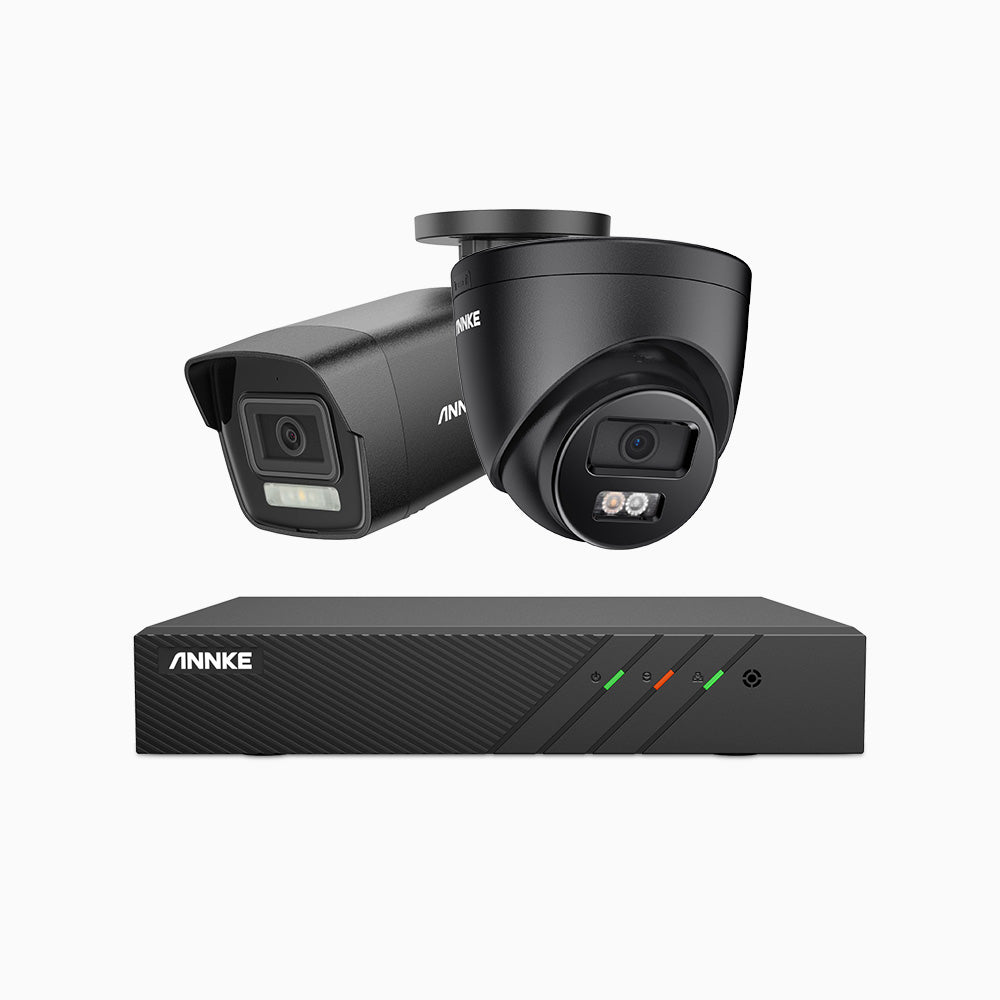

AH500 - 3K 8 Channel PoE Security System with 1 Bullet & 1 Turret Cameras, Color & IR Night Vision, 3072*1728 Resolution, f/1.6 Aperture (0.005 Lux), Human & Vehicle Detection, Built-in Microphone,IP67

AH500 - 3K 8 Channel PoE Security System with 1 Bullet & 1 Turret Cameras, Color & IR Night Vision, 3072*1728 Resolution, f/1.6 Aperture (0.005 Lux), Human & Vehicle Detection, Built-in Microphone,IP67

$215.99

$269.99

SKU: N48PBB+I51EL*1+I51EM*1

Note: C800 Turret (1-cam) is now on 30% off DOTW sale
Color
HDD Capacity
Note: NC400 are now on 35% off DOTW sale with code DOTW02.

Secure Checkout With:

  • Tags: 2 , 3K , 8CH NVR , Built-in Microphone , Bullet , Color Night Vision , Dual Lights Night Vision , EXIR Night Vision , Turret

    AH500

    Flexible Switching between Color and
    IR to Active Deterrence

  • 3K

    True Super HD
    See Further & Clearer

  • Dual Light

    IR Night Vision
    White Light

  • 2.8 MM

    116° FOV
    Wide Coverage

  • Built-in Mic

    Pickup Sound
    Record Audio

  • Capture Clear Night Detail by Smart Dual Light

    Default smart dual light mode in night, the camera can clearly find the target at night by infrared light, If there is a moving target, the white light will start, infrared off, so as to obtain a clear color image. In addition, you can also choose full infrared or full white light mode. Infrared fill light is up to 30 m, up to 20 m white light distance for bright night imaging.

    Ultra-clear Video in 3K with 16:9 Image Scale

    With 1/3" Progressive Scan BSI CMOS sensor, this camera can deliver amazing 3K (3072x1728@20fps) videos with all the subtle details that are true to life. 16:9 aspect ratio effect is better than traditional 4:3, more suitable for mainstream display ratio.

    Smart Human & Vehicle Detection, Brings 99% Accurate Alerts

    Using an intelligent algorithm based on a deep learning platform, the motion detection 2.0 camera will detect people and vehicle, which helps reduce 99% unwanted motion alerts triggered by animals, or random inanimate objects.

    H.265+/H.265 to Save Storage Space

    The new generation of H.265+/H.265 video coding technology can save bandwidth while providing clear and delicate images. H.265 videos require only 50% of the storage space required for traditional H.264 videos at the same pixel and data rate, so you save half the storage space.

    Wide Viewing Angle to Cover More

    A carefully crafted 2.8mm fixed lens with a max aperture of F1.6 generates striking visuals owing to the 116° viewing angle. With such a wide field of view you will have no problem keeping what you care about in your sights.

    4 Top-of-the-Line Image Enhancement Technologies

    The IP camera adopts 4 incredible image enhancement technologies – 120 dB true WDR, 3D DNR, BLC & HLC – to provide the splendid 3K Super HD clarity. So, whether you view the live stream by day or by moonlight, you’ll get a new level of details and colors that wasn’t possible before.

    IP67 Weatherproof – Built for Extreme Weather

    IP67 rated, this weatherproof security cameras can endure anything from torrential downpours to freezing snowstorms. Not only does it ensure protection against ingress of dust and moisture, it can also withstand extreme cold or heat, continuing to operate in temperatures as low as –30 °C / –22 °F and as high as 60 °C / 140 °F.

  • Metal & Plastic

    Rugged Housing

  • -22 °F | -30 °C

    Cold Rating

  • 140 °F | 60 °C

    Heat Rating

  • IP67

    Water Rating

  • Small on Prices, Big on Features

  • Support Local
    Storage

    Record videos onto your micro SD/SDHC/SDXC card slot, up to 256 GB.

  • PoE & DC 12V
    Power Supply

    Power on the camera via PoE with an NVR/PoE injector, or plug it into an outlet for the power supply.

  • ROI
    Setting

    Support setting the area of interest, the specific area is clearer.

  • Built-in
    Microphone

    Support filter the environment noise, and record videos with vivid sound.

  • Remote Access
    & Control

    Stay tuned with your home or business all the time by ANNKE Vision APP or Client.

  • Set What
    You Want

    Freely adjust the parameters, brightness, contrast, scene mode, etc. through the webpage or client.

  • Specification

    Download AC500 Specification

    What's in the Box
  • 2 X Cameras
  • 1 X Ethernet Cable
  • 1 X Mounting Screws Bag
  • 1 X User manual
  • Camera
    Image Sensor1/3" Progressive Scan CMOS Max resolution3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
    Main Stream50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
    60 Hz:  20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)
    Substream50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
    60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)
    Video Bitrate32 Kbps - 6 Mbps Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    Audio InputBuilt-in Microphone, record with audio Lens2.8 mm
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Supplement Light TypeSmart Dual-Light, IR, White Light
    Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Angle of ViewHorizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°/td>
    Supplement Light RangeIR: up to 30 m, wite Light: up to 20 m Motion detection 2.0Supoort, include Human & Vehicle detection
    Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP APIOpen Network Video Interface Version 18.12
    Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
    General FunctionMirror,rotate,password protection, remote access Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
    Image Sensor1/3" Progressive Scan CMOS
    Main Stream50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
    60 Hz:  20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)
    Video Bitrate32 Kbps - 6 Mbps
    Audio InputBuilt-in Microphone, record with audio
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
    Supplement Light RangeIR: up to 30 m, wite Light: up to 20 m
    Image EnhancementBLC, HLC, 3D DNR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
    Region of Interest (ROI)1 fixed region for main stream
    General FunctionMirror,rotate,password protection, remote access
    Max resolution 3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
    Substream 50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
    60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)
    Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    Lens 2.8 mm
    Supplement Light Type Smart Dual-Light, IR, White Light
    Angle of View Horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°/td>
    Motion detection 2.0 Supoort, include Human & Vehicle detection
    Wide Dynamic Range 120 dB WDR
    API Open Network Video Interface Version 18.12
    Privacy Mask 4 programmable polygon privacy masks
    Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
    General
    HousingMetal & Plastic ColorWhite & Black
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
    Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C Indoor/Outdoor UseIndoor/Outdoor
    Interface ProtectionIP67 Dimension (L X W X H)170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
    Weight0.6 lb./270 g
    HousingMetal & Plastic
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB
    Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Interface ProtectionIP67
    Weight0.6 lb./270 g
    Color White & Black
    Operating Power DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
    Indoor/Outdoor Use Indoor/Outdoor
    Dimension (L X W X H) 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
