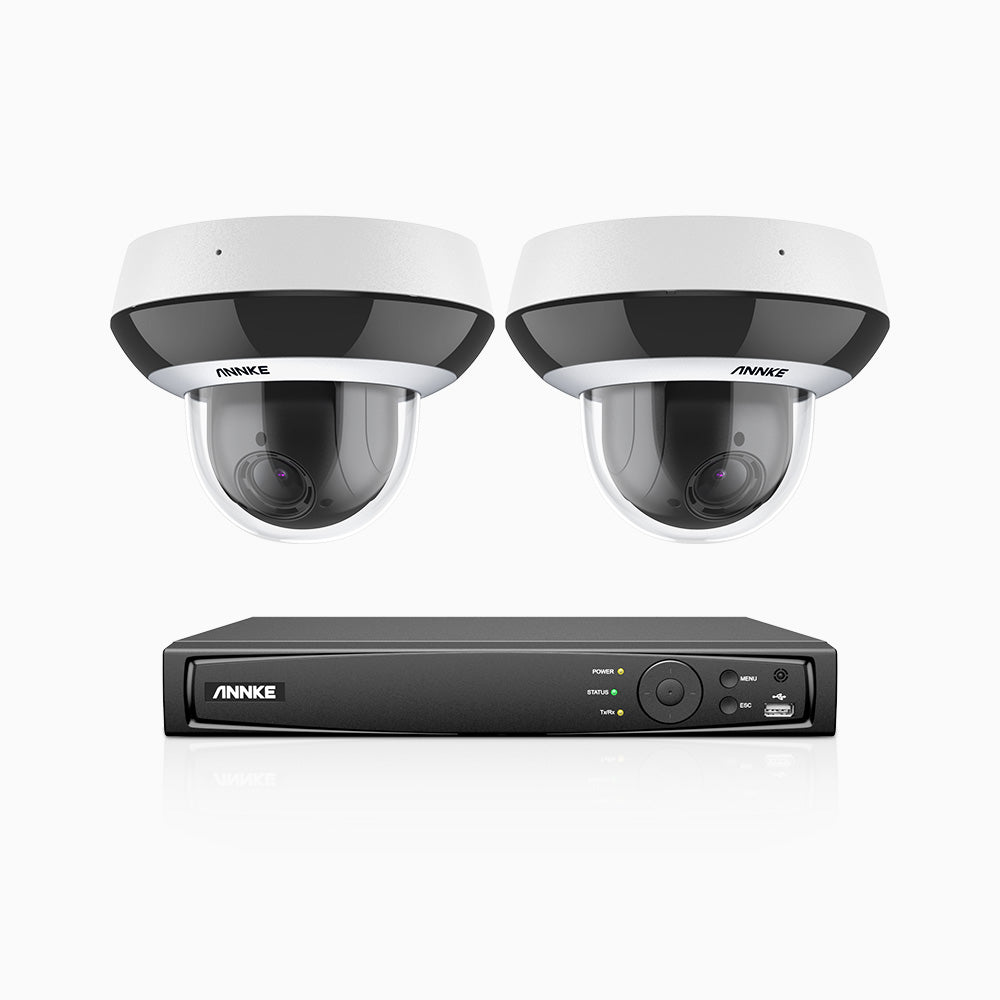

HCZ504 - 8 Channel 2 Cameras PTZ PoE Security System, 3K Super HD, 4X Optical Zoom, IK10 Vandal-Resistant, 2.8-12 mm Lens, Intelligent Behavior Analysis, Color Night Vision & Anti-Fog

SKU: N48PAW+I91BK*2
$482.99
$679.99
$482.99
HDD Capacity: NO HDD
Subtotal: $482.99
HCZ504 - 8 Channel 2 Cameras PTZ PoE Security System, 3K Super HD, 4X Optical Zoom, IK10 Vandal-Resistant, 2.8-12 mm Lens, Intelligent Behavior Analysis, Color Night Vision & Anti-Fog

HCZ504 - 8 Channel 2 Cameras PTZ PoE Security System, 3K Super HD, 4X Optical Zoom, IK10 Vandal-Resistant, 2.8-12 mm Lens, Intelligent Behavior Analysis, Color Night Vision & Anti-Fog

$679.99 $482.99

HCZ504 - 8 Channel 2 Cameras PTZ PoE Security System, 3K Super HD, 4X Optical Zoom, IK10 Vandal-Resistant, 2.8-12 mm Lens, Intelligent Behavior Analysis, Color Night Vision & Anti-Fog

$679.99 $482.99
HDD Capacity: NO HDD

ANNKE HCZ504

Double 4. Double Clarity.
Unlimited Protection

Unparalleled 3K Super HD & Color Night Vision

Armed with 3K OmniVision sensor, the PTZ camera provides incredible 3K super HD video quality. 4 advanced image enhancement technologies of 3D DNR, HLC, EIS and 120 dB true WDR improve clarity to a new level.

Footages of colorful night vision are enabled even with ambient lighting of minimum 0.005 Lux, capturing everything in nocturnal times with rich colors up the 65 ft/20 m away.

Double Protection in Vandal-Proof & Anti-fog

Our rugged dome security camera boasts an IK10 vandal-proof rating, capable of withstanding up to 20 joules of impact. Constructed from durable metal and ABS materials supplied by SABIC, it ensures both self-protection and property security.

Additionally, the innovative anti-fog function delivers crystal-clear vision in humid or fluctuating temperatures, making it ideal for challenging environments.

Smartest AI Human Recognition & 7 Detection Ways

The PoE camera, with the industry-leading AI algorithm, is able to distinguish people from non-human beings, and send you accurate human-based alerts. Cut down the hassle of false alerts.
7 intelligent detection ways – line crossing, intrusion, region entrance/exit, unattended baggage, object removal & audio exception detection – alert you only when it matters.

Covers All Under 330° Pan & 90° Tilt Viewing

Up to 330° Pan & 90° Tilt angle of view allows the camera to cover ultra-wide areas in your home, garage, or yards. No blind spots and special movements will slip through the notice of the PoE PTZ camera.

4X Optical Zoom with Auto Focus

The 2.8-12 mm motorized lens enables you to zoom in on the distant & small objects far away to find out the details you want, without manual adjustment. View license plates and face details clearly even from 100 ft away.

Advanced H.265+ Video Format

ANNKE H.265+ coding helps the camera record longer videos and consumes less bandwidth. Save your budget on buying more HDDs.

IP66 Weatherproof – Extreme Weather Capabilities

IP66 rated, the camera is fully weatherproof & can be immersed in 1 m of water for 30 mins. It continues to operate in extreme temperatures as low as -4 °F (-20 °C). Torrential downpours, heavy winds, freezing snowstorms, the camera braves them all.

  • Metal & ABS

    Rugged Housing

  • -4 °F | -20 °C

    Cold Rating

  • 140 °F | 60 °C

    Heat Rating

  • IP66

    Water Rating

  • Small on Prices, Big on Features

  • PoE or DC Power

    Power on the camera via PoE with an NVR/PoE injector, or plug it to an outlet for power supply.

  • Local Storage

    Supports up to 256 GB TF card (not included) for local video storage without monthly cloud fees.

  • Customized Motion Areas

    Customize the specific motion zones, like garage, front door, etc. for much more relevant motion alerts.

  • Motion Alerts & Remote Access

    Receive instant app pushes & email alerts when there are motion events. Control the camera remotely with smart devices.

  • Download CZ504 Specification

    Download ANNKE NVR Specification

    Camera
    Image Sensor1/2.8"  Progressive Scan CMOS Video Bit Rate256 Kbps - 16384 kbps
    Sub-stream50 Hz: 25 fps (704*480,640*480, 352*240)
    60 Hz: 30 fps (704*480,640*480, 352*240)
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Third stream: H.265/H.264/MJPEG
    Max resolution3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    Main Stream50 Hz: 15 fps (3072*1728), 25 fps ( 1920*1080,  1280*960, 1280*720)
    60 Hz:  15 fps (3072*1728), 30 fps ( 1920*1080,  1280*960, 1280*720)
    Third stream50 Hz: 25 fps (1920*1080,  1280*960, 1280*720, 704*480, 640*480, 640*360)
    60 Hz: 30 fps  (1920*1080,  1280*960, 1280*720, 704*480, 640*480, 640*360)
    Audio Bit rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/16Kbps(AAC) Audio Sampling RateAAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32kHz, 64 kHz
    Lens2.8-12 mm, 4x optical zoom, 16x digital Zoom Shutter Speed1/1 s to 1/30,000 s
    Slow ShutterYes PT Movement RangePAN: 0° to 355°,Tilt: From 0° to 90°
    Min. IlluminationColor: 0.005 lux @ (ƒ/1.5, AGC on), b/w: 0.001 lux @ (ƒ/1.5, AGC on), 0 lux with IR Angle of ViewHorizontal FOV 96.7° to 31.6°, vertical FOV 51.1° to 17.7°, diagonal FOV 115.1° to 36.3°
    PT SpeedConfigurable, from 0.1°/s to 100°/s, preset speed: 100°/s Number of Infrared LEDs4 pcs
    Night Vision DistanceUp to 65 ft/20 m Wide Dynamic Range120 dB True WDR
    Image Enhancement3D DNR, HLC, EIS, regional exposure, regional focus, digital defog ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE,
    APIOpen Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISUP Region of Interest (ROI)8 fixed regions for each stream
    Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable Basic EventMotion detection, video tampering alarm, exception
    Smart EventFace detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection AudioBuild in mic, and support 1-ch audio input and 1-ch audio output
    Ethernet1 RJ45 10M/100M self-adaptive Ethernet port Power Output12 VDC, max. 60 mA
    Image Sensor1/2.8"  Progressive Scan CMOS
    Sub-stream50 Hz: 25 fps (704*480,640*480, 352*240)
    60 Hz: 30 fps (704*480,640*480, 352*240)
    Max resolution3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
    Main Stream50 Hz: 15 fps (3072*1728), 25 fps ( 1920*1080,  1280*960, 1280*720)
    60 Hz:  15 fps (3072*1728), 30 fps ( 1920*1080,  1280*960, 1280*720)
    Audio Bit rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/16Kbps(AAC)
    Lens2.8-12 mm, 4x optical zoom, 16x digital Zoom
    Slow ShutterYes
    Min. IlluminationColor: 0.005 lux @ (ƒ/1.5, AGC on), b/w: 0.001 lux @ (ƒ/1.5, AGC on), 0 lux with IR
    PT SpeedConfigurable, from 0.1°/s to 100°/s, preset speed: 100°/s
    Night Vision DistanceUp to 65 ft/20 m
    Image Enhancement3D DNR, HLC, EIS, regional exposure, regional focus, digital defog
    APIOpen Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISUP
    Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
    Smart EventFace detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
    Ethernet1 RJ45 10M/100M self-adaptive Ethernet port
    Video Bit Rate 256 Kbps - 16384 kbps
    Video Compression Main stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Third stream: H.265/H.264/MJPEG
    Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    Third stream 50 Hz: 25 fps (1920*1080,  1280*960, 1280*720, 704*480, 640*480, 640*360)
    60 Hz: 30 fps  (1920*1080,  1280*960, 1280*720, 704*480, 640*480, 640*360)
    Audio Sampling Rate AAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32kHz, 64 kHz
    Shutter Speed 1/1 s to 1/30,000 s
    PT Movement Range PAN: 0° to 355°,Tilt: From 0° to 90°
    Angle of View Horizontal FOV 96.7° to 31.6°, vertical FOV 51.1° to 17.7°, diagonal FOV 115.1° to 36.3°
    Number of Infrared LEDs 4 pcs
    Wide Dynamic Range 120 dB True WDR
    Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE,
    Region of Interest (ROI) 8 fixed regions for each stream
    Basic Event Motion detection, video tampering alarm, exception
    Audio Build in mic, and support 1-ch audio input and 1-ch audio output
    Power Output 12 VDC, max. 60 mA
    General
    MaterialAluminum alloy, PC, PC + ABS ColorWhite & Black
    Operating Power12 VDC, Max. 9.2 W; PoE (802.3af) StorageSupport MicroSD Card (up to 256 GB) and NAS(NFS, SMB/CIFS
    Operating Temperature-4° to 140° F (-20° to 60° C) Indoor/OutdoorIndoor/Outdoor
    Protection LevelIP66, IK10, TVS 4000V lightning protection, surge protection, and voltage transient protection DimensionØ 5.15" x 4.00" (Ø 130.7 mm × 101.7 mm)
    WeightApproximately 1.17 lbs (0.53 kg)
    MaterialAluminum alloy, PC, PC + ABS
    Operating Power12 VDC, Max. 9.2 W; PoE (802.3af)
    Operating Temperature-4° to 140° F (-20° to 60° C)
    Protection LevelIP66, IK10, TVS 4000V lightning protection, surge protection, and voltage transient protection
    WeightApproximately 1.17 lbs (0.53 kg)
    Color White & Black
    Storage Support MicroSD Card (up to 256 GB) and NAS(NFS, SMB/CIFS
    Indoor/Outdoor Indoor/Outdoor
    Dimension Ø 5.15" x 4.00" (Ø 130.7 mm × 101.7 mm)
