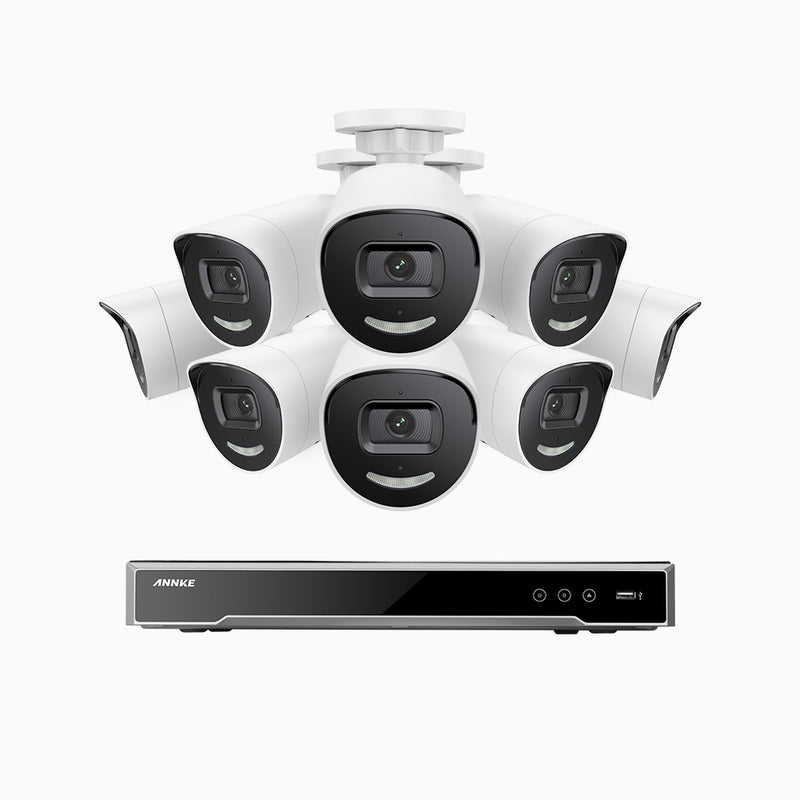

AH800 - 4K 8 Channel 8 Cameras PoE Security System, 1/1.8'' BSI Sensor, f/1.6 Aperture (0.003 Lux), Siren & Strobe Alarm,Two-Way Audio, Human & Vehicle Detection, Perimeter Protection, Works with Alexa

AH800 - 4K 8 Channel 8 Cameras PoE Security System, 1/1.8'' BSI Sensor, f/1.6 Aperture (0.003 Lux), Siren & Strobe Alarm,Two-Way Audio, Human & Vehicle Detection, Perimeter Protection, Works with Alexa

$1,504.99

$1,899.99

SKU: N88PCH+I91BY*8

Note: C800 Turret (1-cam) is now on 30% off DOTW sale
Appearance
HDD Capacity
Note: NC400 are now on 35% off DOTW sale with code DOTW02.

Secure Checkout With:

  • Tags: 4K 8MP , 8 , 8CH NVR , Built-in Microphone , Bullet , Color Night Vision , Dual Lights Night Vision , EXIR Night Vision , Light & Sound Deterrence , Turret , Two-Way Audio

    AH800 - Upgraded 4K PoE system

    AI Tech, Active Alarm, Alexa
    Making the Ace-High 4K Camera System

  • 4K

    True Ultra HD
    3180 x 2160 @25fps

  • AI

    Perimeter Protection
    Human & Vehicle Detection

  • Dual

    Two-Way Audio
    To Hear and Speak

  • Alarm

    Strobe & Siren
    Active Deterrence

  • An Unrivaled 4K Ultra HD at 25 fps Clarity

    The 1/1.8’’ mm BSI sensor, with an f/1.6 large aperture that had been adjusted by professional engineers hundreds of times, covers up to 134° diagonal FoV, and delivers and smoother best-ever 4K Ultra HD (3840 x 2160@25fps) footage in all environments.

    Face Capture & Vehicle Detection, Make Smart Home Smarter

    Smart human & vehicle detection, a huge leap in smart detection, enables the camera to give off alarms only when a person or vehicle is detected. Which cuts down most unwanted alerts triggered by passing pets, birds, insects, or inanimate things, like waving branches, raindrops, etc.
    Face detection will add more actionable information to the surveillance alerts. A face capture lets you know that it is a person who is approaching your property to keep you alerted, while avoiding the violation of privacy.

    Active Deterrence with Strobe & Spotlight Alarms

    The  AI camera can trigger the alarm varying from the detected object, a human, a vehicle, or other object based on the deep-learning algorithm.
    Built-in motion-triggered spotlight and strobe alarms provide the camera with a new level of defense to your property. The alarms will be triggered when whenever potential intruders are detected. Always deter intrusions before your action.

    Revolutionary 7 Smart Motions & Events Analysis

    Empowered by the industry-leading perimeter protection algorithm, the PoE camera is capable of distinguishing different human behavioral modes, and sending you human-based alerts within seconds.

  • Line Crossing Detection

  • Human Motion Detection

  • Vehicle Motion Detection

  • Face Capture

  • Intrusion Detection

  • Line Crossing Event

  • Region Entrance Event

  • Region Existing Event

  • Upgraded EXIR 3.0 & 100 ft Color Night Vision

    The camera, with a large f/1.6 aperture allowing for more lighting, delivers colorful night vision in ultra-dark conditions at min. 0.003 Lux. Never be bothered by the obtrusive black and white pictures anymore!
    EXIR 3.0 provides fast heat dissipation for a long lifespan, improves the utilization of light greatly, and keeps the spiders & insects away from the lens. It also removes the IR reflection, ensuring up to 100 ft night vision distance.

    4 World-Class Image Enhancement Tech

    Adopting 4 incredible image enhancement algorithms – 120 dB true WDR, 3D DNR, BLC & HLC – the 4K PoE camera provides further clarity to show all the details. So, whether you view the live stream by day, night, or under complicated lighting conditions, you’ll get a new level of details and colors that wasn’t possible before.

    Designed to Brave All the Severe & Extreme Climates

    IP67 rated, the powerful weatherproof camera, is built for extreme indoor & outdoor use from -22 °F/-30 °C to 140 °F/60 °C. The camera still works perfectly to produce 4K videos even in water at depth of 1 meter.

    Made from the same heavy-duty aluminum used in the construction of airplanes, the camera housing can withstand large impacts and is highly resistant to corrosion.

  • Metal

    Rugged Housing

  • 140 °F | 60 °C

    Hot Rating

  • -22 °F | -30 °C

    Cold Rating

  • IP67

    Water Rating

  • Work with ANNKE NVRs for 24/7 Record

    This IP video camera can work standalone for your unlimited live stream. You can also connect the camera to an ANNKE Upgraded 4K PoE NVR with just a single Ethernet cable for 24/7 record.

    Noise-Cancelling Audio

    The built-in noise-canceling microphone can filter the environment noise automatically, and pick up the voice from up to 20 ft away.

    Listen-in Audio

    Audio recording enhances the security coverage and the ability to interpret events. Record videos with vivid sound instead of silent footage.

    Mute Function

    Audio record might be regulated based on your location. If the audio surveillance is not allowed or you don’t want audio record, simply mute it.

    Small on Prices, Big on Features

  • Works with Alexa

    Get fast & easy access to the camera with Alexa hands-free voice control. Give your voice commands to access the live stream directly.

  • Advanced H.265+ coding

    H.265+ coding helps the camera record longer videos and consumes less bandwidth. Save your budget on buying more HDDs.

  • PoE or DC Power

    Power on the camera via PoE with an NVR/PoE injector, or plug it into an outlet for the power supply.

  • Unlimited Remote Access

    Easily access your system via the intuitive ANNKE Vision App from virtually anywhere in the world.

  • Customized Motion Areas

    Customize the specific motion zones, like garage, front door, etc. for much more relevant motion alerts.

  • Support RTSP

    Integrate the camera to third-party software, like Blue Iris, Synology, etc.

  • Specification

    Download AC800 Specification

    Camera
    Image Sensor1/1.8" Progressive Scan CMOS Video CompressionH.265+/H.265/H.264+/H.264
    Video Resolution50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 24 fps (3840 × 2160)
    30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Sub Stream50 Hz: 25 fps (640 × 480, 640 × 360)
    60 Hz: 30 fps (640 × 480, 640 × 360)
    Video Bitrate32 Kbps ~ 16 Mbps Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
    Audio Input/Output1X Built-in Microphone; 1X built-in Speaker Environment Noise FilteringYes
    Lens2.8 mm Min. Illumination0.003 Lux@(F2.0, AGC On)
    Angle of ViewHorizontal FOV: 110°, Vertical FOV: 57°, Diagonal FOV: 134° Number of Infrared LEDs2 pcs
    Night Vision DistanceUp to 100 ft/30 m DNR3D DNR
    Wide Dynamic Range120 dB WDR Network StorageLocal Storage & NAS (NFS, SMB/CIFS)
    ONVIFSupport Day/Night SwitchDay, Night, Auto, Schedule
    EthernetRJ45 X1 (10 M/100 M)
    Image Sensor1/1.8" Progressive Scan CMOS
    Video Resolution50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 24 fps (3840 × 2160)
    30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Video Bitrate32 Kbps ~ 16 Mbps
    Audio Input/Output1X Built-in Microphone; 1X built-in Speaker
    Lens2.8 mm
    Angle of ViewHorizontal FOV: 110°, Vertical FOV: 57°, Diagonal FOV: 134°
    Night Vision DistanceUp to 100 ft/30 m
    Wide Dynamic Range120 dB WDR
    ONVIFSupport
    EthernetRJ45 X1 (10 M/100 M)
    Video Compression H.265+/H.265/H.264+/H.264
    Sub Stream 50 Hz: 25 fps (640 × 480, 640 × 360)
    60 Hz: 30 fps (640 × 480, 640 × 360)
    Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
    Environment Noise Filtering Yes
    Min. Illumination 0.003 Lux@(F2.0, AGC On)
    Number of Infrared LEDs 2 pcs
    DNR 3D DNR
    Network Storage Local Storage & NAS (NFS, SMB/CIFS)
    Day/Night Switch Day, Night, Auto, Schedule
    General
    HousingPlastic & Metal ColorWhite
    Operating PowerPoE (802.3af), 12 V DC ± 25% StorageBuilt-in MicroSD/SDHC/SDXC Slot, up to 256 GB
    Hardware ResetYes Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/OutdoorIndoor/Outdoor Weatherproof RatingIP67
    Dimension (L X W X H)72.9 mm X 73.3 mm X 191.1 mm (2.9" X 2.9" X 7.5") WeightApprox. 595 g (1.3 lbs.)
    HousingPlastic & Metal
    Operating PowerPoE (802.3af), 12 V DC ± 25%
    Hardware ResetYes
    Indoor/OutdoorIndoor/Outdoor
    Dimension (L X W X H)72.9 mm X 73.3 mm X 191.1 mm (2.9" X 2.9" X 7.5")
    Color White
    Storage Built-in MicroSD/SDHC/SDXC Slot, up to 256 GB
    Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
    Weatherproof Rating IP67
    Weight Approx. 595 g (1.3 lbs.)
    Camera
    Image Sensor1/1.8" Progressive Scan CMOS Video CompressionH.265+/H.265/H.264+/H.264
    Video Resolution50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 24 fps (3840 × 2160)
    30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Sub Stream50 Hz: 25 fps (640 × 480, 640 × 360)
    60 Hz: 30 fps (640 × 480, 640 × 360)
    Video Bitrate32 Kbps ~ 16 Mbps Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
    Audio Input/Output1X Built-in Microphone; 1X Built-in Speaker Environment Noise FilteringYes
    Lens2.8 mm Min. Illumination0.003 Lux@(F2.0, AGC On)
    Angle of ViewHorizontal FOV: 111°; Vertical FOV: 59°; Diagonal FOV; 134° Number of Infrared LEDs2 pcs
    Night Vision DistanceUp to 100 ft/30 m DNR3D DNR
    Wide Dynamic Range120 dB WDR Network StorageLocal Storage & NAS (NFS, SMB/CIFS)
    ONVIFSupport) EthernetRJ45 X1 (10 M/100 M)
    Image Sensor1/1.8" Progressive Scan CMOS
    Video Resolution50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 24 fps (3840 × 2160)
    30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Video Bitrate32 Kbps ~ 16 Mbps
    Audio Input/Output1X Built-in Microphone; 1X Built-in Speaker
    Lens2.8 mm
    Angle of ViewHorizontal FOV: 111°; Vertical FOV: 59°; Diagonal FOV; 134°
    Night Vision DistanceUp to 100 ft/30 m
    Wide Dynamic Range120 dB WDR
    ONVIFSupport)
    Video Compression H.265+/H.265/H.264+/H.264
    Sub Stream 50 Hz: 25 fps (640 × 480, 640 × 360)
    60 Hz: 30 fps (640 × 480, 640 × 360)
    Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
    Environment Noise Filtering Yes
    Min. Illumination 0.003 Lux@(F2.0, AGC On)
    Number of Infrared LEDs 2 pcs
    DNR 3D DNR
    Network Storage Local Storage & NAS (NFS, SMB/CIFS)
    Ethernet RJ45 X1 (10 M/100 M)
    General
    HousingPlastic & Metal Operating PowerPoE (802.3af), 12 V DC ± 25%
    StorageBuilt-in MicroSD/SDHC/SDXC Slot, up to 256 GB Hardware ResetYes
    Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C Indoor/OutdoorIndoor/Outdoor
    Weatherproof RatingIP67 Hardware ResetYes
    Dimension (L X W X H)Ø 138.3 mm X 124.5 mm (Ø 5.4" X 4.9") WeightApprox. 840 g (1.9 lbs.)
    HousingPlastic & Metal
    StorageBuilt-in MicroSD/SDHC/SDXC Slot, up to 256 GB
    Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Weatherproof RatingIP67
    Dimension (L X W X H)Ø 138.3 mm X 124.5 mm (Ø 5.4" X 4.9")
    Operating Power PoE (802.3af), 12 V DC ± 25%
    Hardware Reset Yes
    Indoor/Outdoor Indoor/Outdoor
    Hardware Reset Yes
    Weight Approx. 840 g (1.9 lbs.)
